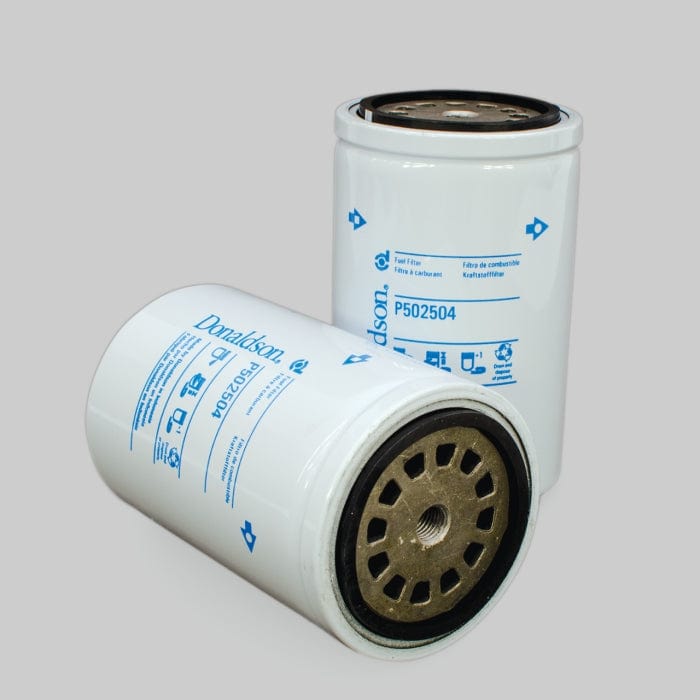

Fuel Filter, Spin-On - Donaldson P502504
Fuel Filter, Spin-On - Donaldson P502504
Regular price
£29.20
Regular price
Sale price
£29.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502504
Fuel Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 86 mm (3.39 inch)
- Thread Size: M12 x 1.5
- Length: 143 mm (5.63 inch)
- Efficiency Beta 75: 4 micron
- Efficiency Test Std: ISO 4548-12
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.089 m (3.54 inch)
- Packaged Width: 0.089 m (3.54 inch)
- Packaged Height: 0.148 m (5.91 inch)
- Packaged Weight: 0.572 kg (1.26 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330964880
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 525517D1 | |
| CATERPILLAR | 3460523 | |
| CATERPILLAR | 2719385 | |
| CATERPILLAR | 2998229 | |
| CLAAS | 5300560 | |
| DIECI | BHC5055 | |
| FG WILSON | 1000012854 | |
| MANITOU | 747351 | |
| MASSEY FERGUSON | 4226599M1 | |
| PERKINS | 2656F843 | |
| SANDVIK | EN1015 | |
| TERBERG | T28042012 | |
| VOEGELE | 2081071 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO XAVS 237 | 2009 | COMPRESSOR | - | CATERPILLAR C6.6 | - |
| CATERPILLAR 120M | - | GRADER | 120 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 12M | - | GRADER | 12 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 420E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 420E | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 420E IT | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 430E | - | BACKHOE LOADER | - | CATERPILLAR C4.4T | - |
| CATERPILLAR 450E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR C4.4TA ACERT | - |
| CATERPILLAR 924H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 924HZ | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 928H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR 928HZ | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 930H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 938H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 953D | - | LOADER TRACKED | 900 SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR 963D | - | LOADER TRACKED | 900 SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR AP500E | - | PAVER | AP SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR AP555E | - | PAVER | AP SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR AP600D | - | PAVER | AP SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR AP655D | - | PAVER | AP SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR BG555E | - | PAVER | BG SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR BG600D | - | PAVER | BG SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR BG655D | - | PAVER | BG SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CP54 | - | COMPACTOR | CP SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR CP56 | - | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CP64 | - | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CP74 | - | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CP76 | - | COMPACTOR | CP SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CS54 | - | COMPACTOR | CS SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR CS56 | - | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CS64 | - | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CS74 | - | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR CS76 | - | COMPACTOR | CS SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D3K | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D4K LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D4K XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D5K | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C4.4 ACERT | - |
| CATERPILLAR D6K LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6K XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR IT38H | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 6.6 ACERT | - |
| CATERPILLAR M313D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C4.4TA ACERT | - |
| CATERPILLAR M315D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C4.4TA ACERT | - |
| CATERPILLAR M316D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR M318D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR M322D | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR TH406 | - | TELEHANDLER | TH SERIES | CATERPILLAR C4.4 DITAAC | - |
| CLAAS AVERO 160 | - | COMBINE | AVERO | CATERPILLAR C6.6 | - |
| CLAAS AVERO 240 | - | COMBINE | AVERO | CATERPILLAR C6.6 | - |
| CLAAS LEXION 510 | - | COMBINE | LEXION | CATERPILLAR C6.6 | TIER 3 |
| CLAAS LEXION 520 | - | COMBINE | LEXION | CATERPILLAR C6.6 | TIER 3 |
| CLAAS LEXION 520 MONTANA | - | COMBINE | LEXION | CATERPILLAR C6.6 | TIER 3 |
| CLAAS LEXION 540C | - | COMBINE | LEXION | CATERPILLAR C6.6 | TIER 3 |
| CLAAS LEXION 620 | - | COMBINE | LEXION | CATERPILLAR C6.6 | - |
| CLAAS LEXION 640 | - | COMBINE | LEXION | CATERPILLAR C6.6 | - |
| MANITOU MLT 634 -120 LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104 D-E44TA | - |
| MANITOU MLT 634 -120 LSU POWERSHIFT | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104 D-E44TA | - |
| MANITOU MLT 735 -120 LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104 D-E44TA | - |
| MANITOU MLT 735 -120 LSU POWERSHIFT | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104 D-E44TA | - |
| MANITOU MLT 741 -120 LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104 D-E44TA | - |
| MANITOU MLT 741 -120 LSU POWERSHIFT | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104 D-E44TA | - |
| MASSEY FERGUSON MF5445 | - | TRACTOR | MF 5400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF5455 | - | TRACTOR | MF 5400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF5460 | - | TRACTOR | MF 5400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF5465 | - | TRACTOR | MF 5400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF5475 | - | TRACTOR | MF 5400 SERIES | PERKINS 1106D.E66TA | TIER 3 |
| MASSEY FERGUSON MF6445 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF6455 | - | TRACTOR | MF 6400 SERIES | PERKINS 1104D-E44TA | - |
| MASSEY FERGUSON MF6465 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF6475 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF6480 | - | TRACTOR | MF 6400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF7465 | - | TRACTOR | MF 7400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF7475 | - | TRACTOR | MF 7400 SERIES | PERKINS 1106D.E66TA | - |
| MASSEY FERGUSON MF7480 | - | TRACTOR | MF 7400 SERIES | PERKINS 1106D.E66TA | - |
