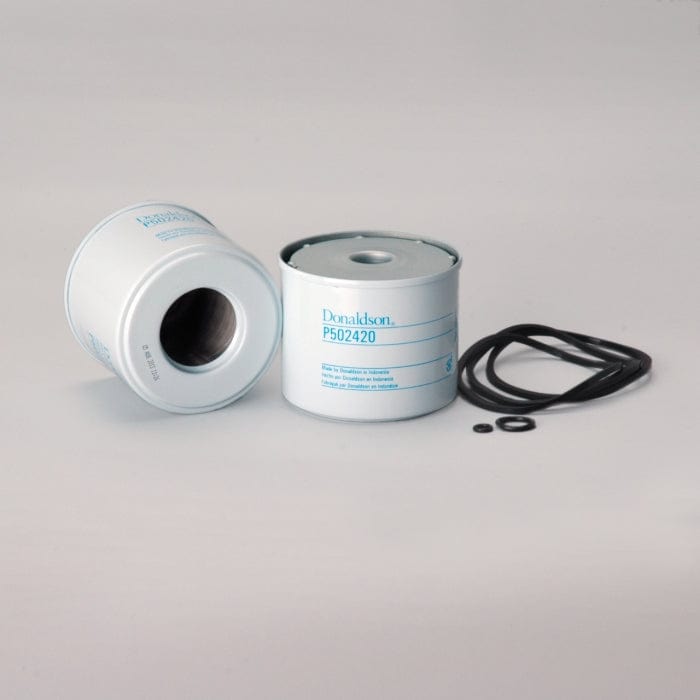

Fuel Filter, Cartridge - Donaldson P502420
Fuel Filter, Cartridge - Donaldson P502420
Regular price
£6.97
Regular price
Sale price
£6.97
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502420
Fuel Filter, Cartridge| Outer Diameter | 3.35 inch (85 mm) |
| Inner Diameter | 0.75 inch (19 mm) |
| Length | 2.81 inch (71.3 mm) |
| Efficiency 50% | 74 micron |
| Efficiency Test Std | JIS D 1617 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Wire Mesh |
| Primary Application | PERKINS 26550005 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 85 mm (3.35 inch)
- Inner Diameter: 19 mm (0.75 inch)
- Length: 71.3 mm (2.81 inch)
- Efficiency 50%: 74 micron
- Efficiency Test Std: JIS D 1617
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Wire Mesh
- Primary Application: PERKINS 26550005
Packaged Dimensions
- Packaged Length: 0.089 m (3.54 inch)
- Packaged Width: 0.089 m (3.54 inch)
- Packaged Height: 0.079 m (3.15 inch)
- Packaged Weight: 0.120 kg (0.26 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330197790
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BANDIT | 904000864 | |
| BOBCAT | 721998 | |
| BOSCH-REXROTH | 9451080009 | |
| BOSCH-REXROTH | 9455160246 | |
| BOSCH-REXROTH | 9455080000 | |
| BOSCH-REXROTH | 9879993036 | |
| CASE/CASE IH | A051346 | |
| CASE/CASE IH | E065568 | |
| CASE/CASE IH | A039109 | |
| CASE/CASE IH | A037187 | |
| CASE/CASE IH | K960911 | |
| CASE/CASE IH | A35668 | |
| CASE/CASE IH | K906708 | |
| CASE/CASE IH | G045288 | |
| CASE/CASE IH | C045288 | |
| CASE/CASE IH | PK635776 | |
| CASE/CASE IH | PK70990031 | |
| CASE/CASE IH | E011215 | |
| CATERPILLAR | 2526338 | |
| CATERPILLAR | 4415111 | |
| CAV | 7111500 | |
| CAV | 296 | |
| CLAAS | 11377510 | |
| DEUTZ | 03018134 | |
| DYNAPAC | 711296 | |
| DYNAPAC | 499574 | |
| FG WILSON | 1000063247 | |
| FIAT | 5983958 | |
| FIAT | 4621540 | |
| FIAT | 9924318 | |
| FIAT | 4621739 | |
| FIAT | 4621740 | |
| FIAT | 9918184 | |
| FIAT | 70251397 | |
| FIAT | 1606100 | |
| FIAT | 19011687 | |
| FIAT | 4680444 | |
| FIAT | 62775368 | |
| FIAT | 9918144 | |
| FIAT | 74680444 | |
| FIAT | 4651986 | |
| FIAT | 9918114 | |
| FIAT | 4561986 | |
| FIATALLIS | 7150515 | |
| FIATALLIS | 9924318 | |
| FORD | EDL6744A2 | |
| FORD | 1582261 | |
| FORD | WD5T9W365 | |
| FORD | 3914074 | |
| FORD | C5NE9176A | |
| FORD | 1423477 | |
| FORD | C5NE9176C | |
| FORD | DONN9N074B | |
| FORD | 6149717 | |
| HYSTER | 2656017 | |
| HYSTER | 26560017 | |
| HYSTER | 0157854 | |
| HYSTER | 0983883 | |
| HYSTER | 0124217 | |
| HYSTER | 0803972 | |
| HYSTER | 0803864 | |
| JLG | 7021191 | |
| KOMATSU | EFC1 | |
| LIUGONG | SP126720 | |
| LIUGONG | 40C0930 | |
| MANITOU | 26550005 | |
| MANITOU | 706497 | |
| MASSEY FERGUSON | 6309493M1 | |
| MASSEY FERGUSON | 2710659 | |
| MASSEY FERGUSON | 4225526M1 | |
| MASSEY FERGUSON | 1851890M91 | |
| MWM | 90541420083 | |
| MWM | 905411420010 | |
| PERKINS | 26550005 | |
| PERKINS | 635776 | |
| PERKINS | 4415122 | |
| PERKINS | 2656F823 | |
| SAKAI | 4031620020 | |
| SANDVIK | 15300170 | |
| VALMET | 711296 | |
| VALMET | 836015106 | Wire Mesh |
| VME | 3885315 | |
| VME | 3308968 | |
| VME | 635776 | |
| VOLKSWAGEN | 70990031 | |
| YANMAR | BTD33T55701 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 318D2 | - | EXCAVATOR | - | CATERPILLAR 3054C | - |
| CATERPILLAR 414E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 416D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054B | - |
| CATERPILLAR 416E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR C4.4 | - |
| CATERPILLAR 422E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 428D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 428E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 432D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 432E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 434E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 442D | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 442E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 444E | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR 914G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 920K | - | LOADER WHEELED | - | CATERPILLAR C4.4 | - |
| CATERPILLAR AP300 | - | PAVER | AP SERIES | CATERPILLAR 3054C DINA | - |
| CATERPILLAR AP800D | - | PAVER | AP SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR BG230D | - | PAVER | BG SERIES | CATERPILLAR 3054C ATAAC | - |
| CATERPILLAR CB434D | - | COMPACTOR | CB SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CB534D | - | COMPACTOR | CB SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CB564D | - | COMPACTOR | CB SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CD44 | - | COMPACTOR | CD SERIES | CATERPILLAR C3.4B | - |
| CATERPILLAR CD54 | - | COMPACTOR | CD SERIES | CATERPILLAR 3054C DIT | - |
| CATERPILLAR CP323C | - | COMPACTOR | CP SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CP433E | - | COMPACTOR | CP SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR CP533E | - | COMPACTOR | CP SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CS323C | - | COMPACTOR | CS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CS423E | - | COMPACTOR | CS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CS433E | - | COMPACTOR | CS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CS533E | - | COMPACTOR | CS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR IT14G | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR PF300C | - | COMPACTOR | PF SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR PS150C | - | COMPACTOR | PS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR PS300C | - | COMPACTOR | PS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR PS360C | - | COMPACTOR | PS SERIES | CATERPILLAR 3054C ATAAC | - |
| CATERPILLAR TH210 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054B DI | - |
| CATERPILLAR TH215 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054B DI | - |
| CLAAS AXOS 310 | - | TRACTOR | AXOS | PERKINS 1104D-44TA | - |
| CLAAS AXOS 320 | - | TRACTOR | AXOS | PERKINS 1104D-44TA | - |
| CLAAS AXOS 330 | - | TRACTOR | AXOS | PERKINS 1104D-44TA | - |
| CLAAS AXOS 340 | - | TRACTOR | AXOS | PERKINS 1104D-44TA | - |
| MANITOU ML 635 TURBO | 2003 | TELEHANDLER | ML SERIES | PERKINS 1104C-44T | - |
| MANITOU MLT 1035 L TURBO LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104D-44TA | - |
| MANITOU MLT 634 TURBO LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104D-44TA | - |
| MANITOU MLT 735 TURBO LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104D-44TA | - |
| MANITOU MLT 741 TURBO LSU | 2003 | TELEHANDLER | MLT SERIES | PERKINS 1104D-44TA | - |
| MANITOU MT 1235 S | 2006 | TELEHANDLER | MT SERIES | PERKINS 1104C-44 | - |
| MANITOU MT 1235 S TURBO | 2006 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1240 L TURBO | 2010 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1240 L TURBO ULTRA | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1335 SL | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44 | - |
| MANITOU MT 1335 SL TURBO | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1340 SL TURBO | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1340 SL TURBO ULTRA | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1435 SL | 2006 | TELEHANDLER | MT SERIES | PERKINS 1104C-44 | - |
| MANITOU MT 1435 SL TURBO | 2006 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1440 SL | 2006 | TELEHANDLER | MT SERIES | PERKINS 1104C-44 | - |
| MANITOU MT 1440 SL TURBO | 2006 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1440 SL TURBO ULTRA | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 1740 SL TURBO | 2003 | TELEHANDLER | MT SERIES | PERKINS 1004C-44T | - |
| MANITOU MT 1740 SL TURBO ULTRA | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MANITOU MT 940 L TURBO | 2003 | TELEHANDLER | MT SERIES | PERKINS 1104C-44T | - |
| MCCORMICK CX100 | - | TRACTOR | CX SERIES | PERKINS 1004.4TW | TIER 3 |
| MCCORMICK CX105 | - | TRACTOR | CX SERIES | PERKINS 1104D-44TA | TIER 3 |
| MCCORMICK CX110 | - | TRACTOR | CX SERIES | PERKINS 1104D-44TA | TIER 3 |
| MCCORMICK CX90 | - | TRACTOR | CX SERIES | PERKINS 1004.4T | TIER 3 |
| PERKINS 1106A.70TAG | - | ENGINE | - | PERKINS 1106A.70TAG | - |
| PERKINS 1106A.70TAG | - | ENGINE | - | PERKINS 1106A.70TAG | - |
| PERKINS 1106A.70TG | - | ENGINE | - | PERKINS 1106A.70TG | - |
