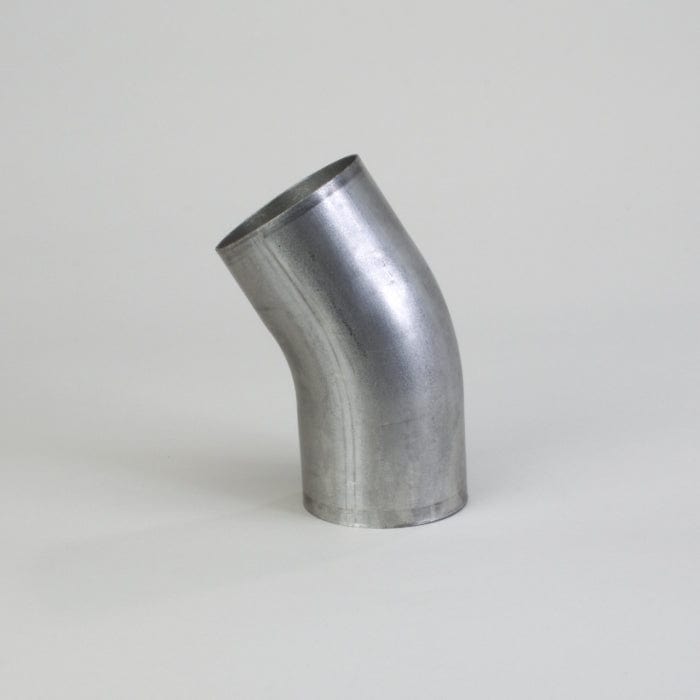

Elbow, 30 Degree 4 In (102 Mm) Od-Od - Donaldson J009636
Elbow, 30 Degree 4 In (102 Mm) Od-Od - Donaldson J009636
Regular price
£45.66
Regular price
Sale price
£45.66
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson J009636
Elbow, 30 Degree 4 In (102 Mm) Od-Od| Wall Thickness | 1.65 mm |
| Outer Diameter | 3.99 inch (101.22 mm) |
| Leg Length 1 | 4.00 inch (101.6 mm) |
| Leg Length 2 | 4.00 inch (101.6 mm) |
| Radius | 5.00 inch (127 mm) |
| Connection | OD-OD |
| Angle | 30 Degrees |
Share
Collapsible content
Specifications
Attributes
- Wall Thickness: 1.65 mm
- Outer Diameter: 101.22 mm (3.99 inch)
- Leg Length 1: 101.6 mm (4.00 inch)
- Leg Length 2: 101.6 mm (4.00 inch)
- Radius: 127 mm (5.00 inch)
- Connection: OD-OD
- Angle: 30 Degrees
Packaged Dimensions
- Packaged Length: 0.215 m (8.60 inch)
- Packaged Width: 0.454 m (18.15 inch)
- Packaged Height: 0.101 m (4.05 inch)
- Packaged Weight: 0.760 kg (1.68 lb)
- Packaged Volume: 0.010 m3 (0.37 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 019160-02
- HTS Code: 7307998099
- UPC Code: 742330079010
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 9636 | |
| ASTEC UNDERGROUND | 21000090 | |
| DYNAFLEX | 10T40030 | |
| HEAVY DUTY MFG | 11A40030 | |
| HEAVY DUTY MFG | 11A40030A | |
| HOIST LIFTTRUCK MANUFACTURING | M11058 | |
| NELSON | 900077A | |
| RAINBOW MANUFACTURING | 18376 | |
| RIKER | L40030NE | |
| STEMCO | 2298024 | |
| TRUCKEX | 10636 | |
| VERMEER | 277494001 | |
| WALKER MANUFACTURING | 41615 |
