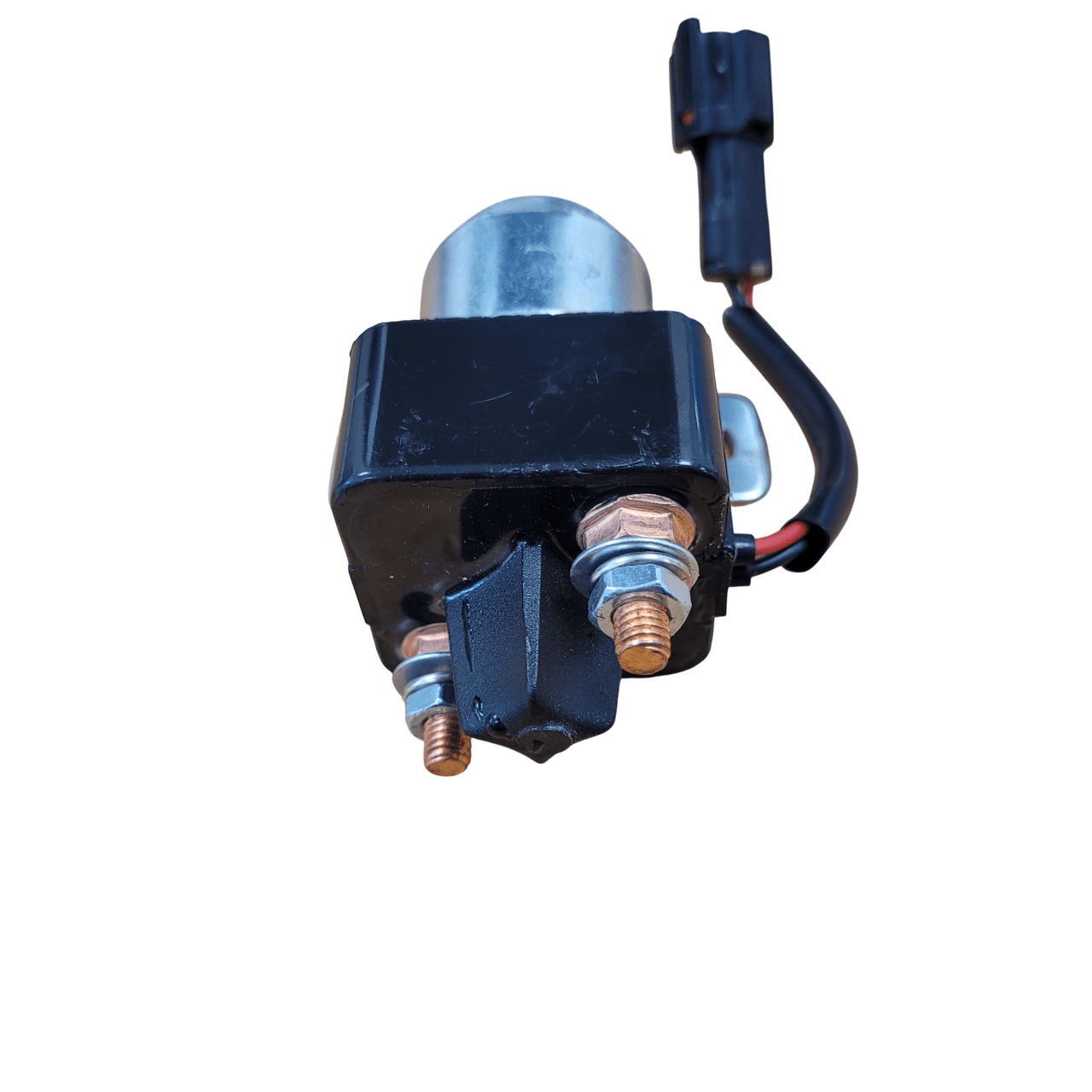

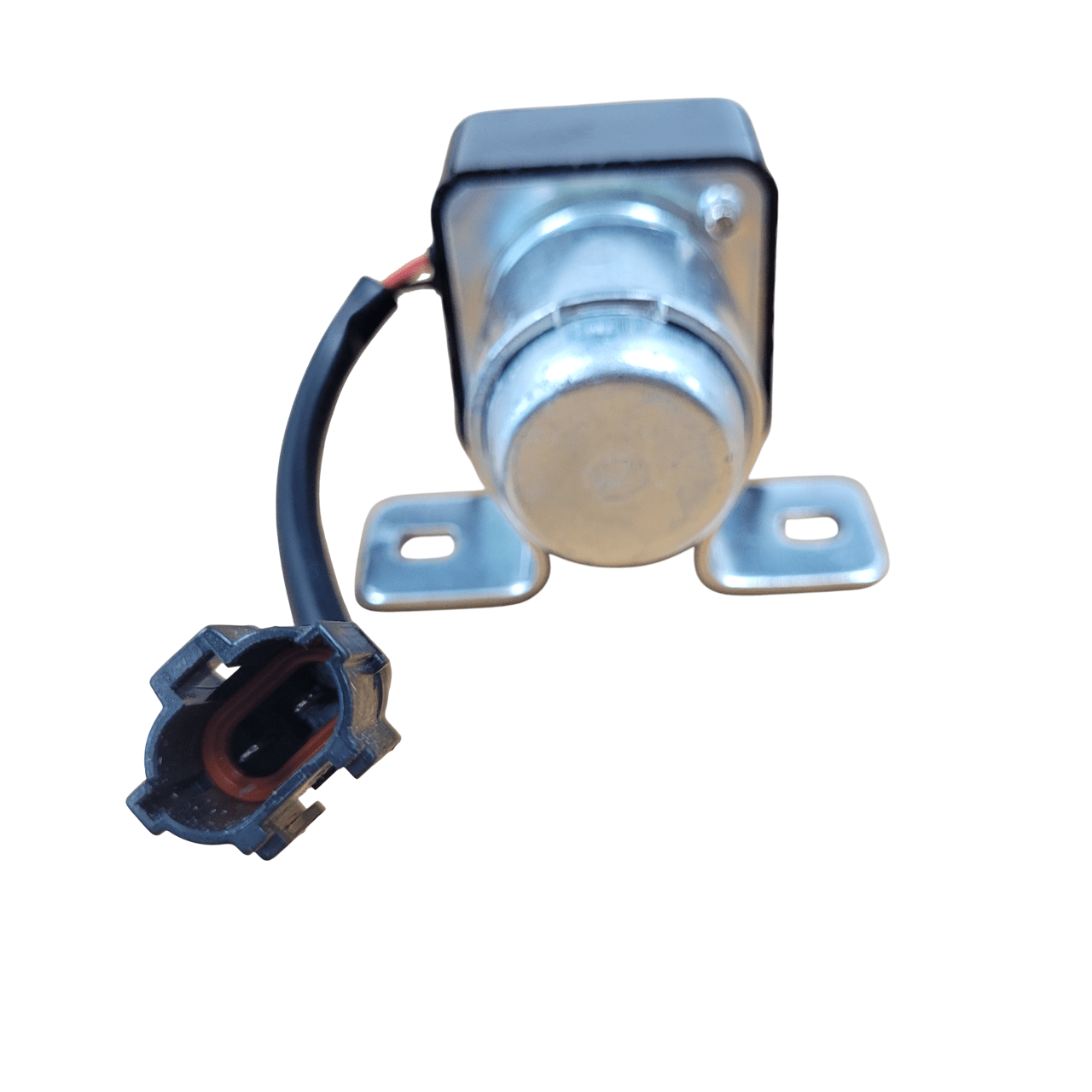

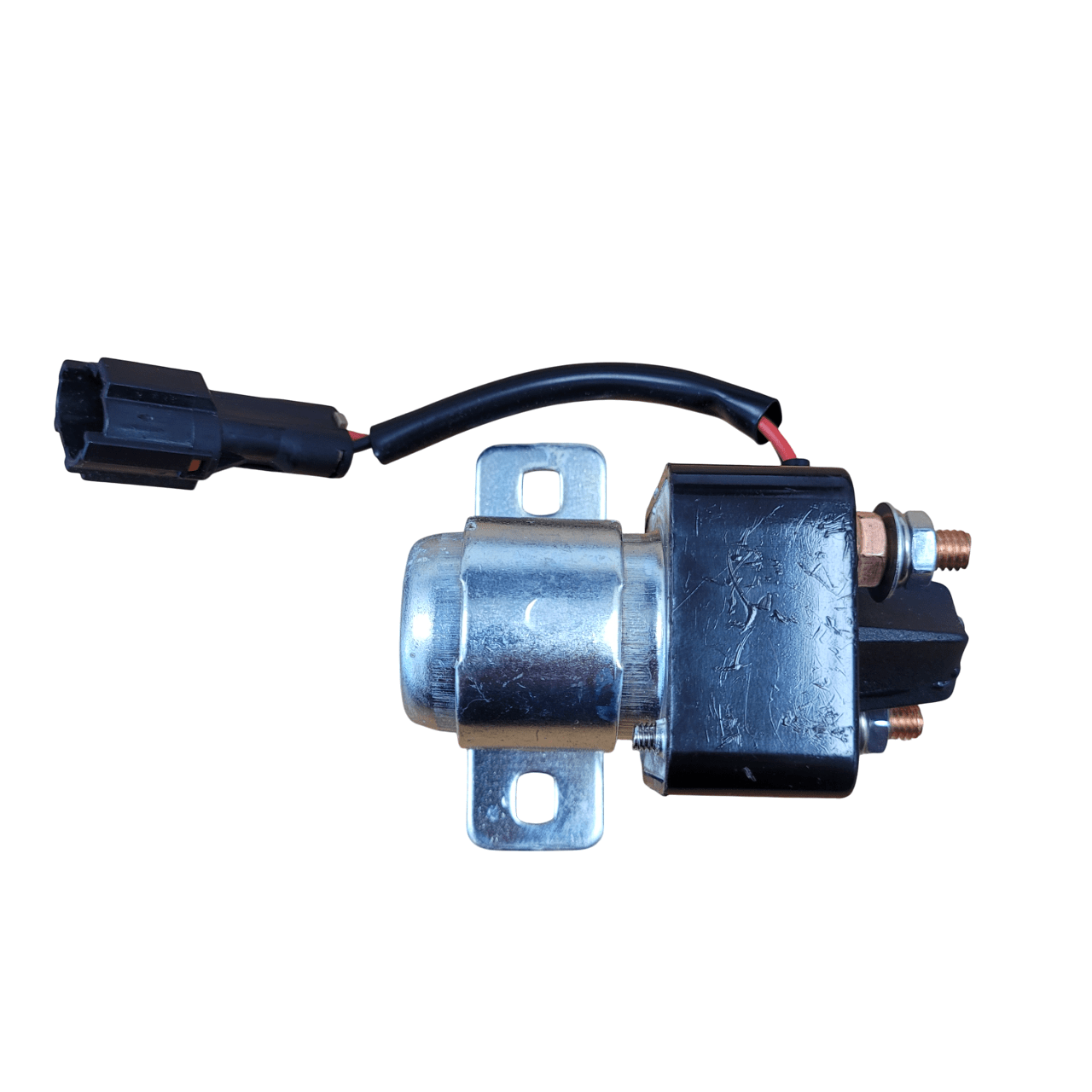

DOOSAN Glow Plug Pre Heat Contactor

Specification

Brand - OEM Quality
Shape of the contactor - Round shape 3
Maximum length of the contactor L1 (mm) - 67.5
Maximum width of the contactor W1 (mm) - 46
Maximum height of the contactor H1 (mm) - 80
Number of solenoids - 1
Voltage of the solenoid (V) - 12
Type of current - Direct current
Resistance of the solenoid (Ohm) - 10.5
Number of connections on the solenoid - 1
Type of connection on the solenoid - Wire with connector
Length of the cable of the coil L2 (mm) -130
Number of contact connections - 2
Type of contact connection - Outer thread
Outer thread size - M6
Pitch metric of outer thread (mm) -1
Right / left outer thread - Right-handed
Fuse present - NO
External diode present - NO
External resistor present - NO
Number of normal open contacts (NO) - 1
Auxiliary contact present - NO
Magnetic blow outs present - NO
Top cover - Closed
Shortest center distance between mounting holes C1 (mm) - 50
Number of closed holes - 2
Shape mounting surface - Flat
Support present - NO
Weight (kg) - 0.321
