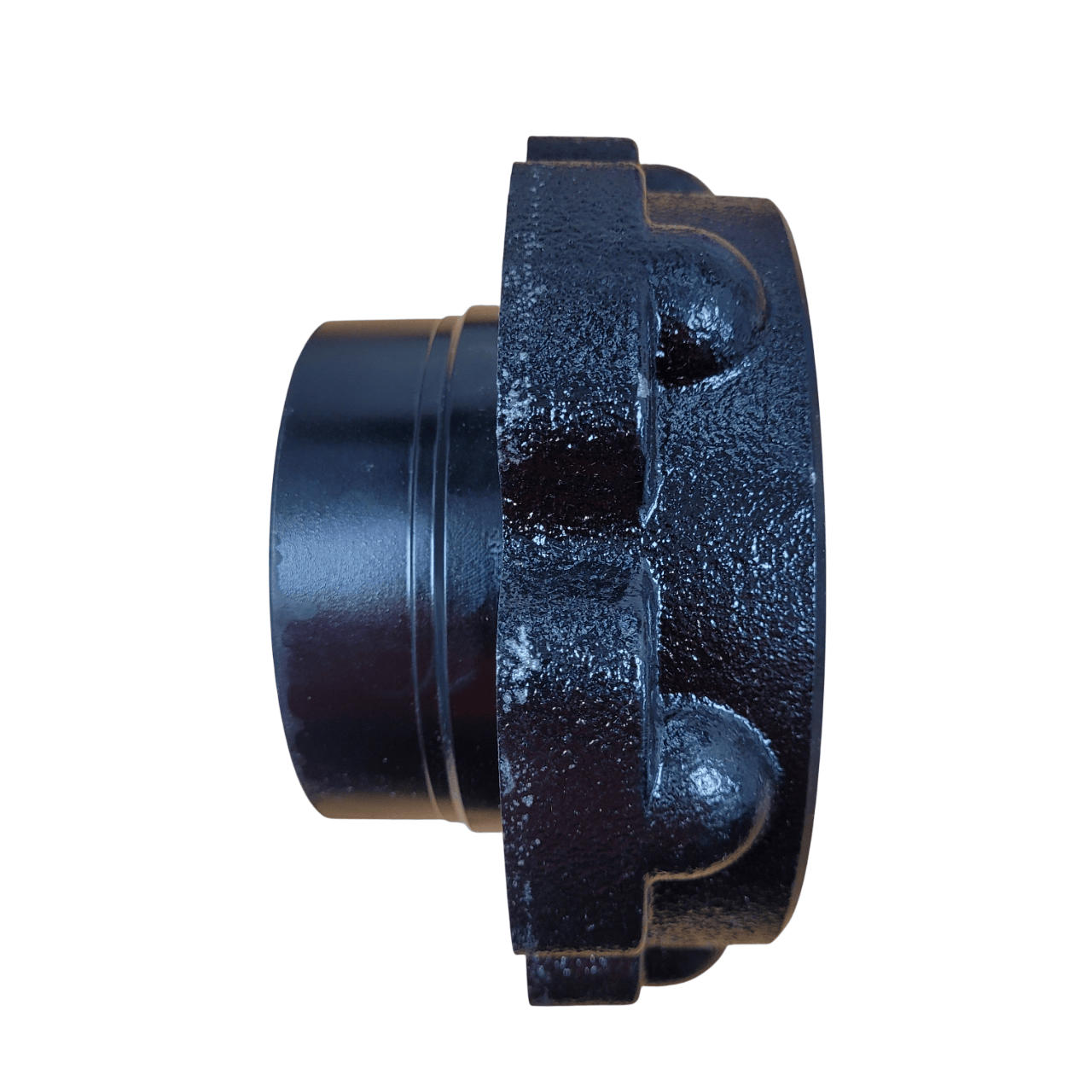

DOOSAN Steering Hub D20S-5 D25S-5 D30S-5 D33S-5 D35C-5

Specification

Brand - TotalSource
Total Height H1 (mm) - 89
Smallest inner diameter of finished counter bored hole D1 (mm) - 80.5
Biggest inner diameter of finished counter bored hole, other side D2 (mm) - 115
Number of wheel bolt holes - 6
Thread size TA1 - M12
Pitch metric (mm) - 1.75
Smallest distance between wheel bolt holes L1 (mm) - 59
Height from end to top of flange H2 (mm) - 47
Weight (kg) - 4.792
