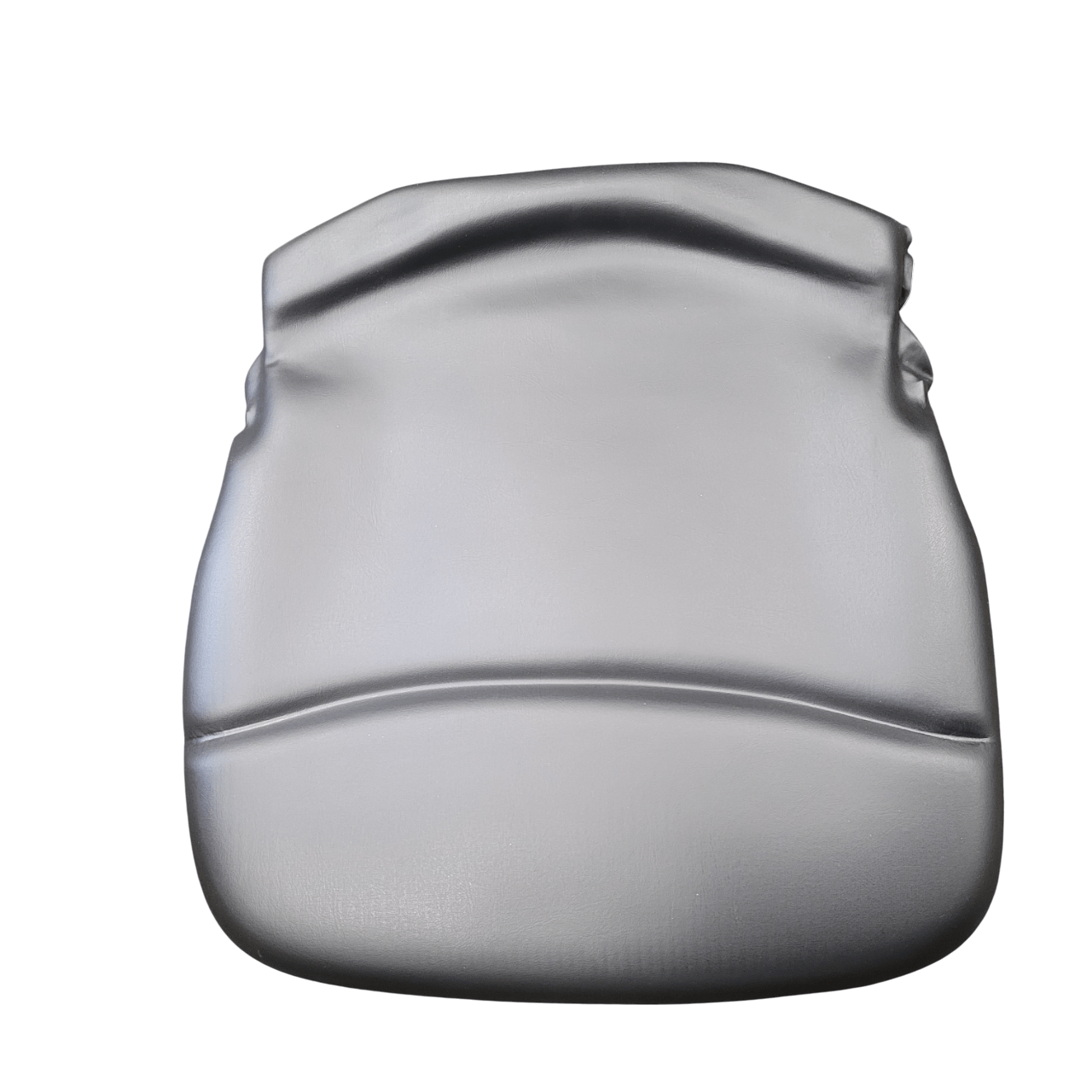

DOOSAN Seat Base D20S-9

Specification

Type - Seat
Part of the cushion - Complete Cushion for Base
Material of the cover - Polyvinylchloride
Colour cover - Black
Material filling - Rubber foam
Total length cushion L1 (mm) - 505
Total width cushion W1 (mm) - 495
Maximum thickness cushion TH1 (mm) - 95
Ventilated cushion - NO

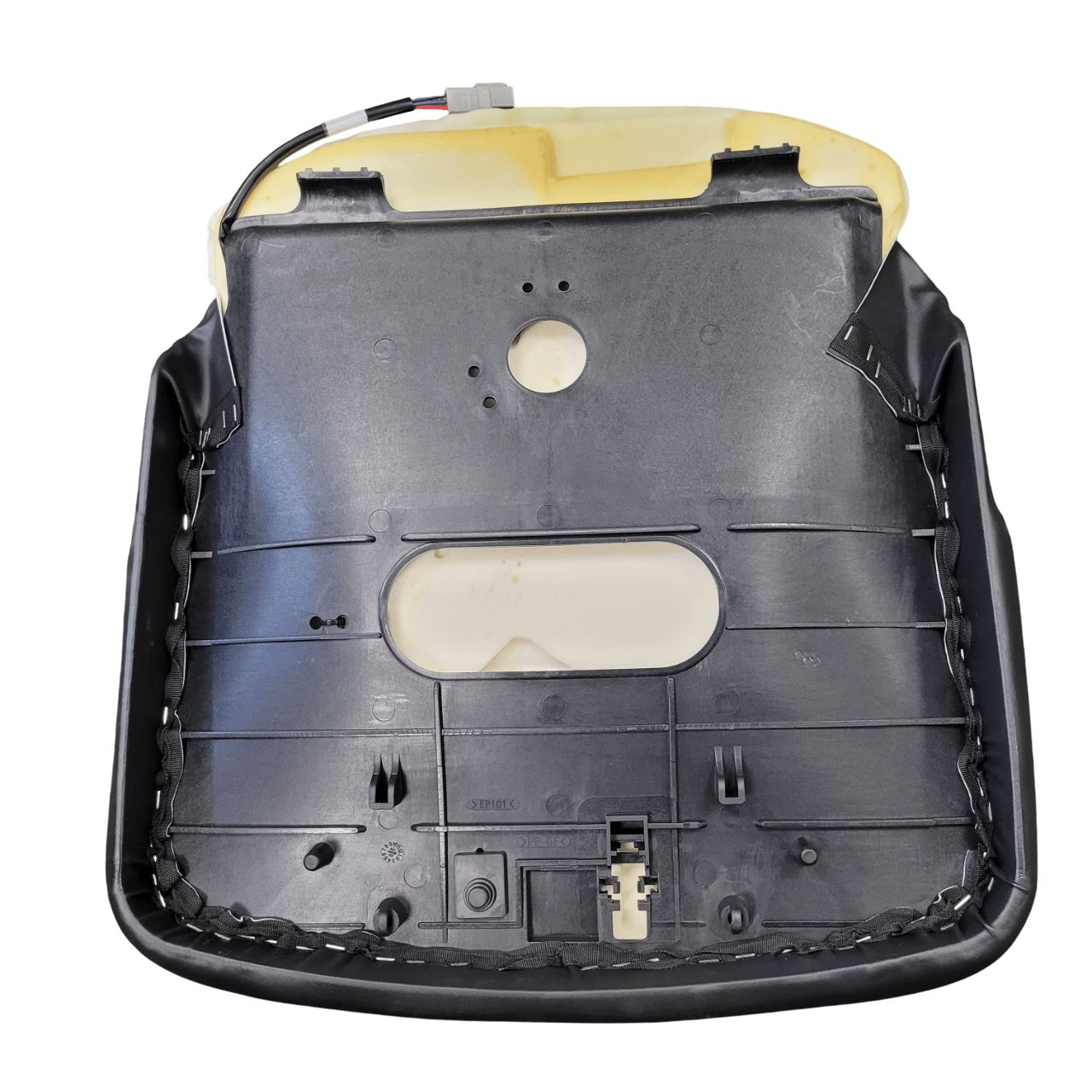

Number of mounting points - 4
Type of mounting - Click system-hole

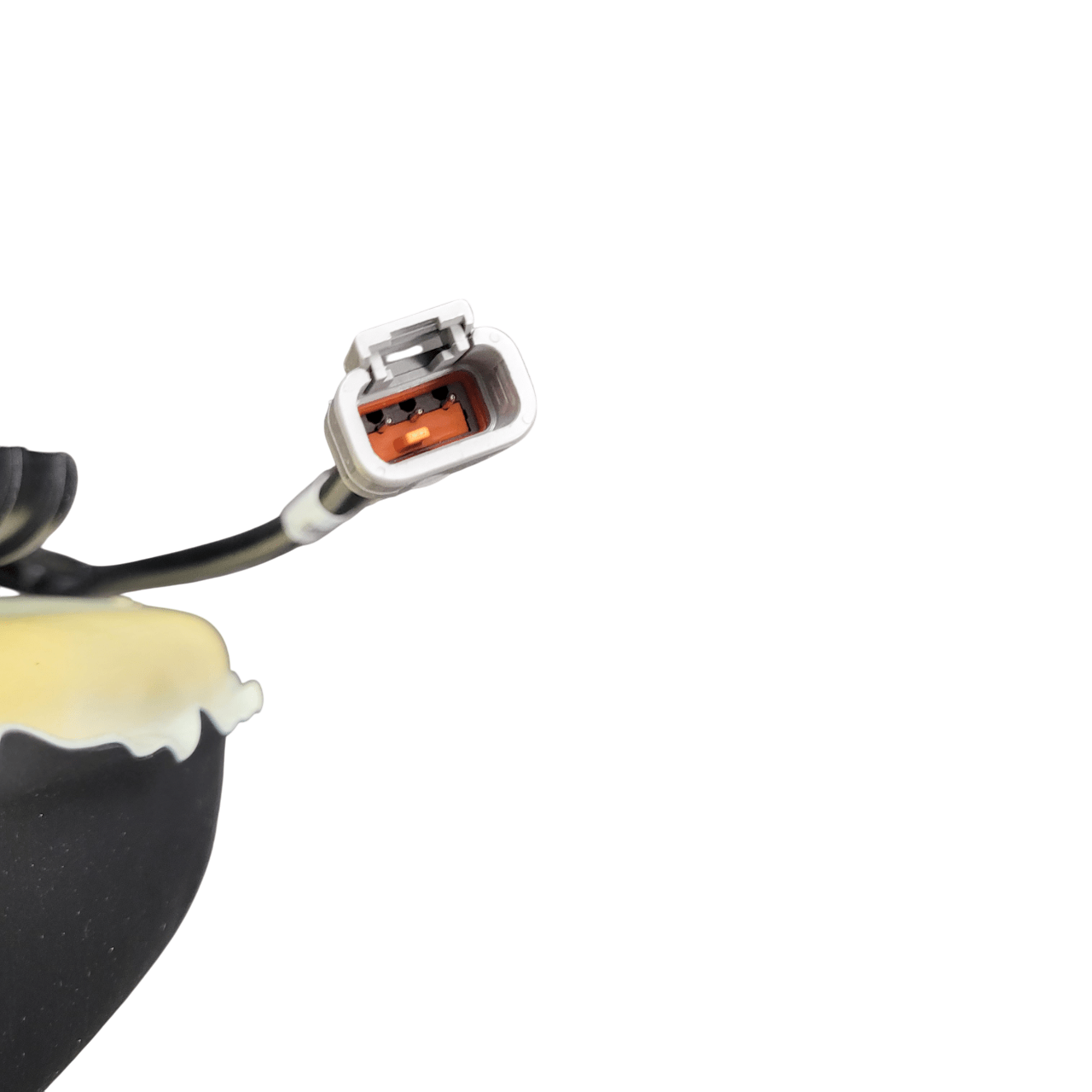

Connector present - YES
Number of connectors - 1
Number of pins in the connector - 3
Seat safety switch present - YES
Sort of seat safety switch - Sensor
Number of wires seat safety switch - 3
Wire length seat safety switch L2 (mm) - 195
Heating present - NO
Weight - 2.656
