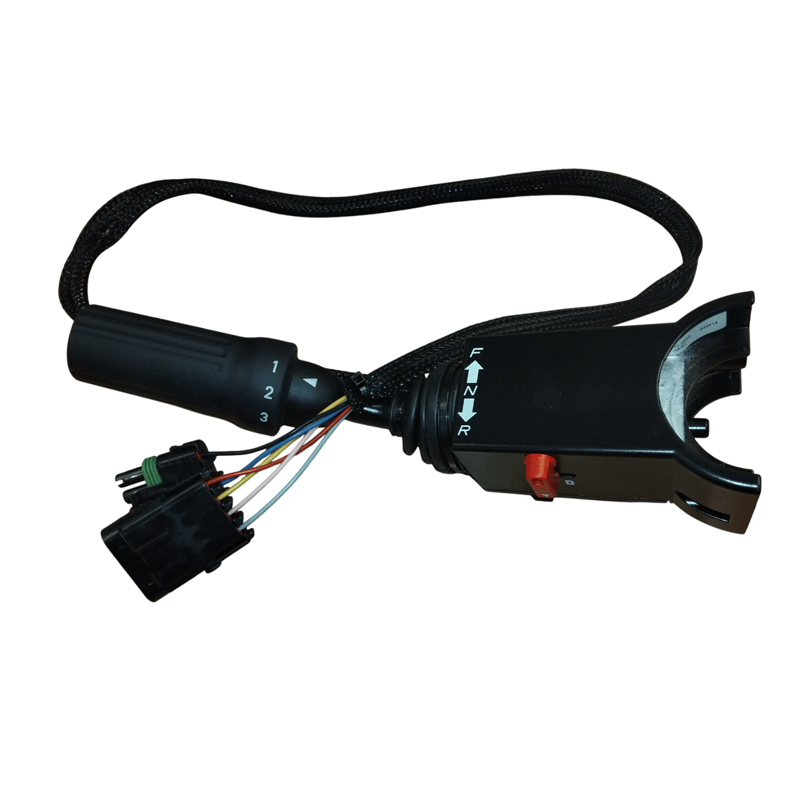

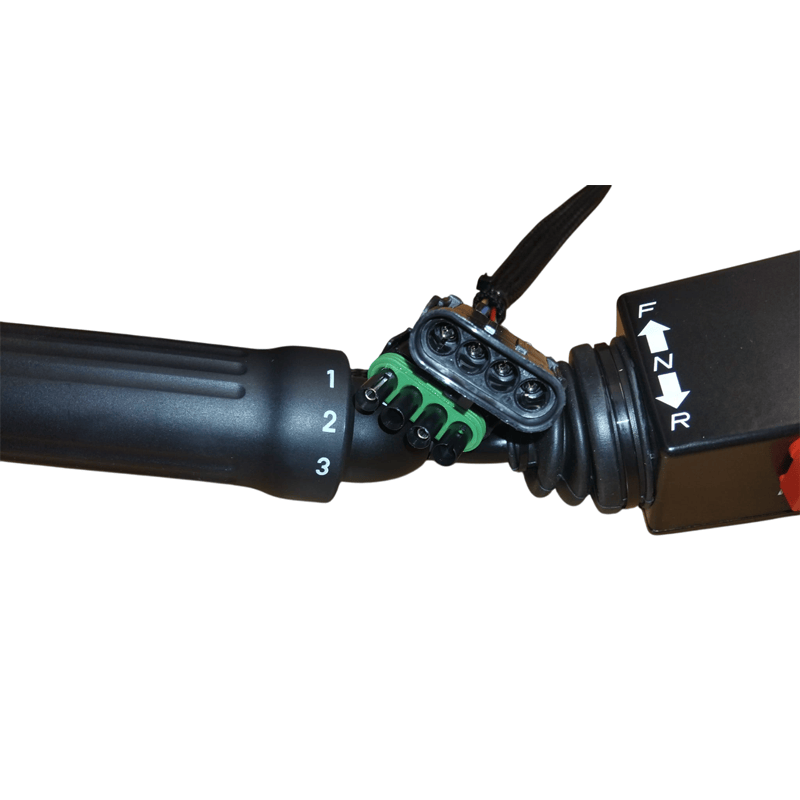

DOOSAN Forward/ Reverse Switch D80S-7

Specification

Brand - TotalSource
Number of connections - 2
Type of the connection - Wire with connector
Number of wires - 6
Number of pins - 6
Diameter steering column mounting D1 (mm) - 45
Total length of the steering column switch L1 (mm) - 307
Total width of the steering column switch W1 (mm) - 76
Total height of the steering column switch H1 (mm) - 135
Length of the cable L2 (mm) - 1100
Number of mounting holes - 2
Thread size TA1 - M5
Pitch (metric) TA1 (mm) - 0.8
Right or left handed thread - Right-handed
Shortest center distance between mounting holes C1 (mm) - 62
Material of the housing - Metal
Number of levers - 1
Forwards present - YES
Neutral present - YES
Reverse present - YES
Neutral Lock present - YES
Park present - NO
Slow speed present - NO
Fast speed present - NO
Gear present - YES
Number of gears - 3
Automatic gear selection present - NO
Cruise control present - NO
Horn present - NO
Left/right direction indicator present - NO
Position light present - NO
Low beam present - NO
High beam present - NO
High beam flashing present - NO
Master light switch present - NO
Automatic light present - NO
Fog light present - NO
Warning light present - NO
Worklight present - NO
Revolving/ strobe light present - NO
Wiper present - NO
Windscreen washer present - NO
Weight (kg) - 1.32
