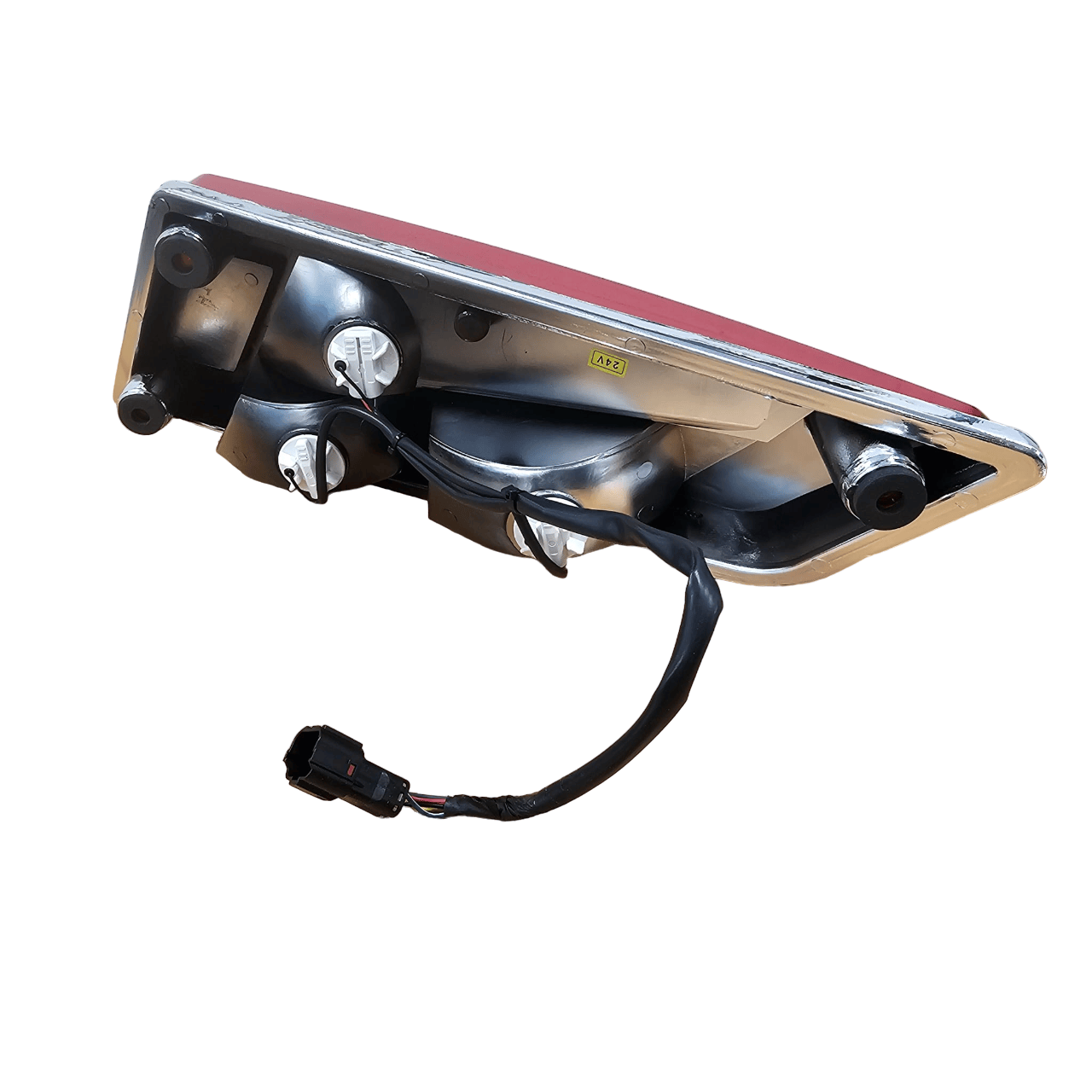

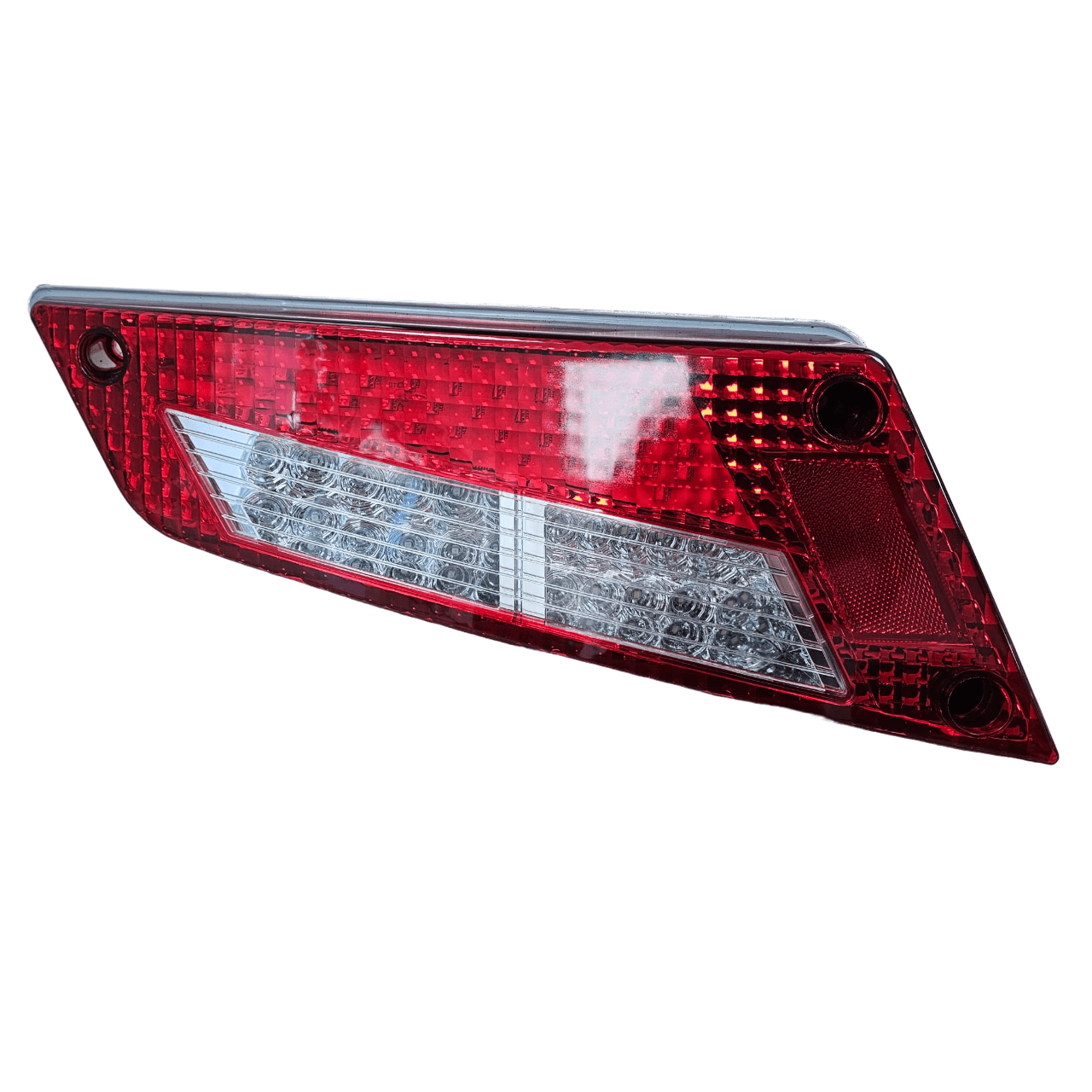

DOOSAN D80S-7 Rear Lamp LH

Specification

Brand - TotalSource
Type of technology - LED
Total length - 570 mm
Total height  -180 mm
Total width - 112 mm
Length of the housing surrounding the lens - 570 mm
Height of the housing surrounding the lens - 180 mm
Width of the housing surrounding the lens - 70 mm
Wire length - 380 mm
Centre distance of the mounting - 461 mm
Mounting - Hole without thread
Position of attachment - Built up
Number of mounts - 3
Horizontal mounting - Yes
Vertical mounting - No
Side of mounting - Left side
Voltage - 24 V
Number of connectors - 1
Number of pins in the connector - 5
Number of LEDs - 52
Bulbs included - Yes
Replaceable bulbs - No
Replaceable lens - No
Triangular reflector - No
Material of the lens - Plastic
Weight (kg) - 2.7
