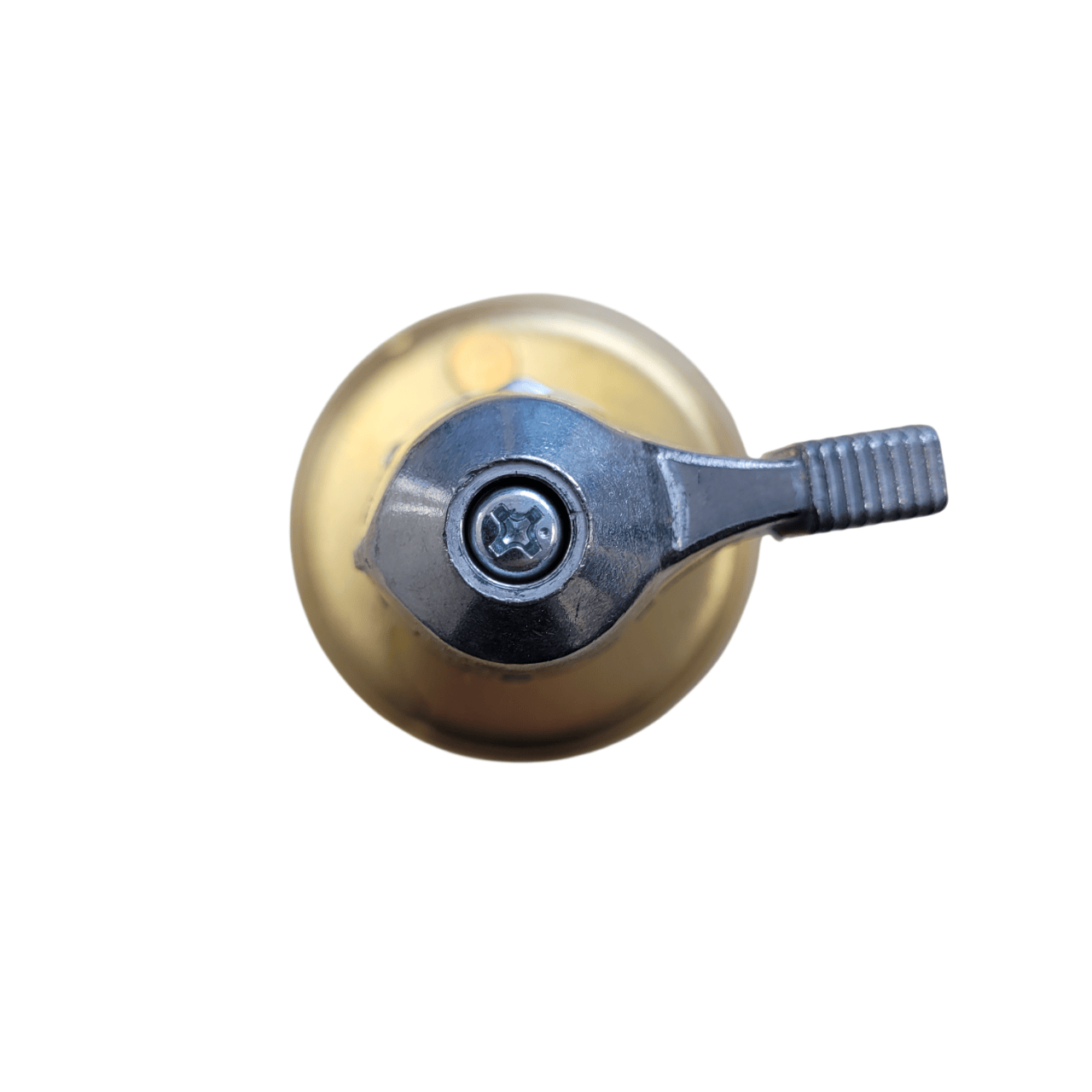

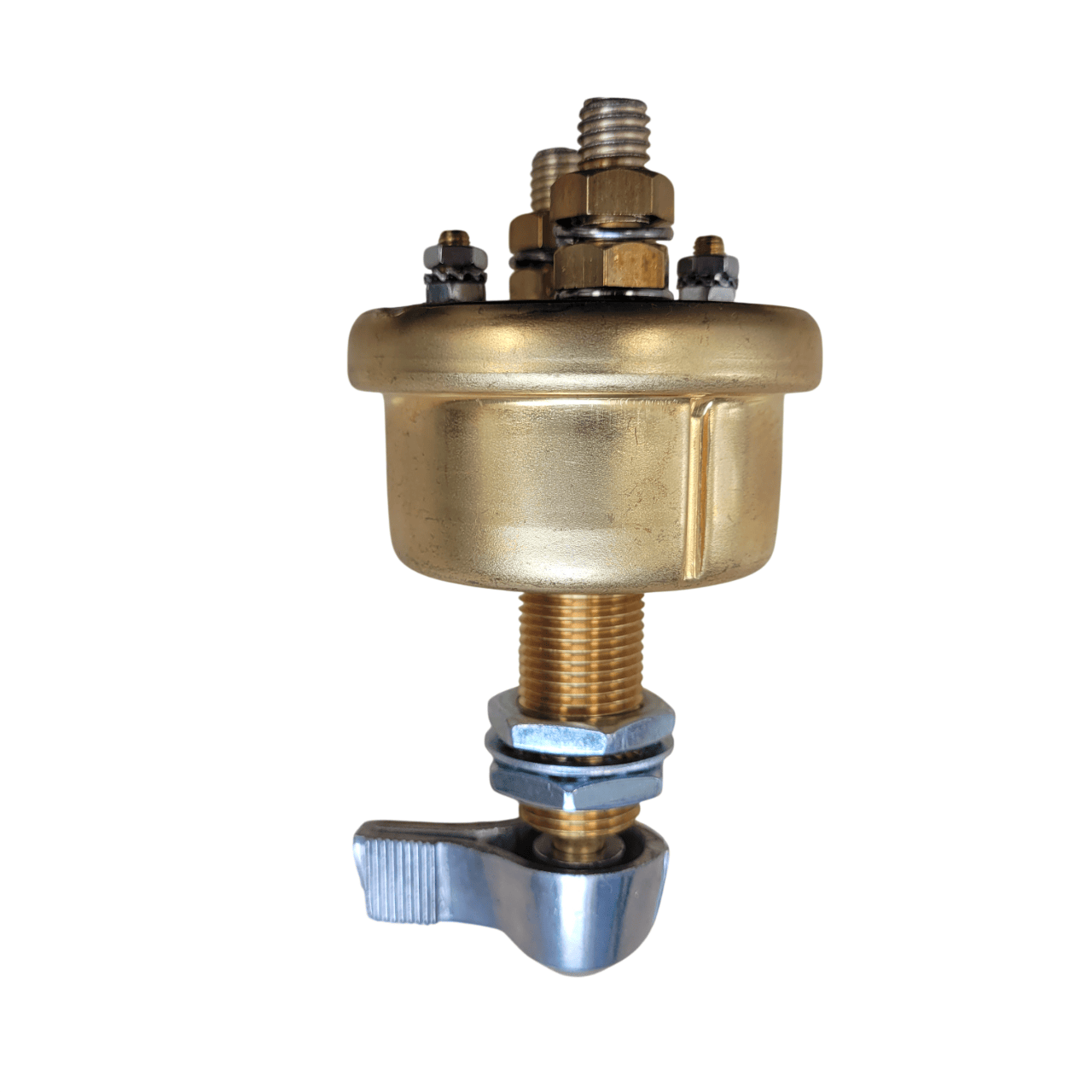

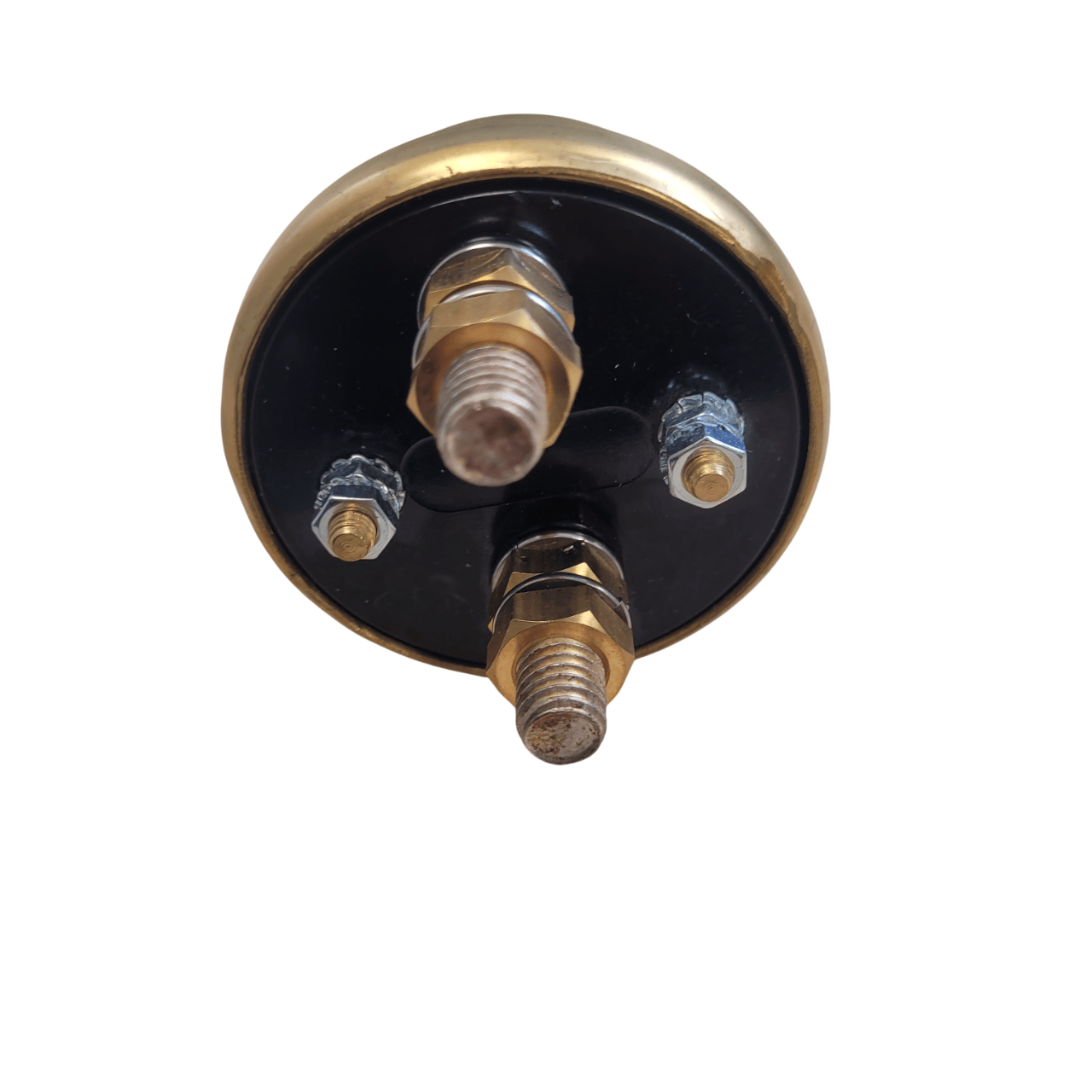

DOOSAN Battery Isolator

Specification

Brand - TotalSource
Type of the connection - Stud
Position of the connection - Straight
Current (A) -175
Quantity of poles on the battery disconnect switch - 1
Auxiliary switch present - NO
Type of the actuator - Fixed handle
Nominal diameter of the connection D1 (mm) -  9.53
Thread size connection - 3/8
Type of thread connection - UNC
Pitch (inch) - 16
Top built-in diameter of the battery disconnect switch D2 (mm) - 19
Length thread panel mount L2 (mm) - 36
Bottom built-in height of the battery disconnect switch H1 (mm) - 65
Bottom built-in diameter of the battery disconnect switch D3 (mm) - 67.5
Total height of the battery disconnect switch H2 (mm) - 125
Total diameter of the battery disconnect switch D4 (mm) - 67.5
Material of the housing - metal-plastic
Material of the actuator - metal
Weight (kg) - 0.48
