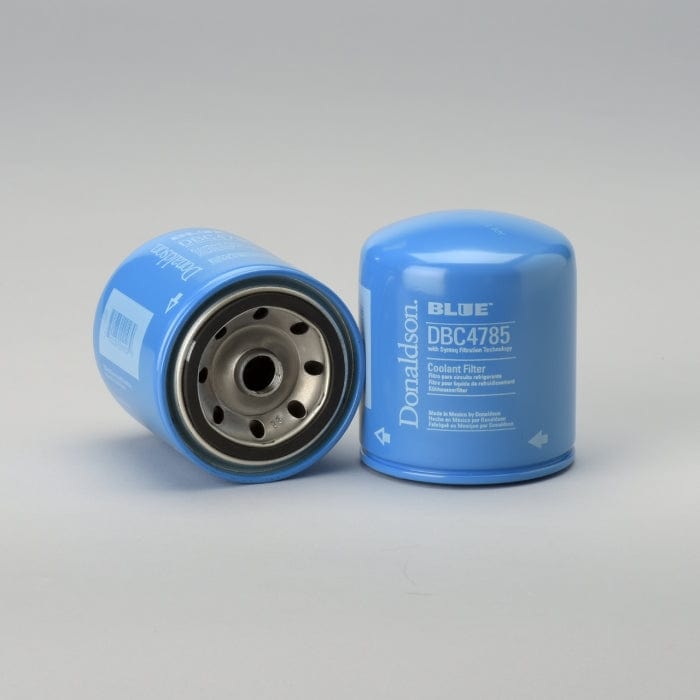

Coolant Filter, Spin-On Donaldson Blue No Chemical - Donaldson DBC4785
Coolant Filter, Spin-On Donaldson Blue No Chemical - Donaldson DBC4785
Regular price
£23.86
Regular price
Sale price
£23.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson DBC4785
Coolant Filter, Spin-On Donaldson Blue No Chemical| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 11/16-16 UN |
| Length | 4.21 inch (107 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 22 micron |
| Style | Spin-On |
| Brand | Donaldson BLUE® |
| Media Brand | Synteq™ |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 11/16-16 UN
- Length: 107 mm (4.21 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 22 micron
- Style: Spin-On
- Brand: Donaldson BLUE®
- Media Brand: Synteq™
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.098 m (3.90 inch)
- Packaged Height: 0.145 m (5.80 inch)
- Packaged Weight: 0.508 kg (1.12 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330991039
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CUMMINS | 1843659 | |
| CUMMINS | 3098689 | |
| DAF | 1843659 | |
| PACCAR | 1843659PE |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| KENWORTH T680 | - | TRUCK | - | PACCAR MX13 | - |
| KENWORTH T680 | - | TRUCK | - | PACCAR MX11 | - |
| KENWORTH T880 | - | TRUCK | - | PACCAR MX13 | - |
| KENWORTH W900 | - | TRUCK | - | PACCAR MX | - |
| PETERBILT 365 | - | TRUCK | - | PACCAR MX485 | - |
| PETERBILT 384 | - | TRUCK | - | PACCAR MX13 | - |
| PETERBILT 579 | - | TRUCK | - | PACCAR MX11 | - |
| PETERBILT 579 | - | TRUCK | - | PACCAR MX13 | - |
