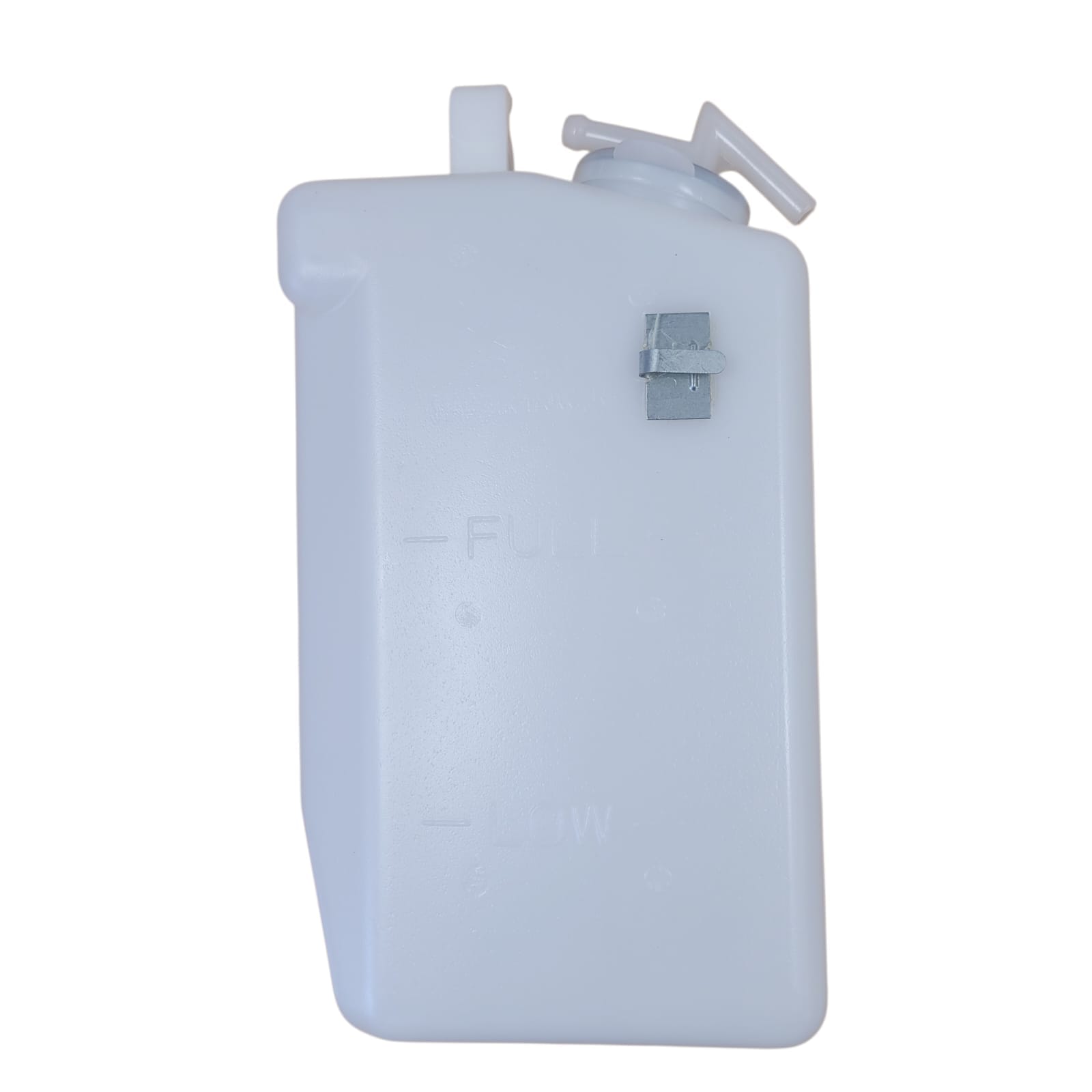

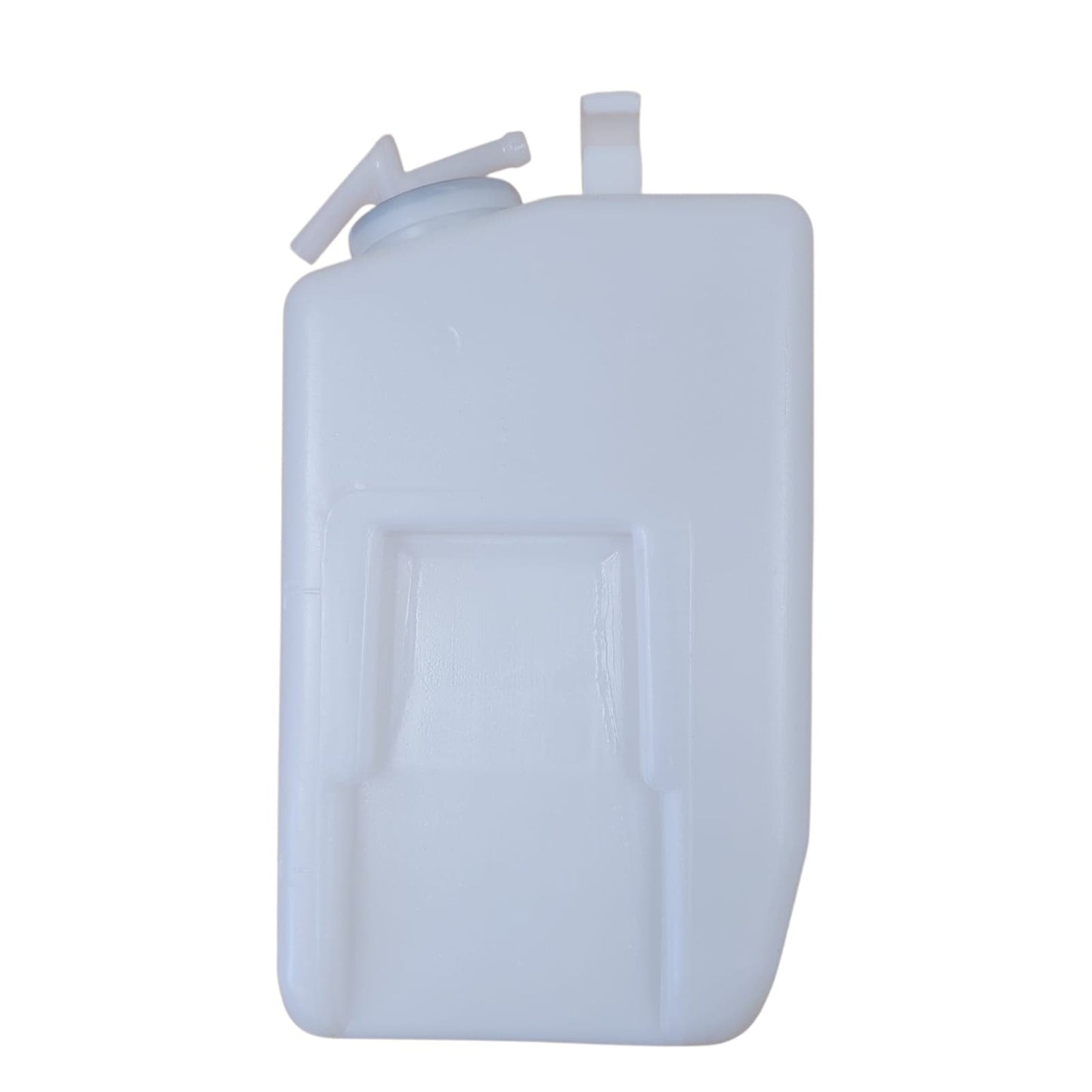

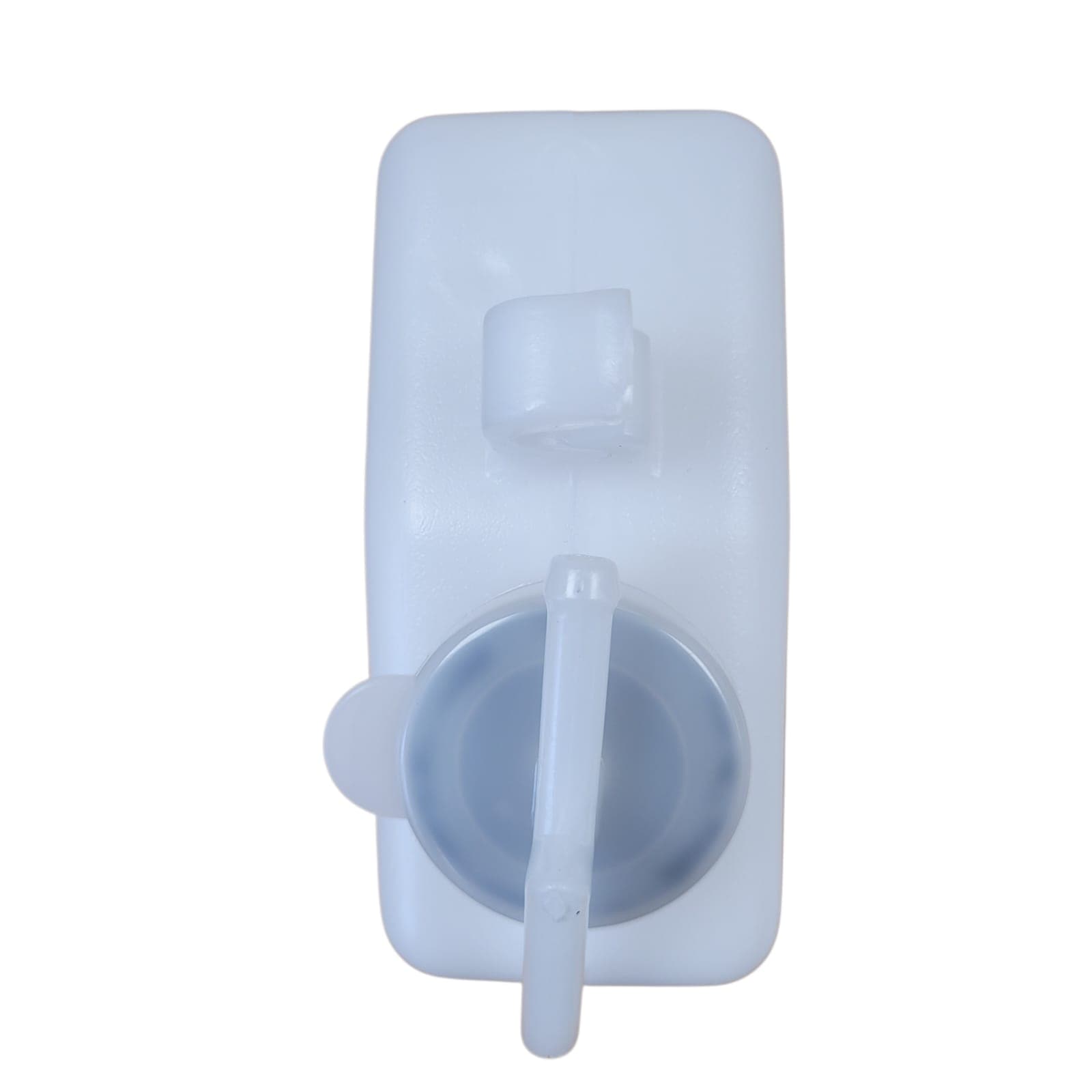

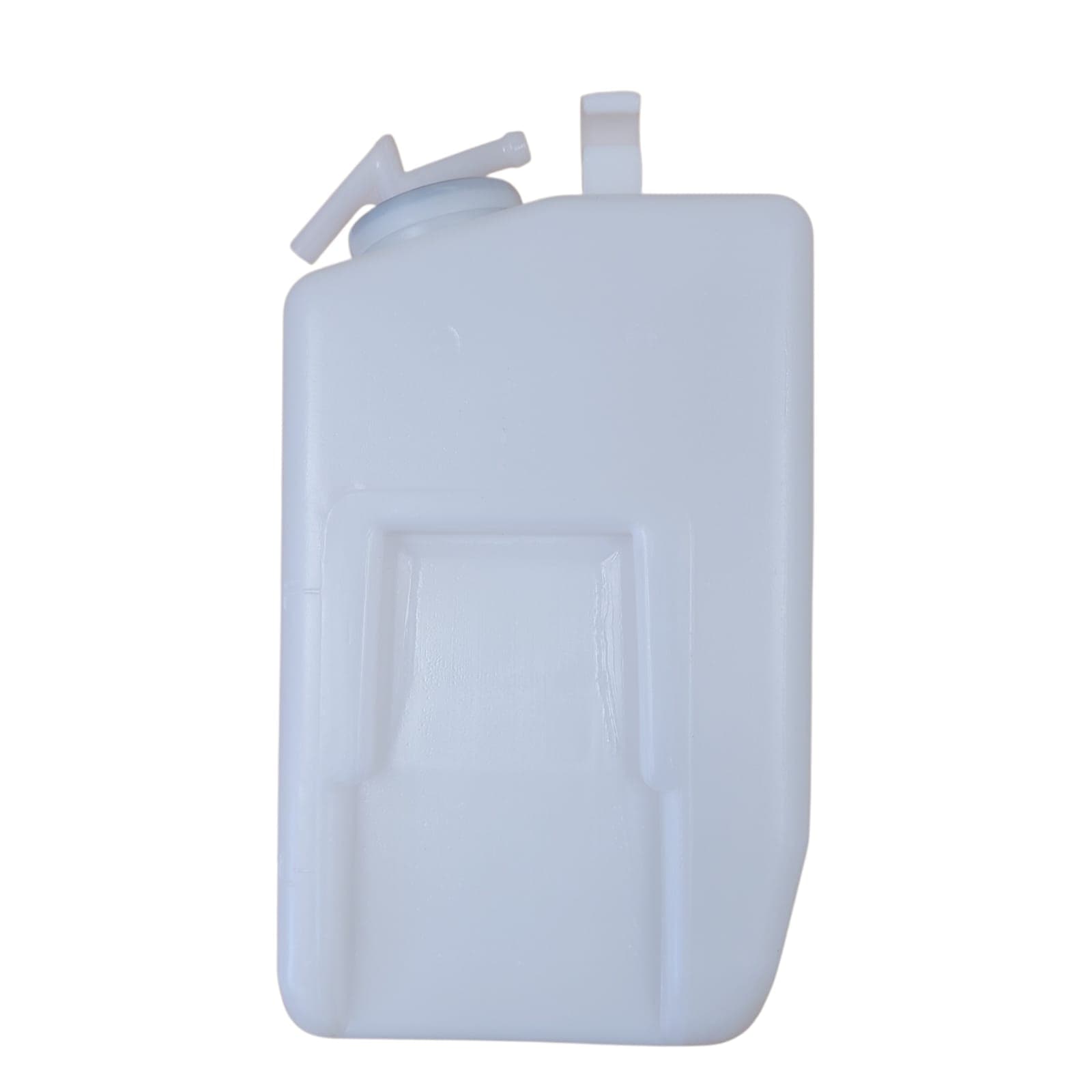

Caterpillar DP25NT Coolant Expansion Tank

Specification

Number of fixations - 1
Type of fixation - Slide connection
Maximum height without cap H1 - 240 mm
Maximum height with cap, if present H2 - 240 mm
Total length L1 - 130 mm
Total width W1 - 61 mm
Biggest diameter of the hose connection D3 - 10 mm
Second biggest diameter of the hose connection D4 - 8 mm
Connection diameter of the cap D7 - 44.5 mm
Outer diameter of the cap D8 - 47 mm
Diameter of the cap connection on the tank D9 - 45 mm
Length of the hose in the expansion tank L4 - 205 mm
Material - Plastic
Weight (kg) - 0.241
