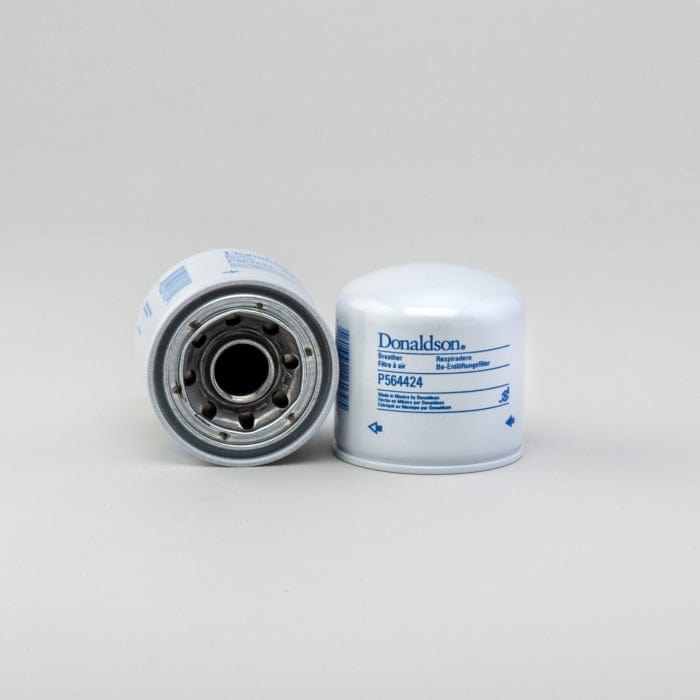

Breather, Hydraulic Spin-On - Donaldson P564424
Breather, Hydraulic Spin-On - Donaldson P564424
Regular price
£10.52
Regular price
Sale price
£10.52
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P564424
Breather, Hydraulic Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1 1/8-16 UN |
| Length | 3.66 inch (93 mm) |
| Efficiency Beta 2 | 3 micron |
| Style | Spin-On |
| Primary Application | SCHROEDER ABF310F |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1 1/8-16 UN
- Length: 93 mm (3.66 inch)
- Efficiency Beta 2: 3 micron
- Style: Spin-On
- Primary Application: SCHROEDER ABF310F
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.083 m (3.30 inch)
- Packaged Weight: 0.434 kg (0.96 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421392590
- UPC Code: 742330161395
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 51778454 | Use With P562628 Adapter For Installation |
| BIG A | 94460 | Use With P562628 Adapter For Installation |
| DRILTECH | 15279001 | Use With P562628 Adapter For Installation |
| GEHL | 137787 | Use With P562628 Adapter For Installation |
| HEIL | 0600402001 | Use With P562628 Adapter For Installation |
| HEIL | 600402001 | Use With P562628 Adapter For Installation |
| INGERSOLL RAND | 51790517 | Use With P562628 Adapter For Installation |
| INGERSOLL RAND | 51778454 | Use With P562628 Adapter For Installation |
| JOHN DEERE | T225008 | Use With P562628 Adapter For Installation |
| KRALINATOR | LA1764 | Use With P562628 Adapter For Installation |
| LABRIE | 101348 | Use With P562628 Adapter For Installation |
| LHA | ABG10 | Use With P562628 Adapter For Installation |
| MCNEILUS | 623454 | Use With P562628 Adapter For Installation |
| MCNEILUS | 0623454 | Use With P562628 Adapter For Installation |
| NEW WAY | 106207 | Use With P562628 Adapter For Installation |
| NEW WAY | M666 | Use With P562628 Adapter For Installation |
| SANDVIK | 015279001 | Use With P562628 Adapter For Installation |
| TAMROCK | 4004062 | Use With P562628 Adapter For Installation |
| TENNANT | 53431 | Use With P562628 Adapter For Installation |
| VMC | AF564424 | Use With P562628 Adapter For Installation |
| WASTEBUILT | C1C101348 | Use With P562628 Adapter For Installation |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO DM45 | - | DRILLING EQUIPMENT | - | CATERPILLAR C18 | - |
| GROVE RT500DXL | - | CRANE MOBILE | - | - RT500DXL | - |
| INGERSOLL RAND DMM3 | - | DRILLING EQUIPMENT | - | - DMM3 | - |
| LIEBHERR MULTI-HANDLER | - | LOADER | - | - MULTI-HANDLER | - |
| LIEBHERR MULTI-HANDLER 4500 | - | LOADER | - | - MULTI-HANDLER 4500 | - |
| VERMEER FT115 | - | TRENCHER | - | - FT115 | - |
| VERMEER T755 | - | TRENCHER | - | - T755 | - |
| VERMEER TG400 | - | TRENCHER | - | - TG400 | - |
| VERMEER TG400AL | - | TRENCHER | - | - TG400AL | - |
