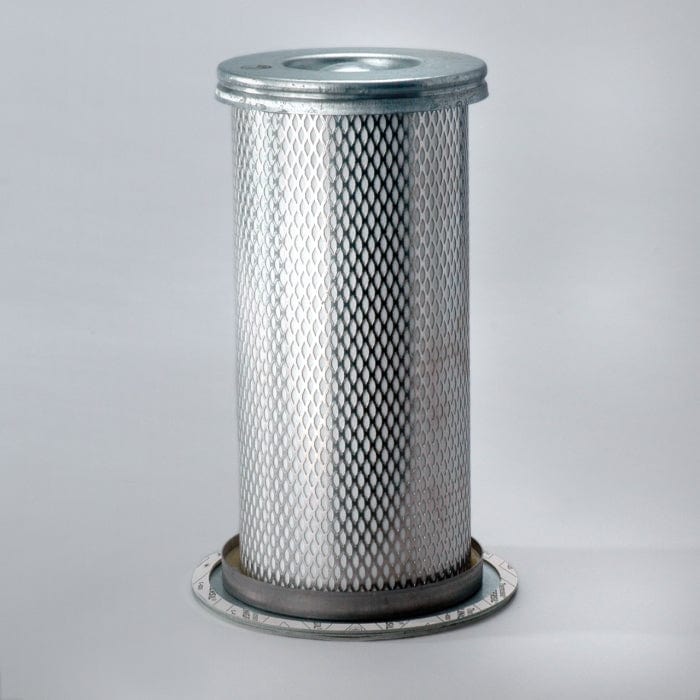

Air Oil Separator - Donaldson P525697
Air Oil Separator - Donaldson P525697
Regular price
£177.44
Regular price
Sale price
£177.44
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P525697
Air Oil SeparatorShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 146 mm (5.75 inch)
- Inner Diameter: 91.9 mm (3.62 inch)
- Length: 292 mm (11.50 inch)
- Flange Diameter: 181 mm (7.13 inch)
Packaged Dimensions
- Packaged Length: 0.215 m (8.60 inch)
- Packaged Width: 0.215 m (8.60 inch)
- Packaged Height: 0.383 m (15.30 inch)
- Packaged Weight: 2.277 kg (5.02 lb)
- Packaged Volume: 0.018 m3 (0.65 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 129700
- HTS Code: 8421310090
- UPC Code: 742330035917
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| FORD | 9576P525697 | |
| INGERSOLL RAND | 36845303 | |
| INGERSOLL RAND | 35843341 | |
| INGERSOLL RAND | 22402325 | |
| MECHANEQUIP | 03060712 | |
| MECHANEQUIP | 3060712 | |
| VMC | AS525697 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| INGERSOLL RAND P100 | - | COMPRESSOR | - | - P100 | - |
| INGERSOLL RAND P125 | - | COMPRESSOR | - | - P125 | - |
| INGERSOLL RAND P150 | - | COMPRESSOR | - | - P150 | - |
| INGERSOLL RAND P175 | - | COMPRESSOR | - | - P175 | - |
| INGERSOLL RAND P175WJDU | - | COMPRESSOR | - | JOHN DEERE 3029D | - |
| INGERSOLL RAND P185 | - | COMPRESSOR | - | - P185 | - |
