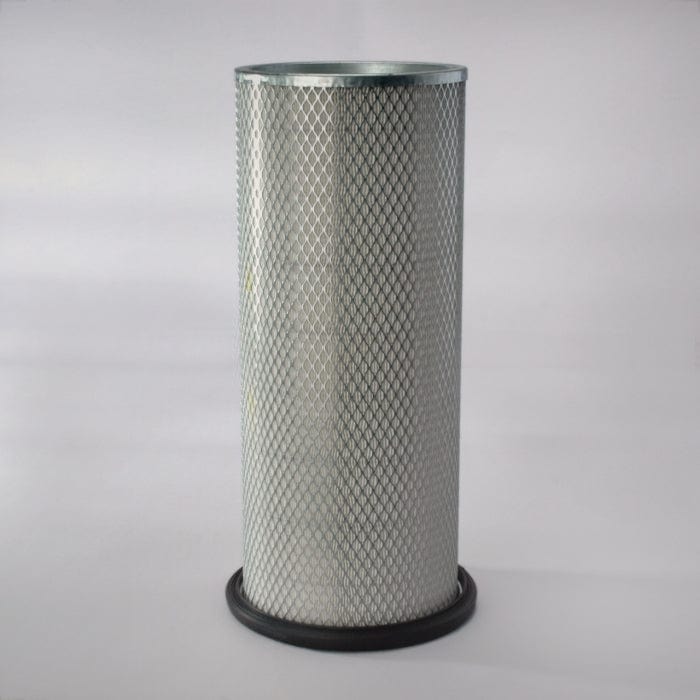

Air Filter, Safety - Donaldson P122425
Air Filter, Safety - Donaldson P122425
Regular price
£39.88
Regular price
Sale price
£39.88
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P122425
Air Filter, Safety| Outer Diameter | 7.64 inch (194.1 mm) |
| Inner Diameter | 6.04 inch (153.4 mm) |
| Length | 17.00 inch (431.8 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency Test Std | ISO 5011 |
| Type | Safety |
| Style | Round |
| Media Type | Safety |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 194.1 mm (7.64 inch)
- Inner Diameter: 153.4 mm (6.04 inch)
- Length: 431.8 mm (17.00 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency Test Std: ISO 5011
- Type: Safety
- Style: Round
- Media Type: Safety
Packaged Dimensions
- Packaged Length: 0.207 m (8.27 inch)
- Packaged Width: 0.197 m (7.87 inch)
- Packaged Height: 0.453 m (18.11 inch)
- Packaged Weight: 1.556 kg (3.43 lb)
- Packaged Volume: 0.019 m3 (0.68 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330010334
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 71368962 | |
| AMERICAN PARTS | 1304 | |
| AMERICAN PARTS | 93638 | |
| BIG A | 1304 | |
| BIG A | 93638 | |
| CASE/CASE IH | 680588C1 | |
| CASE/CASE IH | 906018T1 | |
| CATERPILLAR | 3I0156 | |
| COOPERS | AES2509 | |
| CYCLONE | PMA122425 | |
| DEUTZ | 71368962 | |
| DRESSER | 680588C1 | |
| FORD | 9576P122425 | |
| FURUKAWA | 680588C1 | |
| GPC | FC412 | |
| GUARDIAN | G122425 | |
| HAVAM | HD7445 | |
| INTERNATIONAL | 680588C2 | |
| INTERNATIONAL | 680588C1 | |
| KOEHRING | 21001055 | |
| KOMATSU | 680588C1 | |
| KOMATSU | 680588C2 | |
| KOMDRESCO SA | 680588C1 | |
| KRALINATOR | LA720 | |
| LOESING | 020976 | |
| LOESING | 20976 | |
| NELSON | 122245 | |
| NELSON | 122425 | |
| NELSON | 70149N | |
| NELSON | 70561N | |
| NELSON WINSLOW | 122425 | |
| QUAKER STATE | QSA1575SY | |
| REFILCO | AF2638 | |
| STEIGER | 906018T1 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686676 | |
| VMC | AF122425 | |
| WALGAHN-MOTORENTECHN | 00810668 | |
| WALGAHN-MOTORENTECHN | 810668 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO C62 | - | COMBINE | - | - C62 | - |
| AGCO R62 | - | COMBINE | R SERIES | CUMMINS QSC8.3 | - |
| AGCO R62 | - | COMBINE | R SERIES | - R62 | - |
| AGCO R62 | - | COMBINE | R SERIES | DEUTZ BF8L513 | - |
| AGCO R62 | - | COMBINE | R SERIES | CUMMINS 6CTA8.3 | - |
| AGCO R65 | - | COMBINE | R SERIES | - R65 | - |
| AGCO R72 | - | COMBINE | R SERIES | CUMMINS QSC8.3 | - |
| AGCO R72 | - | COMBINE | R SERIES | DEUTZ BF8L513 | - |
| CASE/CASE IH COUGAR | - | TRACTOR | - | - COUGAR | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT817C | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DVT800 | - |
| KOMATSU 560B | - | LOADER WHEELED | - | CUMMINS KT19 | - |
| KOMATSU 570 | - | EARTH MOVING EQUIPMENT | - | CUMMINS VTA28 | - |
| KOMATSU 570 | - | EARTH MOVING EQUIPMENT | - | - 570 | - |
| KOMATSU 970 | - | DOZER TRACKED | - | CUMMINS VTA28 | - |
| KOMATSU D100 | - | EARTH MOVING EQUIPMENT | - | - D100 | - |
| KOMATSU GD555 | - | GRADER | - | CUMMINS NTA855 | - |
| KOMATSU H100 | - | LOADER WHEELED | - | - H100 | - |
| KOMATSU L100 | - | EARTH MOVING EQUIPMENT | - | - L100 | - |
| KOMATSU TD25G | - | DOZER TRACKED | - | CUMMINS KT19 | - |
| KOMATSU TD25G | - | DOZER TRACKED | - | CUMMINS KT1150 | - |
| MASSEY FERGUSON MF9690 | - | COMBINE | MF 9600 SERIES | CUMMINS QSC | - |
| MASSEY FERGUSON MF9690 CITIUS | - | COMBINE | MF 9600 SERIES | SISU 84CTA | - |
| MASSEY FERGUSON MF9695 CITIUS | - | COMBINE | MF 9600 SERIES | SISU 84CTA | - |
| MASSEY FERGUSON MF9790 | - | COMBINE | MF 9700 SERIES | CUMMINS QSL9 | - |
| MASSEY FERGUSON MF9790 CITIUS | - | COMBINE | MF 9700 SERIES | SISU 84CTA | - |
| MASSEY FERGUSON MF9795 CITIUS | - | COMBINE | MF 9700 SERIES | SISU 84CTA | - |
