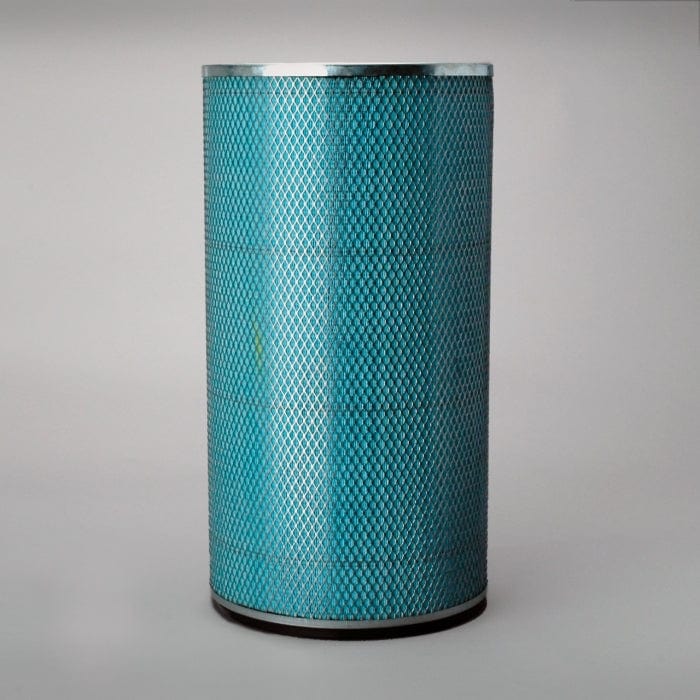

Air Filter, Safety - Donaldson P117781
Air Filter, Safety - Donaldson P117781
Regular price
£77.58
Regular price
Sale price
£77.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P117781
Air Filter, Safety| Outer Diameter | 11.86 inch (301.3 mm) |
| Inner Diameter | 10.26 inch (260.5 mm) |
| Length | 22.02 inch (559.3 mm) |
| Efficiency | 95 |
| Efficiency Test Std | ISO 5011 |
| Family | SRG |
| Type | Safety |
| Style | Round |
| Media Type | Safety |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 301.3 mm (11.86 inch)
- Inner Diameter: 260.5 mm (10.26 inch)
- Length: 559.3 mm (22.02 inch)
- Efficiency: 95
- Efficiency Test Std: ISO 5011
- Family: SRG
- Type: Safety
- Style: Round
- Media Type: Safety
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.315 m (12.60 inch)
- Packaged Height: 0.601 m (24.02 inch)
- Packaged Weight: 3.900 kg (8.60 lb)
- Packaged Volume: 0.062 m3 (2.21 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330009604
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP3521A | |
| AC DELCO | A902C | |
| AMERICAN MOTORS CORPORATION | SFA7781S | |
| AMERICAN MOTORS CORPORATION | 103653 | |
| AMERICAN PARTS | 1149 | |
| AMERICAN PARTS | 93239 | |
| ASTEC UNDERGROUND | 21000264 | |
| ATLAS COPCO | 1610634002 | |
| BIG A | 1149 | |
| BIG A | 93239 | |
| BUCYRUS | 65320 | |
| CASE/CASE IH | 1050506 | |
| CASE/CASE IH | P1050506 | |
| CASE/CASE IH | E150506 | |
| CASE/CASE IH | E1050506 | |
| CASE/CASE IH | E1050606 | |
| CASE/CASE IH | E1010506 | |
| CATERPILLAR | 3I0105 | |
| CATERPILLAR | 1W3636 | |
| CHARDONNET | 7211778100 | |
| CLARK | E4022650 | |
| COMPACTION AMERICA | 05821349 | |
| COMPACTION AMERICA | 5821349 | |
| COMPAIR | 001036053 | |
| COMPAIR | 9826250710002 | |
| CONTINENTAL | PCA1570SY | |
| COOPERS | AZA515 | |
| COOPERS | AES2023 | |
| CYCLONE | PMA117781 | |
| DART | 401PPP117781 | |
| DELUXE | 683AIR | |
| DELUXE | AF683 | |
| DELUXE | 683 | |
| DEUTZ | 1319779 | |
| DEUTZ | 01319779 | |
| DRESSER | VJ5176 | |
| DRILTECH | 103653 | |
| DRILTECH | 00103653 | |
| DRILTECH | 001036053 | |
| DRILTECH | 1036053 | |
| DRILTECH | 1036 | |
| ENMTP CPG | 5610968 | |
| EUCLID | E4022650 | |
| EUCLID | 4022650 | |
| EUCLID | 9016647 | |
| EUCLID | 9038349 | |
| EXMAN | SFA7781S | |
| EXMAN | 103653 | |
| FAUN | 0746714 | |
| FAUN | 746714 | |
| FG WILSON | 1000004398 | |
| FG WILSON | 3488511 | |
| GIF | GA720 | |
| GUARDIAN | G117781 | |
| GUASCOR | 7650215 | |
| GUASCOR | 7650282 | |
| HAVAM | HD6860 | |
| HITACHI | FTP117781 | |
| INDUCONTROL | AR1570SY | |
| INGERSOLL RAND | 35356146 | |
| INGERSOLL RAND | 52277391 | |
| INGERSOLL RAND | 52277399 | |
| JOHN DEERE | AZ104111 | |
| JOY | LT4215145 | |
| KENWORTH | 3040654 | |
| KENWORTH | 401PPP117781 | |
| KENWORTH | 3040616 | |
| KENWORTH | 3040644 | |
| KENWORTH | 3040615 | |
| KENWORTH | 3040648 | |
| KENWORTH | 3040653 | |
| KNECHT | AG156 | |
| KOMATSU | 5810112130 | |
| KOMATSU | 5810212130 | |
| KOMATSU | 581021213O | |
| KOMATSU | VJ5176 | |
| KOMDRESCO SA | 5810212130 | |
| KRALINATOR | LA617 | |
| LETOURNEAU | 7001330 | |
| LETOURNEAU | VA0010 | |
| LETOURNEAU | 4215145 | |
| LETOURNEAU | PB2101 | |
| LETOURNEAU | 4241604 | |
| LETOURNEAU | PB1569 | |
| LETOURNEAU | PB1400 | |
| LETOURNEAU | VJ5176 | |
| LIEBHERR | 553090414 | |
| LIEBHERR | 13011E2 | |
| LIEBHERR | 5610968 | |
| LIEBHERR | 1301100 | |
| LINDENBERG-ANLAGEN | MDONP117781 | |
| LOCKHEED | LK3521 | |
| LOCKHEED | AP3521A | |
| LOCKHEED | AP3521 | |
| LOESING | 020896 | |
| LOESING | 20896 | |
| MCCORMICK | P1050506 | |
| MCNEILUS | 3765711 | |
| MTU | XP52712100003 | |
| NELSON | 70121N | |
| NELSON | 117781 | |
| NELSON WINSLOW | 117781 | |
| NUTECH | SS022 | |
| ONAN | A029K622 | |
| ORENSTEIN & KOPPEL | 101081 | |
| ORENSTEIN & KOPPEL | 1499256 | |
| OSHKOSH | 3765711 | |
| P & H | 1046Z769 | |
| PACCAR | 3040653 | |
| PACCAR | 3040654 | |
| PACCAR | 3040615 | |
| PACCAR | 3040616 | |
| PACCAR | 3040644 | |
| PACCAR | 3040648 | |
| PERKINS | CH11401 | |
| POCLAIN | 1050506 | |
| POCLAIN | E1050506 | |
| POSTAS | HF1409 | |
| REFILCO | AF2239 | |
| RUSTON BUCYRUS | 46140255 | |
| SANDVIK | 001036053 | |
| SDMO | 330570137 | |
| TAMROCK | 001036053 | |
| TEREX | 1499256 | |
| TEREX | 09038349 | |
| TEREX | 101081 | |
| TEREX | 9038349 | |
| TEREX | E1010506 | |
| TEREX | E1050606 | |
| TESMEC | V004505100 | |
| UNIT RIG EQUIPMENT | 1000445 | |
| UNIT RIG EQUIPMENT | 901620 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686604 | |
| VMC | AF117781 | |
| VME | 4022650 | |
| VME | 4034055 | |
| WABCO | VJ5176 | |
| WABCO | 7001330 | |
| WABCO | VA0010 | |
| WALGAHN-MOTORENTECHN | 00810627 | |
| WALGAHN-MOTORENTECHN | 810627 | |
| WIRTGEN | 95384 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO ROC L6 | - | DRILLING EQUIPMENT | - | CATERPILLAR C11 | - |
| BUCYRUS SKF 11 | - | DRILLING EQUIPMENT | - | - SKF 11 | - |
| CASE/CASE IH 1000CA | - | EXCAVATOR | - | DEUTZ BF12L413F | - |
| CASE/CASE IH 300CK | - | EXCAVATOR | - | DEUTZ F12L413 | - |
| CASE/CASE IH 300CL | - | EXCAVATOR TRACKED | - | DEUTZ F12L413 | - |
| CASE/CASE IH 350CK | - | EXCAVATOR | - | DEUTZ F12L413 | - |
| CASE/CASE IH B SERIES | - | EXCAVATOR | - | DEUTZ F12L413 | - |
| CASE/CASE IH HC300 | - | EXCAVATOR TRACKED | - | DEUTZ BF12L413F | - |
| CASE/CASE IH HC300 | - | EXCAVATOR TRACKED | - | DEUTZ F4L812 | - |
| CATERPILLAR 3524B | - | ENGINE | - | - 3524B | - |
| CATERPILLAR 785C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512BTA | - |
| CATERPILLAR 787B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 789B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 797 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TAE | - |
| DRILTECH D40K | - | DRILLING EQUIPMENT | - | CATERPILLAR 3406 | - |
| DRILTECH D40KII | - | DRILLING EQUIPMENT | - | CATERPILLAR 3408 | - |
| DRILTECH D50K | - | DRILLING EQUIPMENT | - | - D50K | - |
| EUCLID R100 | - | HAUL TRUCK | - | - R100 | - |
| GOMSELMASH 860 | - | HARVESTER | POLESIE SERIES | - 860 | - |
| KOMATSU 830E | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| KOMATSU 830E-AC | - | HAUL TRUCK | - | KOMATSU SDA16V160 | - |
| KOMATSU 830E1AC | - | HAUL TRUCK | - | KOMATSU SDA16V160 | - |
| KOMATSU 930E-4 | - | DUMP TRUCK | - | KOMATSU SSDA16V160 | - |
| KOMATSU 930E-4SE | - | DUMP TRUCK | - | KOMATSU SSDA18V170 | - |
| KOMATSU HD1200 | - | DUMP TRUCK | - | CUMMINS KTA2300 | - |
| KOMATSU HD1200M-1 | - | HAUL TRUCK | - | CUMMINS KTA3067 | - |
| KOMATSU HD1200M-1 | - | HAUL TRUCK | - | KOMATSU SA12V170-1 | - |
| KOMATSU HD1200M-1 | - | HAUL TRUCK | - | CUMMINS KTA2300 | - |
| KOMATSU HD1600 | - | DUMP TRUCK | - | CUMMINS KTA3067 | - |
| KOMATSU HD1600M-1 | - | DUMP TRUCK | - | CUMMINS KTA3067 | - |
| LIEBHERR R984B | - | EXCAVATOR TRACKED | R SERIES | CUMMINS KTTA19 | - |
| LIEBHERR R984C | - | EXCAVATOR TRACKED | R SERIES | CUMMINS QSK19 | - |
| ROSTSELMASH 1701 | - | HARVESTER | RSM | - 1701 | - |
| TEREX 33-09 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-71 | - |
| TEREX 33-09AA | - | HAUL TRUCK | - | - 33-09AA | - |
| WIRTGEN W 2200 | 2010 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C27 ATAAC | - |
| WIRTGEN WR 2400 | 2005 | ROAD STABILIZER | WR SERIES | MERCEDES-BENZ OM 502 LA AG3 | - |
| ZETTELMEYER 1000 | - | CONSTRUCTION EQUIPMENT | - | - 1000 | - |
