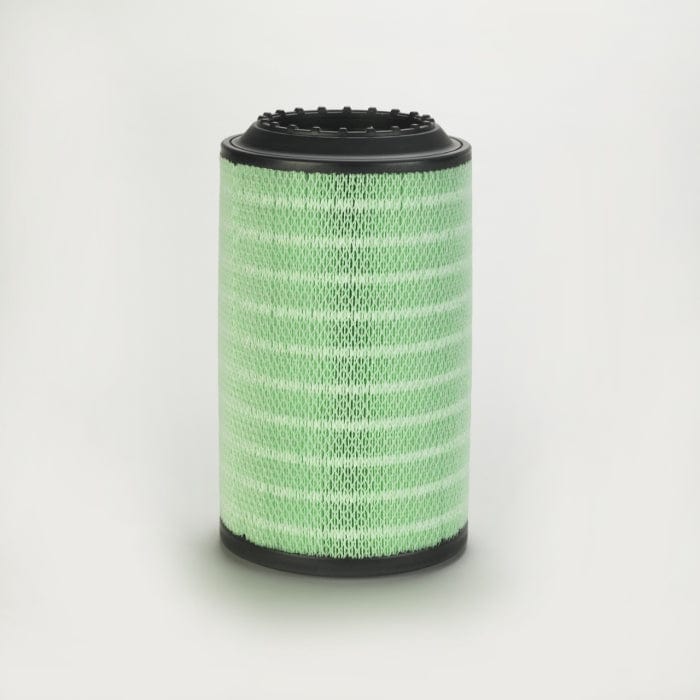

Air Filter, Primary Round - Donaldson P784525
Air Filter, Primary Round - Donaldson P784525
Regular price
£56.38
Regular price
Sale price
£56.38
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P784525
Air Filter, Primary Round| Outer Diameter | 10.47 inch (266 mm) |
| Inner Diameter | 6.61 inch (168 mm) |
| Length | 17.15 inch (435.5 mm) |
| Overall Length | 18.58 inch (472 mm) |
| Type | Primary |
| Style | Round |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 266 mm (10.47 inch)
- Inner Diameter: 168 mm (6.61 inch)
- Length: 435.5 mm (17.15 inch)
Packaged Dimensions
- Packaged Length: 0.270 m (10.80 inch)
- Packaged Width: 0.293 m (11.70 inch)
- Packaged Height: 0.515 m (20.60 inch)
- Packaged Weight: 2.971 kg (6.55 lb)
- Packaged Volume: 0.042 m3 (1.51 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069100-05
- HTS Code: 84213100 90
- UPC Code: 742330163559
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BOSCH-REXROTH | F026400247 | |
| DAF | 1921967 | |
| DAF | 1933740 | |
| DAF | 1726060 | |
| DAF | 1789291 | |
| DAF | 1657523 | |
| DAF | 1363024 | |
| DAF | 11657523 | |
| DAF | 1640921 | |
| DAF | 1638006 | |
| DAF | 2114402 | |
| DAF TRP | 1536226 | |
| DAF TRP | 1529632 | |
| GPC | FC2135 | |
| GT PIECES ET SERVICES | 2242446 | |
| KNECHT | LX1457 | |
| WISMET | WAI20062 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DAF CF65.220 | 2006 | TRUCK | CF65 | PACCAR GR165 | EURO 3, EURO 4 |
| DAF CF65.250 | 2006 | TRUCK | CF65 | PACCAR GR185 | EURO 3, EURO 4 |
| DAF CF65.290 | 2006 | TRUCK | CF65 | PACCAR GR210 | EURO 3, EURO 4 |
| DAF CF85.290 | 2013 | TRUCK | CF86 | PACCAR MX11 | EURO 6 |
| DAF CF85.330 | 2013 | TRUCK | CF86 | PACCAR MX11 | EURO 6 |
| DAF CF85.340 | 2001 | TRUCK | CF85 | DAF XE250C | EURO 3 |
| DAF CF85.360 | 2006 | TRUCK | CF85 | PACCAR MX265 | EURO 4, EURO 5 EEV |
| DAF CF85.360 | 2013 | TRUCK | CF85 | PACCAR MX265S | EURO 5 |
| DAF CF85.370 | 2013 | TRUCK | CF86 | PACCAR MX11 | EURO 6 |
| DAF CF85.380 | 2001 | TRUCK | CF85 | DAF XE280C | EURO 3 |
| DAF CF85.400 | 2013 | TRUCK | CF86 | PACCAR MX11 | EURO 6 |
| DAF CF85.410 | 2006 | TRUCK | CF85 | PACCAR MX300S | EURO 4, EURO 5 EEV |
| DAF CF85.410 | 2013 | TRUCK | CF85 | PACCAR MX300S | EURO 5 |
| DAF CF85.410 | 2013 | TRUCK | CF86 | PACCAR MX13 | EURO 6 |
| DAF CF85.430 | 2001 | TRUCK | CF85 | DAF XE315C | EURO 3 |
| DAF CF85.440 | 2013 | TRUCK | CF86 | PACCAR MX11 | EURO 6 |
| DAF CF85.460 | 2006 | TRUCK | CF85 | PACCAR MX340S | EURO 4, EURO 5 EEV |
| DAF CF85.460 | 2013 | TRUCK | CF85 | PACCAR MX340S | EURO 5 |
| DAF CF85.460 | 2013 | TRUCK | CF86 | PACCAR MX13 | EURO 6 |
| DAF CF85.510 | 2013 | TRUCK | CF85 | PACCAR MX375S | EURO 5 |
| DAF CF85.510 | 2013 | TRUCK | CF86 | PACCAR MX13 | EURO 6 |
| DAF CF85.510 | 2006 | TRUCK | CF85 | PACCAR MX375S | EURO 4, EURO 5 EEV |
| GINAF X2219L | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X2219L | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X2219L | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X2220L | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X2220L | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X2220L | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X2221L | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X2221L | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X2221L | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X2222L | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X2222L | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X2222L | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X2223L | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X2223L | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X2223L | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X2225L | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X2225L | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X2225L | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3232S | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3232S | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3232S | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3233S | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3233S | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3233S | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3238 | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3238 | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3238 | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3329 | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3329 | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3329 | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3331 | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3331 | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3331 | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3333 | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3333 | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3333 | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3335 | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3335 | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3335 | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X3338 | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X3338 | 1999 | TRUCK | X SERIES | DAF XE250C | - |
| GINAF X3338 | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4241S | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4241S | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X4243S | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4243S | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X4245TS | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4245TS | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X4343LS | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X4343LS | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4345TS | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X4345TS | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4446TS | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4449B | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X4449B | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X5250TS | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X5250TS | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X5350TS | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X5350TS | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X5364T | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X5364T | 1999 | TRUCK | X SERIES | DAF XE280C | - |
| GINAF X5450S | 1999 | TRUCK | X SERIES | DAF XE315C | - |
| GINAF X5460B | 1999 | TRUCK | X SERIES | DAF XE315C | - |
