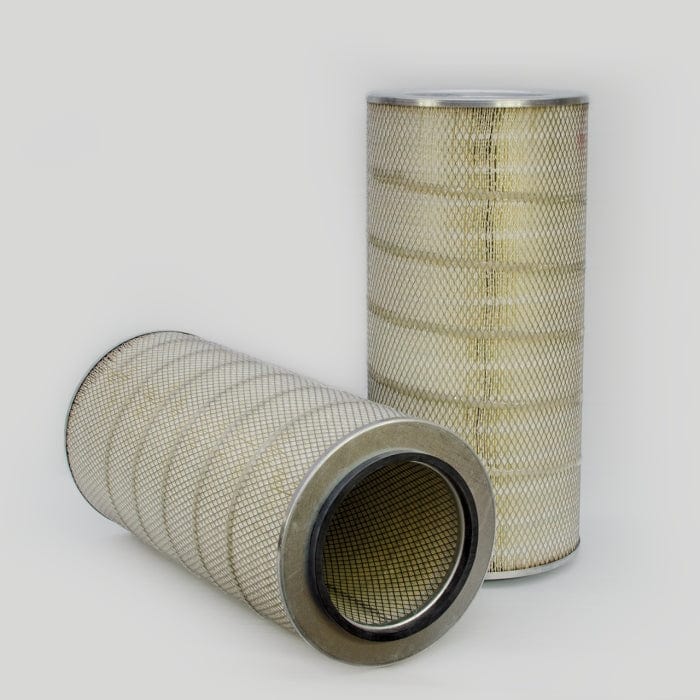

Air Filter, Primary Round - Donaldson P780519
Air Filter, Primary Round - Donaldson P780519
Regular price
£83.06
Regular price
Sale price
£83.06
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P780519
Air Filter, Primary Round| Outer Diameter | 10.65 inch (270.5 mm) |
| Inner Diameter | 6.97 inch (177 mm) |
| Length | 22.44 inch (570 mm) |
| Overall Length | 22.94 inch (582.7 mm) |
| Bolt Hole Diameter | 0.41 inch (10.3 mm) |
| Efficiency | 99.95 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 270.5 mm (10.65 inch)
- Inner Diameter: 177 mm (6.97 inch)
- Length: 570 mm (22.44 inch)
- Overall Length: 582.7 mm (22.94 inch)
- Bolt Hole Diameter: 10.3 mm (0.41 inch)
- Efficiency: 99.95
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.273 m (10.90 inch)
- Packaged Width: 0.273 m (10.90 inch)
- Packaged Height: 0.583 m (23.30 inch)
- Packaged Weight: 3.833 kg (8.45 lb)
- Packaged Volume: 0.045 m3 (1.60 ft3)
Other Information
- Country of Origin: United Kingdom
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330112663
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CLEAN | MA798 | |
| COOPERS | AEM2040 | |
| CROSLAND | 9743 | |
| DIAMOND | DX227 | |
| FIAAM | FL16783 | |
| FIAAM | FLI6783 | |
| GIF | GA467 | |
| GPC | FC547 | |
| GT PIECES ET SERVICES | 2242173 | |
| KNECHT | LX658 | |
| LEYLAND-DAF (LDV) | BBU8343 | |
| PURFLUX | A951 | |
| VOLVO | 1660376 | |
| VOLVO | 16603763 | |
| VOLVO | 16603765 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| VOLVO CH230 | 1984 | TRUCK | - | VOLVO TD121GD | - |
| VOLVO F10 | 1982 | TRUCK | F 10 SERIES | VOLVO TD100G | - |
| VOLVO F10 | 1985 | TRUCK | F 10 SERIES | VOLVO TD101F | - |
| VOLVO F10 | 1987 | TRUCK | F 10 SERIES | VOLVO TD102F | - |
| VOLVO F10 | 1991 | TRUCK | F 10 SERIES | VOLVO TD103E | - |
| VOLVO F10 | 1991 | TRUCK | F 10 SERIES | VOLVO TD103ES | - |
| VOLVO F12 | 1983 | TRUCK | F 12 SERIES | VOLVO TD121F | - |
| VOLVO F12 | 1987 | TRUCK | F 12 SERIES | VOLVO TD122 | - |
