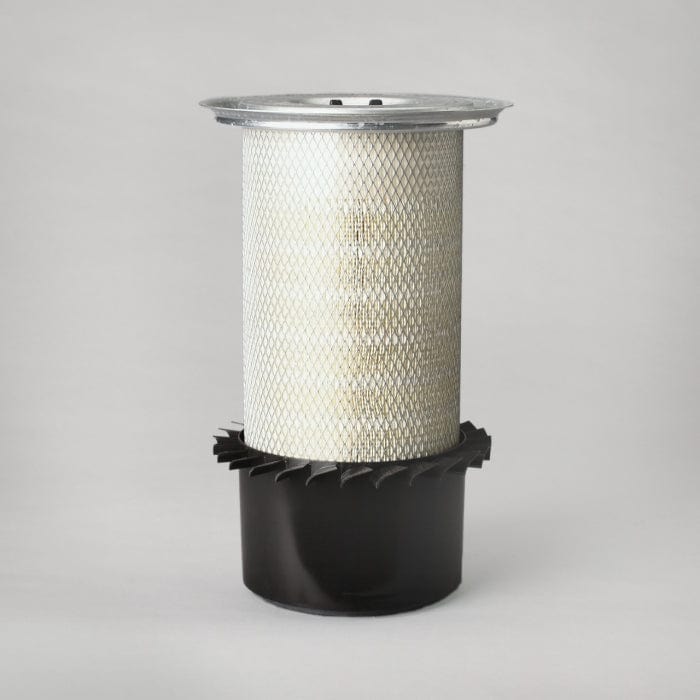

Air Filter, Primary Round - Donaldson P772597
Air Filter, Primary Round - Donaldson P772597
Regular price
£51.78
Regular price
Sale price
£51.78
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P772597
Air Filter, Primary Round| Outer Diameter | 7.92 inch (201.1 mm) |
| Inner Diameter | 5.31 inch (134.9 mm) |
| Length | 17.36 inch (441 mm) |
| Overall Length | 17.86 inch (453.7 mm) |
| Bolt Hole Diameter | 0.59 inch (15 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Primary Application | KOMATSU 2050173570 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 201.1 mm (7.92 inch)
- Inner Diameter: 134.9 mm (5.31 inch)
- Length: 441 mm (17.36 inch)
- Overall Length: 453.7 mm (17.86 inch)
- Bolt Hole Diameter: 15 mm (0.59 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: KOMATSU 2050173570
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.323 m (12.90 inch)
- Packaged Width: 0.328 m (13.10 inch)
- Packaged Height: 0.493 m (19.70 inch)
- Packaged Weight: 3.084 kg (6.80 lb)
- Packaged Volume: 0.054 m3 (1.93 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-04
- HTS Code: 84213100 90
- UPC Code: 742330048276
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 94780 | |
| CATERPILLAR | 3I2030 | |
| COOPERS | AEK2474 | |
| COOPERS | AEK2574 | |
| FODEN | Y05774811 | |
| GPC | FC581K | |
| GREYFRIARS | 1373AF | |
| HAVAM | HD7570 | |
| KOMATSU | 2050173750 | |
| KOMATSU | 2050173570 | |
| KOMATSU | 205017357 | |
| KOMATSU | 2050173570P | |
| KRALINATOR | LA1862F | |
| LOESING | 24044 | |
| LOESING | 024044 | |
| M.D.F. SARL | MDA9931 | |
| TODD GT | 2242284 | |
| VMC | AF772597 | |
| WALGAHN-MOTORENTECHN | 00811756 | |
| WALGAHN-MOTORENTECHN | 811756 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| KOMATSU PC200EN-6K | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E-1AC | - |
| KOMATSU PC210 | - | EXCAVATOR TRACKED | - | - PC210 | - |
| KOMATSU PC210-3 | - | EXCAVATOR TRACKED | - | - PC210-3 | - |
| KOMATSU PC210-5K | - | EXCAVATOR TRACKED | - | PERKINS 1006.6T | - |
| KOMATSU PC210-6K | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E-1AA | - |
| KOMATSU PC210-6K | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E-1AB | - |
| KOMATSU PC210LC | - | EXCAVATOR TRACKED | - | CUMMINS 6BT5.9 | - |
| KOMATSU PC210LC-5K | - | EXCAVATOR TRACKED | - | PERKINS 1006.6TLR | - |
| KOMATSU PC210LC-6K | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E-1AB | - |
| KOMATSU PC220 | - | EXCAVATOR TRACKED | - | KOMATSU S6D105-1 | - |
| KOMATSU PC228 | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E | - |
| KOMATSU PC228USLC-1 | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E | - |
| KOMATSU PC228USLC-2 | - | EXCAVATOR TRACKED | - | KOMATSU S6D102E | - |
| KOMATSU PC240 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D102 | - |
| KOMATSU PC240-5K | - | EXCAVATOR TRACKED | - | PERKINS 1006.6T | - |
| KOMATSU PC240-6K | - | EXCAVATOR TRACKED | - | - PC240-6K | - |
| KOMATSU PC240-6NLC | - | EXCAVATOR TRACKED | PC SERIES | KOMATSU SA6D102 | - |
| KOMATSU PC240LC | - | EXCAVATOR TRACKED | - | - PC240LC | - |
| KOMATSU PC240LC-6K | - | EXCAVATOR TRACKED | - | KOMATSU SA6D102E-1AA | - |
| KOMATSU PC240NLC-5K | - | EXCAVATOR TRACKED | - | PERKINS 1006.6T2 | - |
| KOMATSU PC240NLC-6K | - | EXCAVATOR TRACKED | - | KOMATSU SA6D102E-1AA | - |
| KOMATSU PC250LC-6 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D95L | - |
| KOMATSU PC250LC-6LC | - | EXCAVATOR TRACKED | - | - PC250LC-6LC | - |
| KOMATSU PC290 | - | EXCAVATOR TRACKED | - | KOMATSU S6D102 | - |
