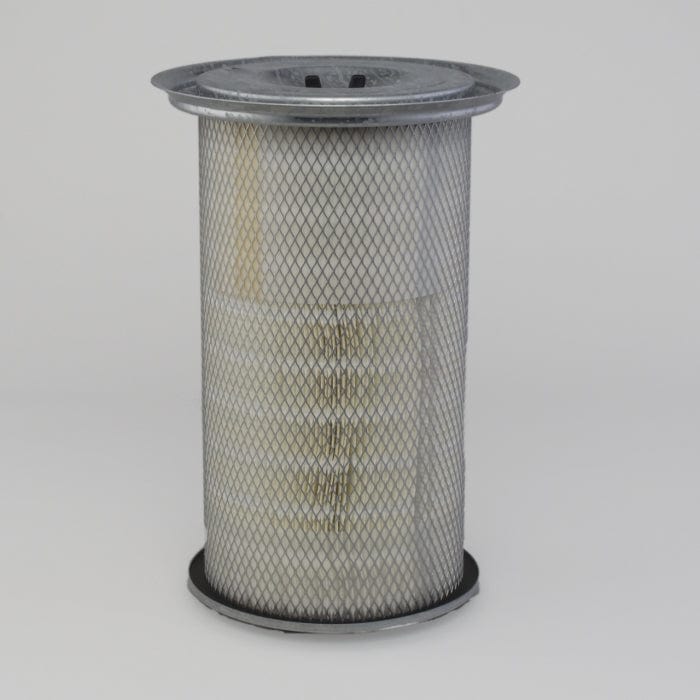

Air Filter, Primary Round - Donaldson P772530
Air Filter, Primary Round - Donaldson P772530
Regular price
£87.00
Regular price
Sale price
£87.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P772530
Air Filter, Primary Round| Outer Diameter | 9.22 inch (234.1 mm) |
| Inner Diameter | 4.84 inch (122.9 mm) |
| Length | 15.98 inch (405.9 mm) |
| Overall Length | 16.48 inch (418.6 mm) |
| Bolt Hole Diameter | 0.59 inch (15 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 234.1 mm (9.22 inch)
- Inner Diameter: 122.9 mm (4.84 inch)
- Length: 405.9 mm (15.98 inch)
- Overall Length: 418.6 mm (16.48 inch)
- Bolt Hole Diameter: 15 mm (0.59 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.330 m (13.20 inch)
- Packaged Width: 0.330 m (13.20 inch)
- Packaged Height: 0.430 m (17.20 inch)
- Packaged Weight: 3.039 kg (6.70 lb)
- Packaged Volume: 0.048 m3 (1.73 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330048047
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | D46480035 | |
| CASE/CASE IH | 300137988 | |
| CASE/CASE IH | 1930786 | |
| CATERPILLAR | 3I1497 | |
| CATERPILLAR | 3I1466 | |
| DRILTECH | 86529569 | |
| DRILTECH | 96529569 | |
| DRONNINGBORG | 46480035 | |
| FIAT | 221190599 | |
| FIAT | 22190599 | |
| FIAT | 1930786 | |
| FIAT | 300137988 | |
| FODEN | Y05769600 | |
| FODEN | Y05765112 | |
| HAVAM | HD9895 | |
| HAVAM | HD9235 | |
| HITACHI | 1930786 | |
| LOESING | 021308 | |
| LOESING | 21308 | |
| LOESING | 021864 | |
| LOESING | 21864 | |
| NEW HOLLAND | 1473124 | |
| NEW HOLLAND | 1930786 | |
| NEW HOLLAND | 300137988 | |
| SAME | 01021830 | |
| SAME | 001021830 | |
| SAME | 1021830 | |
| SANDVIK | SC86529569 | |
| TECNO COMP | TM249 | |
| VIBROMAX | 0725060721 | |
| VIBROMAX | 725060721 | |
| VIRGIS | CH12790 | |
| VMC | AF772530 | |
| WALGAHN-MOTORENTECHN | 00811542 | |
| WALGAHN-MOTORENTECHN | 00811594 | |
| WALGAHN-MOTORENTECHN | 811594 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| NEW HOLLAND F130 | - | TRACTOR | DT WINNER | IVECO 8065.25 | - |
| NEW HOLLAND F140 | - | TRACTOR | DT WINNER | - F140 | - |
| SAME RUBIN 120 | - | TRACTOR | - | SAME 1000.6WT | - |
| SAME RUBIN 150 | - | TRACTOR | - | SAME 1000.6WTI | - |
