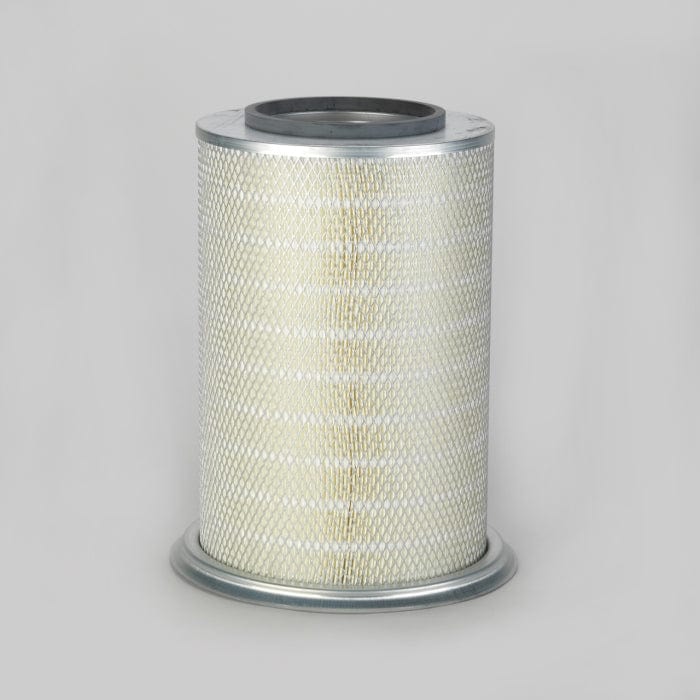

Air Filter, Primary Round - Donaldson P772524
Air Filter, Primary Round - Donaldson P772524
Regular price
£71.82
Regular price
Sale price
£71.82
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P772524
Air Filter, Primary Round| Outer Diameter | 10.41 inch (264.3 mm) |
| Inner Diameter | 6.04 inch (153.3 mm) |
| Length | 15.51 inch (394 mm) |
| Overall Length | 15.98 inch (406 mm) |
| Bolt Hole Diameter | 0.59 inch (15 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 264.3 mm (10.41 inch)
- Inner Diameter: 153.3 mm (6.04 inch)
- Length: 394 mm (15.51 inch)
- Overall Length: 406 mm (15.98 inch)
- Bolt Hole Diameter: 15 mm (0.59 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.325 m (13.00 inch)
- Packaged Width: 0.325 m (13.00 inch)
- Packaged Height: 0.428 m (17.10 inch)
- Packaged Weight: 3.794 kg (8.37 lb)
- Packaged Volume: 0.047 m3 (1.67 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330048023
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 3216707901 | |
| BABCOCK MARINE (ROSYTH) | 2940015008428 | |
| BERGERAT MONNOYEUR | E1145 | |
| CASE/CASE IH | 700052343 | |
| CASE/CASE IH | 9965158 | |
| CASE/CASE IH | 1930785 | |
| CASE/CASE IH | 321523550 | |
| CASE/CASE IH | 700056048 | |
| CATERPILLAR | 3I1469 | |
| CHARDONNET | 7277152400 | |
| DAEWOO | 94749003 | |
| DEMAG | M1849135 | |
| DRILTECH | 88122929 | |
| DRILTECH | 86891509 | |
| ECL | 232847 | |
| EIMCO | 69034148 | |
| ENMTP CPG | 7409575 | |
| ENMTP CPG | 7403935 | |
| FIAT | 7700052343 | |
| FIAT | 700052343 | |
| FIAT | 1849135 | |
| FIAT | 1930785 | |
| FIAT | 321523550 | |
| FIAT | 1930857 | |
| FIAT | 700056048 | |
| FODEN | Y05780011 | |
| FODEN | Y05763407 | |
| GPC | FC659 | |
| HAVAM | HD9238 | |
| HBM-NOBAS | 9343014 | |
| HITACHI | 1930857 | |
| HITACHI | 1930785 | |
| HITACHI | 700052343 | |
| HITACHI | 700056048 | |
| HYDREMA | 580140 | |
| HYSTER | S007932020 | |
| HYSTER | S7932020 | |
| HYSTER | 2043588 | |
| KALMAR | 807201672P | |
| KOMATSU | M1849135 | |
| LIEBHERR | 7409575 | |
| LIEBHERR | 7403953 | |
| LIEBHERR | 7403935 | |
| LOESING | 21904 | |
| LOESING | 021440 | |
| LOESING | 21440 | |
| LOESING | 021904 | |
| M.D.F. SARL | MDA7468 | |
| NACCO MATERIALS | 8508397 | |
| NEW HOLLAND | 1930785 | |
| NEW HOLLAND | 700056048 | |
| NEW HOLLAND | 700052343 | |
| NEW HOLLAND | 321523550 | |
| ORENSTEIN & KOPPEL | 1499150 | |
| ORENSTEIN & KOPPEL | 1869092 | |
| ORENSTEIN & KOPPEL | 186909200 | |
| ORENSTEIN & KOPPEL | 101310 | |
| ORENSTEIN & KOPPEL | 8300375 | |
| OTTAWA TRUCK | 807201672 | |
| PERKINS | OE45756 | |
| RENAULT VI | 5001867680 | |
| RENAULT VI | 6005008356 | |
| SAME | 943400 | |
| SAME | 00943400 | |
| TAMROCK | 88122929 | |
| TEREX | 1499150 | |
| TEREX | 101310 | |
| TROJAN | 186909200 | |
| VALMET | 807201672 | |
| VMC | AF772524 | |
| VOLVO | 020002287121 | |
| VOLVO | 20002287121 | |
| WALGAHN-MOTORENTECHN | 811591 | |
| WALGAHN-MOTORENTECHN | 00811536 | |
| WALGAHN-MOTORENTECHN | 00811591 | |
| YALE | 580075558 | |
| ZETTELMEYER | 2287121 | |
| ZETTELMEYER | 22871217 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HITACHI FH220 | - | EXCAVATOR TRACKED | - | FIAT 8365SI11 | - |
| HITACHI FH220.3 | - | EXCAVATOR TRACKED | - | FIAT 8365SI11 | - |
| HITACHI FH300 | - | EXCAVATOR TRACKED | - | FIAT 8365SI11 | - |
| HITACHI FH300LC | - | EXCAVATOR TRACKED | - | FIAT 8365SI11 | - |
| LIEBHERR LR632 | - | LOADER TRACKED | - | LIEBHERR D926T | - |
| LIEBHERR PR724L | - | TRACTOR TRACKED | PR SERIES | LIEBHERR D934LA6 | - |
| LIEBHERR PR724LGB | - | TRACTOR TRACKED | PR SERIES | LIEBHERR D934LA6 | - |
| LIEBHERR PR724XL | - | TRACTOR TRACKED | PR SERIES | LIEBHERR D934LA6 | - |
| LIEBHERR PR734L | - | TRACTOR TRACKED | PR SERIES | LIEBHERR D936LA6 | - |
| LIEBHERR PR734LGB | - | TRACTOR TRACKED | PR SERIES | LIEBHERR D936LA6 | - |
| LIEBHERR PR734XL | - | TRACTOR TRACKED | PR SERIES | LIEBHERR D936LA6 | - |
| SISU TD5ECR | - | CONTAINER CARRIER | - | CUMMINS 6CT8.3 | - |
