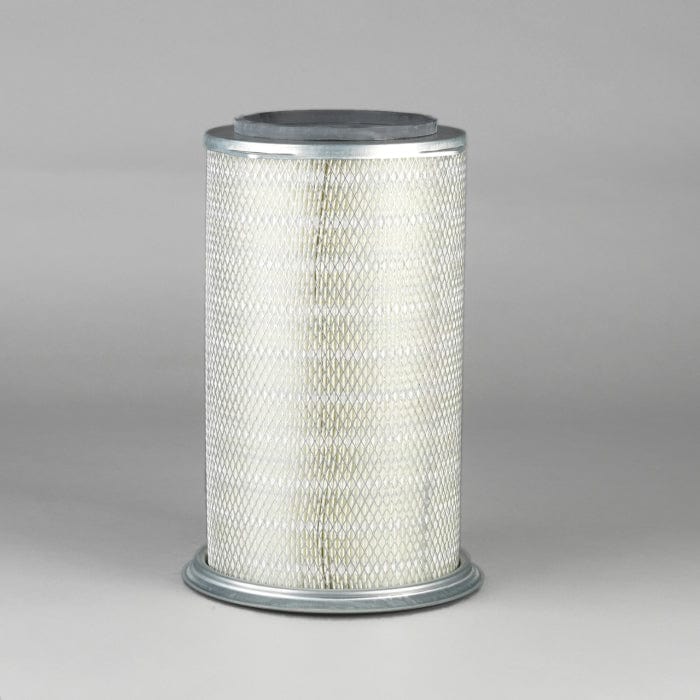

Air Filter, Primary Round - Donaldson P772522
Air Filter, Primary Round - Donaldson P772522
Regular price
£79.82
Regular price
Sale price
£79.82
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P772522
Air Filter, Primary Round| Outer Diameter | 9.22 inch (234.2 mm) |
| Inner Diameter | 4.84 inch (122.9 mm) |
| Length | 15.51 inch (393.9 mm) |
| Overall Length | 15.98 inch (405.9 mm) |
| Bolt Hole Diameter | 0.59 inch (15 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 234.2 mm (9.22 inch)
- Inner Diameter: 122.9 mm (4.84 inch)
- Length: 393.9 mm (15.51 inch)
- Overall Length: 405.9 mm (15.98 inch)
- Bolt Hole Diameter: 15 mm (0.59 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.323 m (12.90 inch)
- Packaged Width: 0.323 m (12.90 inch)
- Packaged Height: 0.430 m (17.20 inch)
- Packaged Weight: 3.236 kg (7.14 lb)
- Packaged Volume: 0.046 m3 (1.66 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-04
- HTS Code: 84213100 90
- UPC Code: 742330048009
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS | 3216708201 | |
| ATLAS COPCO | 3216708201 | |
| BOECKER-WANDREI | 519408 | |
| CASE/CASE IH | P1950582 | |
| CASE/CASE IH | 1849133 | |
| CASE/CASE IH | 300138019 | |
| CASE/CASE IH | 1930784 | |
| CASE/CASE IH | M2150534 | |
| CATERPILLAR | 3I1467 | |
| DAEWOO | 94749001 | |
| DRESSER | 140051H11 | |
| DRESSER | 1400512H1 | |
| DRILTECH | 4710045 | |
| EIMCO | 04710045 | |
| FIAT | 1849133 | |
| FIAT | 300138019 | |
| FREIGHTLINER | DNP772522 | |
| FURUKAWA | 1400512H1 | |
| FURUKAWA | 140051H11 | |
| HAVAM | HD9888 | |
| HITACHI | L01930784 | |
| HITACHI | 1930784 | |
| JOHN DEERE | RE33886 | |
| JOHN DEERE | DOX18913 | |
| JOHN DEERE | DDX18913 | |
| LIEBHERR | 7405233 | |
| LOESING | 020665 | |
| LOESING | 20665 | |
| M.D.F. SARL | MDA4668 | |
| MANITOU | 513343 | |
| MERCEDES-BENZ | A0030946304 | |
| NEW HOLLAND | 026P772522 | |
| NEW HOLLAND | 1930784 | |
| NEW HOLLAND | 300138019 | |
| ORENSTEIN & KOPPEL | 1487587 | |
| POCLAIN | M2150534 | |
| SAME | 242493801 | |
| SANDVIK | 04710045 | |
| STILL | 147777 | |
| TAMROCK | 04710045 | |
| TEREX | 1190147 | |
| TEREX | X1950582 | |
| VMC | AF772522 | |
| WALGAHN-MOTORENTECHN | 00811589 | |
| WALGAHN-MOTORENTECHN | 811589 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 688 | - | EXCAVATOR | - | - 688 | - |
| CASE/CASE IH 888 | - | EXCAVATOR TRACKED | - | - 888 | - |
| LIEBHERR LR611 LH | - | DOZER TRACKED | - | - LR611 LH | - |
| LIEBHERR LR611M | - | DOZER TRACKED | - | - LR611M | - |
| LIEBHERR LR621C | - | DOZER TRACKED | - | - LR621C | - |
| LIEBHERR LR622 | - | DOZER TRACKED | - | - LR622 | - |
| LIEBHERR LR622M | - | DOZER TRACKED | - | - LR622M | - |
| LIEBHERR PR721C | - | TRACTOR TRACKED | - | - PR721C | - |
| LIEBHERR PR721CM | - | TRACTOR TRACKED | - | - PR721CM | - |
| LIEBHERR PR722B | - | TRACTOR TRACKED | - | - PR722B | - |
