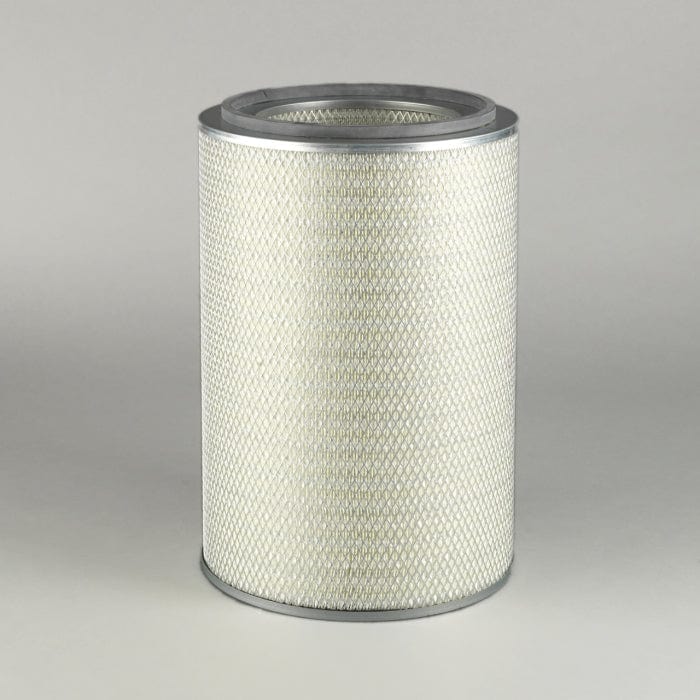

Air Filter, Primary Round - Donaldson P772521
Air Filter, Primary Round - Donaldson P772521
Regular price
£68.04
Regular price
Sale price
£68.04
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P772521
Air Filter, Primary Round| Outer Diameter | 12.09 inch (307.2 mm) |
| Inner Diameter | 7.71 inch (195.8 mm) |
| Length | 17.99 inch (457 mm) |
| Overall Length | 18.49 inch (469.7 mm) |
| Bolt Hole Diameter | 0.67 inch (17 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 195.8 mm (7.71 inch)
- Length: 457 mm (17.99 inch)
- Overall Length: 469.7 mm (18.49 inch)
- Bolt Hole Diameter: 17 mm (0.67 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.325 m (13.00 inch)
- Packaged Width: 0.323 m (12.90 inch)
- Packaged Height: 0.490 m (19.60 inch)
- Packaged Weight: 4.234 kg (9.34 lb)
- Packaged Volume: 0.053 m3 (1.90 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330047996
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BERGERAT MONNOYEUR | E1113 | |
| BERGERAT MONNOYEUR | E1113 | |
| DITCH WITCH | 5001797 | |
| FG WILSON | 901001 | |
| FIAT | 76054481 | |
| FODEN | Y05772211 | |
| FODEN | Y05764903 | |
| GPC | FC535 | |
| GT PIECES ET SERVICES | 2242043 | |
| HANOMAG TRAKTOREN | 3235399M1 | |
| HAVAM | HD9887 | |
| HAVAM | HD9225 | |
| HAVAM | HD9225 | |
| HITACHI | L76054481 | |
| HITACHI | 76054481 | |
| KNECHT | LX768 | |
| KNECHT | LX768 | |
| KOMATSU | 3235399M | |
| LOESING | 20111 | |
| LOESING | 020111 | |
| NEW HOLLAND | L76054481 | |
| NEW HOLLAND | 76054481 | |
| PERKINS | CV9685 | |
| PERKINS | CV9685 | |
| PERKINS | CV9685USEP778071720 | |
| RENAULT VI | 5001834600 | |
| RENAULT VI | 5010066304 | |
| RENAULT VI | 7701363755 | |
| SDMO | 330570077 | |
| SDMO | 330560270 | |
| SISU | 1293400401 | |
| VMC | AF772521 | |
| WALGAHN-MOTORENTECHN | 00811588 | |
| WALGAHN-MOTORENTECHN | 811588 | |
| WALGAHN-MOTORENTECHN | 00811533 | |
| WALGAHN-MOTORENTECHN | 811533 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DITCH WITCH HT220 | - | TRENCHER | - | CUMMINS QSB5.9 | - |
| RENAULT VI G300 MANAGER | 1990 | TRUCK | - | RENAULT VI MIDR 06.20.45 | - |
| RENAULT VI MAGNUM AE380 | 1990 | TRUCK | MAGNUM | RENAULT VI MIDR 06.35.40H | - |
| RENAULT VI MAGNUM AE385 | 1990 | TRUCK | MAGNUM | RENAULT VI MIDR 06.35.40 | - |
| RENAULT VI MAGNUM AE390 | 1997 | TRUCK | MAGNUM | RENAULT VI MIDR 06.24.65 | - |
| RENAULT VI MAGNUM AE420 | 1990 | TRUCK | MAGNUM | RENAULT VI MIDR 06.35.40 | - |
| RENAULT VI MAGNUM AE430 | 1996 | TRUCK | MAGNUM | RENAULT VI MIDR 06.24.65 | - |
| RENAULT VI MAGNUM AE470 | 1997 | TRUCK | MAGNUM | RENAULT VI MIDR 06.24.65 | - |
| RENAULT VI MAGNUM AE500 | 1990 | TRUCK | MAGNUM | MACK EE9 | - |
| RENAULT VI MAGNUM AE520 | 1990 | TRUCK | MAGNUM | MACK EE9 | - |
| RENAULT VI MAGNUM AE560 | 1997 | TRUCK | MAGNUM | MACK EE9 | - |
| RENAULT VI MAJOR R340 TI | 1991 | TRUCK | - | RENAULT VI MIDR 06.20.45 | - |
| RENAULT VI MAJOR R350 | 1990 | TRUCK | - | RENAULT VI MIDR 06.35.40G | - |
| RENAULT VI MAJOR R380 | 1990 | TRUCK | - | RENAULT VI MIDR 06.35.40H | - |
| RENAULT VI MAJOR R385 TI | 1991 | TRUCK | - | RENAULT VI MIDR 06.35.40 | - |
| RENAULT VI MAJOR R420 TI | 1992 | TRUCK | - | RENAULT VI MIDR 06.35.40 | - |
