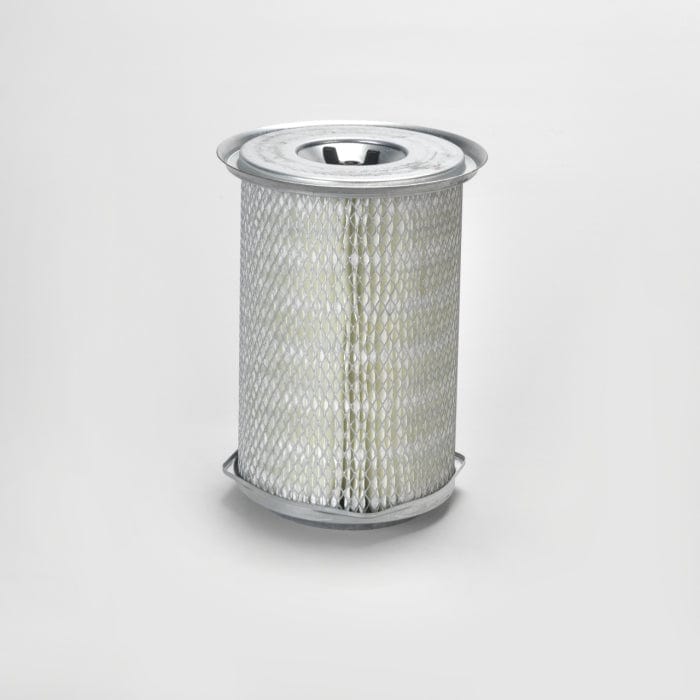

Air Filter, Primary Round - Donaldson P771590
Air Filter, Primary Round - Donaldson P771590
Regular price
£42.86
Regular price
Sale price
£42.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P771590
Air Filter, Primary Round| Outer Diameter | 6.97 inch (177 mm) |
| Inner Diameter | 3.46 inch (88 mm) |
| Length | 10.57 inch (268.5 mm) |
| Overall Length | 11.10 inch (282 mm) |
| Bolt Hole Diameter | 0.59 inch (15 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 177 mm (6.97 inch)
- Inner Diameter: 88 mm (3.46 inch)
- Length: 268.5 mm (10.57 inch)
Packaged Dimensions
- Packaged Length: 0.223 m (8.90 inch)
- Packaged Width: 0.220 m (8.80 inch)
- Packaged Height: 0.305 m (12.20 inch)
- Packaged Weight: 1.356 kg (2.99 lb)
- Packaged Volume: 0.015 m3 (0.55 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330047880
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1560C | |
| AGCO | 3595500M1 | |
| BIG A | 94382 | |
| DEUTZ | 3595500M1 | |
| FAMEL | FR1154 | |
| FODEN | Y05764707 | |
| GPC | FC574 | |
| GREYFRIARS | 1572A | |
| GUD | ADG803 | |
| HAVAM | 13873 | |
| HAVAM | 00013873 | |
| KRALINATOR | LA1487 | |
| LOESING | 020140 | |
| LOESING | 20140 | |
| M.D.F. SARL | MDA3798 | |
| MASSEY FERGUSON | 3595500M1 | |
| OLSSONS I ELLOS AB | 3595500 | |
| VAPORMATIC | VPD7052 | |
| VMC | AF771590 | |
| WALGAHN-MOTORENTECHN | 00811582 | |
| WALGAHN-MOTORENTECHN | 811582 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MASSEY FERGUSON MF365 | - | TRACTOR | MF 360 SERIES | PERKINS A4.236 | - |
| MASSEY FERGUSON MF375 | - | TRACTOR | MF 370 SERIES | PERKINS A4.236 | - |
| MASSEY FERGUSON MF390 | - | TRACTOR | MF 390 SERIES | PERKINS A4.248 | - |
| MASSEY FERGUSON MF390T | - | TRACTOR | MF 390 SERIES | PERKINS AT4.236 | - |
| MASSEY FERGUSON MF398 | - | TRACTOR | MF 390 SERIES | PERKINS AT4.236 | - |
| MASSEY FERGUSON MF399 | - | TRACTOR | MF 390 SERIES | PERKINS A6.354.4 | - |
| MASSEY FERGUSON MF399 | - | TRACTOR | MF 390 SERIES | PERKINS 1006.6 | - |
