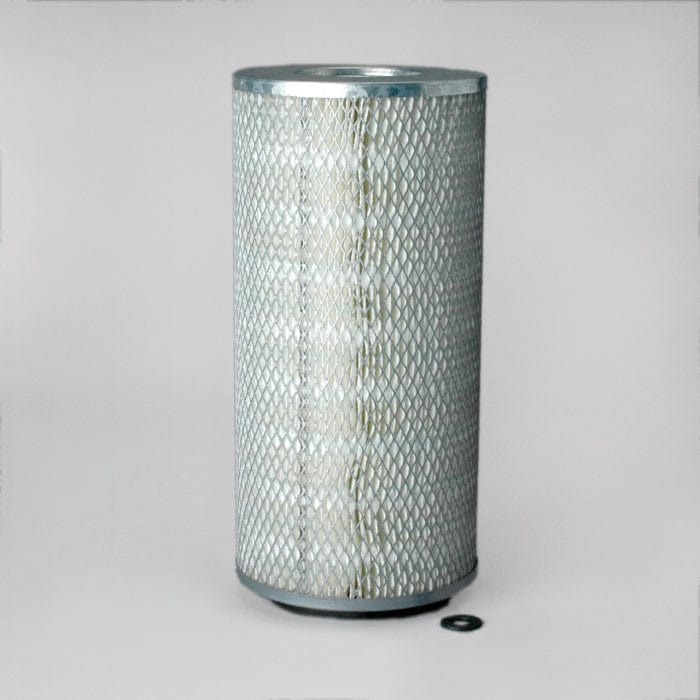

Air Filter, Primary Round - Donaldson P771534
Air Filter, Primary Round - Donaldson P771534
Regular price
£41.82
Regular price
Sale price
£41.82
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P771534
Air Filter, Primary Round| Outer Diameter | 6.83 inch (173.5 mm) |
| Inner Diameter | 3.49 inch (88.6 mm) |
| Length | 14.00 inch (355.5 mm) |
| Overall Length | 14.49 inch (368 mm) |
| Bolt Hole Diameter | 0.67 inch (17 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 173.5 mm (6.83 inch)
- Inner Diameter: 88.6 mm (3.49 inch)
- Length: 355.5 mm (14.00 inch)
Packaged Dimensions
- Packaged Length: 0.75 FT
- Packaged Width: 0.74 FT
- Packaged Height: 1.34 FT
- Packaged Weight: 1.448 kg (3.19 lb)
- Packaged Volume: 0.021 m3 (0.75 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330117569
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A549C | |
| AC DELCO | A696C | |
| AC DELCO | A1005C | |
| AC DELCO | A589C | |
| ALCO | MD7044 | |
| AMERICAN PARTS | 1339 | |
| AMERICAN PARTS | 939 | |
| AMERICAN PARTS | 93918 | |
| BIG A | 939 | |
| BIG A | 1339 | |
| BIG A | 93688 | |
| BIG A | 93918 | |
| CASE/CASE IH | 529373R91 | |
| CATERPILLAR | 3I0236 | |
| CATERPILLAR | 3I0407 | |
| CLEAN | MA786 | |
| COOP | PMA46976 | |
| COOP | AP46976 | |
| COOPERS | AEM2510 | |
| CYCLONE | PMA46976 | |
| DELUXE | AF789 | |
| DELUXE | 789AIR | |
| DELUXE | 789 | |
| DEUTZ | 42491619 | |
| FIAAM | FLI6689 | |
| FIAT | 42491619 | |
| FIAT | 1902040 | |
| FIAT | 8120266 | |
| FORD | 9576P130771 | |
| GPC | FC470 | |
| GPC | FC408 | |
| GUARDIAN | G131281 | |
| GUARDIAN | G130771 | |
| INTERNATIONAL | 529373R1 | |
| INTERNATIONAL | 529373R91 | |
| INTERNATIONAL | 528420R91 | |
| IVECO | 42491619 | |
| IVECO | 1902040 | |
| IVECO | 8120266 | |
| JOHN DEERE | AR46976 | |
| JOHN DEERE | AR45669 | |
| KHD | 42491619 | |
| KNECHT | LX584 | |
| KRALINATOR | LA605 | |
| KRALINATOR | LA472 | |
| KRALINATOR | LA1158 | |
| LOESING | 021653 | |
| LOESING | 21653 | |
| MACK | 2191P150706 | |
| NELSON | 70386N | |
| NELSON | 70189N | |
| NELSON WINSLOW | 130771 | |
| NUTECH | N1438 | |
| PERMATIC | FA3199 | |
| PERRY | PA789 | |
| QUAKER STATE | QSA586 | |
| SOPARIS | LX584 | |
| TRU-AIR | T46976 | |
| TRU-AIR | TA7467 | |
| UNITED ENGINE LIFE | U13501 | |
| VMC | AF771534 | |
| WALGAHN-MOTORENTECHN | 00811546 | |
| WALGAHN-MOTORENTECHN | 811546 | |
| WGB | SA420 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| IRISBUS A70-14 | - | BUS | MINIBUS A SERIES | IVECO 8060.05.246 | - |
| IRISBUS A79-14 | - | BUS | MINIBUS A SERIES | IVECO 8060.05.285 | - |
| IVECO 109-14 | 1983 | TRUCK | Z SERIES | IVECO 8060.04.689 | - |
| IVECO 109-14 | 1985 | TRUCK | ZETA | IVECO 8060.05.289 | - |
| IVECO 115-14 | 1983 | TRUCK | M SERIES | IVECO 8060.04.630 | - |
| IVECO 65-14 | 1983 | TRUCK | Z SERIES | IVECO 8060.04.620/621 | - |
| IVECO 90-14 | 1988 | TRUCK | MK SERIES | IVECO 8060.05.246 | - |
| IVECO 95-14 | 1983 | TRUCK | M SERIES | IVECO 8060.04.669 | - |
| IVECO TURBOZETA 60-11 | 1987 | TRUCK | - | IVECO 8040.25.230R | - |
| IVECO TURBOZETA 65-12 | 1987 | TRUCK | - | IVECO 8040.25.200 | - |
| IVECO TURBOZETA 79-12 | 1987 | TRUCK | TURBOZETA | IVECO 8040.25.220 | - |
| IVECO ZETA 55-14 | 1988 | TRUCK | - | IVECO 8060.05.246 | - |
| JOHN DEERE 4000 | - | TRACTOR | - | JOHN DEERE 6404D | - |
| JOHN DEERE 4020 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6404D | - |
| JOHN DEERE 700 | - | TRACTOR | - | - 700 | - |
