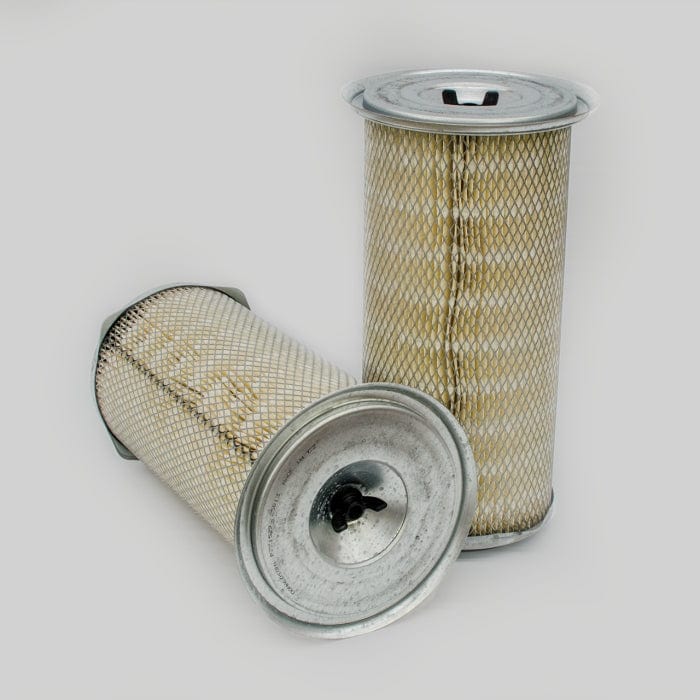

Air Filter, Primary Round - Donaldson P771529
Air Filter, Primary Round - Donaldson P771529
Regular price
£41.18
Regular price
Sale price
£41.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P771529
Air Filter, Primary Round| Outer Diameter | 6.97 inch (177 mm) |
| Inner Diameter | 3.46 inch (88 mm) |
| Length | 14.98 inch (380.5 mm) |
| Overall Length | 15.51 inch (394 mm) |
| Bolt Hole Diameter | 0.59 inch (15 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 177 mm (6.97 inch)
- Inner Diameter: 88 mm (3.46 inch)
- Length: 380.5 mm (14.98 inch)
- Overall Length: 394 mm (15.51 inch)
- Bolt Hole Diameter: 15 mm (0.59 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.227 m (9.06 inch)
- Packaged Width: 0.227 m (9.06 inch)
- Packaged Height: 0.443 m (17.72 inch)
- Packaged Weight: 1.731 kg (3.82 lb)
- Packaged Volume: 0.024 m3 (0.84 ft3)
Other Information
- Country of Origin: Czech Republic
- NMFC Code: 069100-05
- HTS Code: 8421310090
- UPC Code: 742330047538
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 1062501M91 | |
| ARGO | 1062501M91 | |
| ATLAS COPCO | 3216708001 | |
| BEPCO GROUP LTD | 16125 | |
| CLARK,J.L. | M10050530L | |
| COOPERS | AEM2138 | |
| EIMCO | 04710049 | |
| FDI-SAMBRON | 10050530L | |
| FDI-SAMBRON | 10050530L | |
| FODEN | Y05763603 | |
| GPC | FC509 | |
| HAVAM | HD9197 | |
| HAVAM | HD9890 | |
| HAWKER SIDDELEY | 38207906 | |
| HINDLE IVER | FH1849134 | |
| HITACHI | 1849131 | |
| HITACHI | 151849134 | |
| JOHN DEERE | RE33884 | |
| JOHN DEERE | DDX18911 | |
| KNECHT | LX651 | |
| LIEBHERR | 7615526 | |
| LISTER PETTER | 38207906 | |
| LOESING | 21842 | |
| LOESING | 021842 | |
| LOESING | 21993 | |
| M.D.F. SARL | MDA0168 | |
| MASSEY FERGUSON | 1062501M91 | |
| NEW HOLLAND | 9964588 | |
| NEW HOLLAND | 1849134 | |
| ORENSTEIN & KOPPEL | 101212 | |
| PACCAR | Y05765001 | |
| SANDVIK | 04710049 | |
| SANDVIK | A87275289 | |
| SOILMEC | 40041003 | |
| TENNANT | 21767HF | |
| VAPORMATIC | VPD7045 | |
| VIRGIS | CH0811942 | |
| VMC | AF771529 | |
| VOLVO | 020002282618 | |
| VOLVO | 20002282618 | |
| VOLVO CONSTRUCTION EQUIPMENT | 20002282618 | |
| WALGAHN-MOTORENTECHN | 811541 | |
| WALGAHN-MOTORENTECHN | 811593 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BRAUD SB 56 | - | HARVESTER | SB SERIES | - SB 56 | - |
| HITACHI FH115W | - | EXCAVATOR WHEELED | - | - FH115W | - |
