• Donaldson Air Filter, Primary Round - Donaldson P603857
1 1

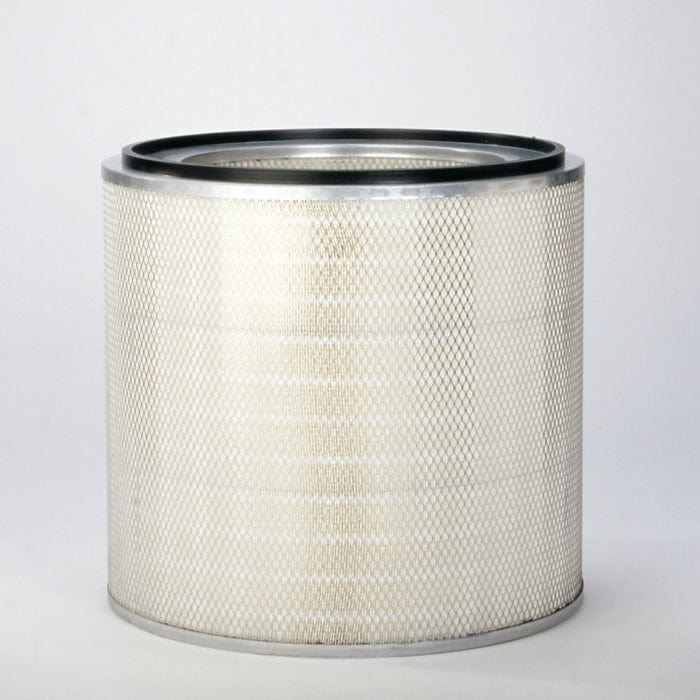

Air Filter, Primary Round - Donaldson P603857

Air Filter, Primary Round - Donaldson P603857

£198.04
£198.04
Sale Sold out
Shipping calculated at checkout.

Donaldson P603857

Air Filter, Primary Round
View full details

Specifications

Attributes

  • Outer Diameter: 490 mm (19.29 inch)
  • Inner Diameter: 328.4 mm (12.93 inch)
  • Length: 453.1 mm (17.84 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: CATERPILLAR 1131578
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 1.76 FT
  • Packaged Width: 1.76 FT
  • Packaged Height: 1.85 FT
  • Packaged Weight: 9.629 kg (21.21 lb)
  • Packaged Volume: 0.160 m3 (5.72 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-03
  • HTS Code: 8421310090
  • UPC Code: 742330128626

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 1131578
VMC AF603857

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3512B - ENGINE - - 3512B -
CATERPILLAR 3516B - ENGINE - CATERPILLAR 3516B -
CATERPILLAR PM3516 - GENERATOR SET - - PM3516 -
