• Donaldson Air Filter, Primary Round - Donaldson P538453
1 1

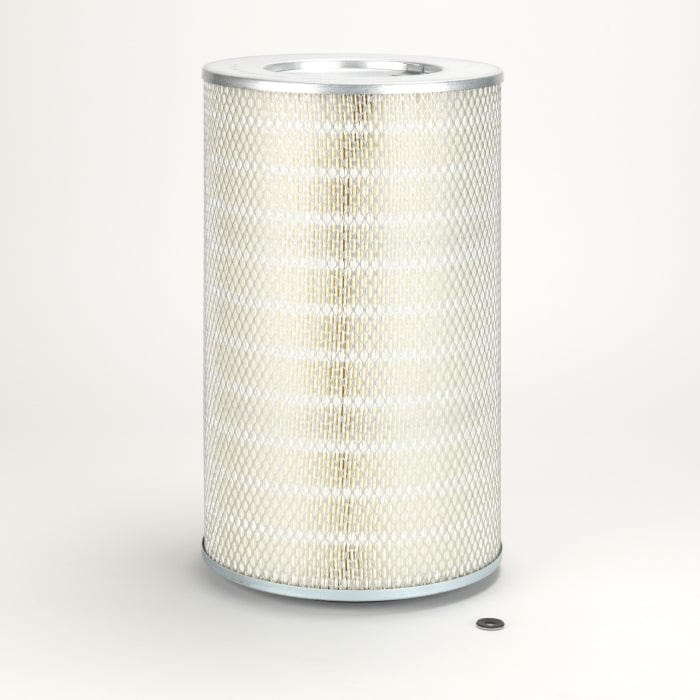

Air Filter, Primary Round - Donaldson P538453

Air Filter, Primary Round - Donaldson P538453

£99.94
£99.94
Sale Sold out
Shipping calculated at checkout.

Donaldson P538453

Air Filter, Primary Round
Outer Diameter 10.00 inch (254 mm)
Inner Diameter 5.88 inch (149.35 mm)
Length 17.06 inch (433.32 mm)
Bolt Hole Diameter 0.39 inch (9.91 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Type Primary
Style Round
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 254 mm (10.00 inch)
  • Inner Diameter: 149.35 mm (5.88 inch)
  • Length: 433.32 mm (17.06 inch)
  • Bolt Hole Diameter: 9.91 mm (0.39 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.260 m (10.40 inch)
  • Packaged Width: 0.265 m (10.60 inch)
  • Packaged Height: 0.460 m (18.40 inch)
  • Packaged Weight: 2.906 kg (6.40 lb)
  • Packaged Volume: 0.033 m3 (1.17 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-04
  • HTS Code: 8421310090
  • UPC Code: 742330082157

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION SFA4669
AMERICAN MOTORS CORPORATION AE16670
AMERICAN MOTORS CORPORATION AP7825
AMERICAN MOTORS CORPORATION TA109
AMERICAN MOTORS CORPORATION SHA109
ATLAS COPCO 1310032877
ATLAS COPCO CD1219610826
ATLAS COPCO 9772040023
CHAMP AF7825
EXMAN SFA4669
EXMAN TA109
EXMAN AP7825
EXMAN AE16670
EXMAN SHA109
HAYES DANA LA17021
HAYES DANA LA1702
NISSAN/UD TRUCKS 1654686G00
NISSAN/UD TRUCKS 1654686G000
SULLAIR CD1219610826
VMC AF538453

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ATLAS COPCO 125KW - GENERATOR SET - - 125KW -
ATLAS COPCO 150KW - GENERATOR SET - - 150KW -
ATLAS COPCO 175KW - GENERATOR SET - - 175KW -
ATLAS COPCO 200KW - GENERATOR SET - - 200KW -
