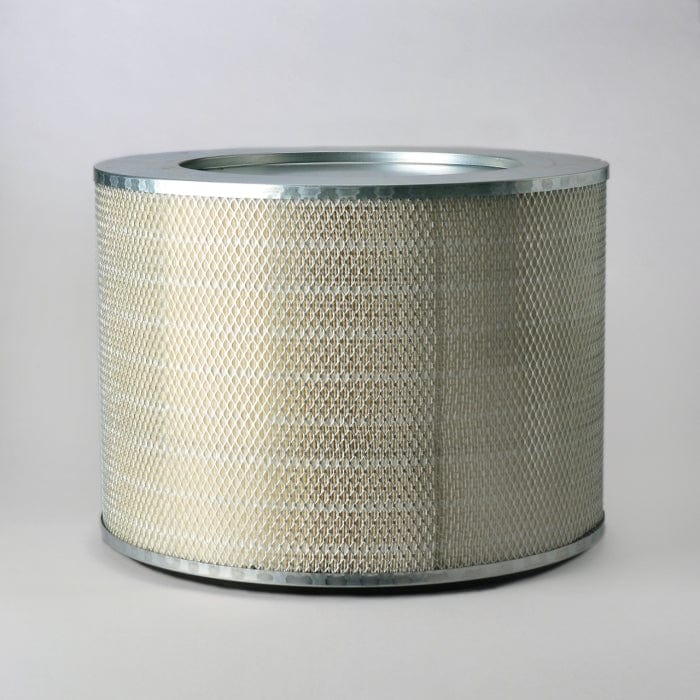

Air Filter, Primary Round - Donaldson P535114
Air Filter, Primary Round - Donaldson P535114
Regular price
£157.84
Regular price
Sale price
£157.84
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P535114
Air Filter, Primary RoundShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 490 mm (19.29 inch)
- Inner Diameter: 328.4 mm (12.93 inch)
- Length: 351.5 mm (13.84 inch)
- Overall Length: 364.2 mm (14.34 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: CATERPILLAR 4P0710
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.495 m (19.80 inch)
- Packaged Width: 0.495 m (19.80 inch)
- Packaged Height: 0.375 m (15.00 inch)
- Packaged Weight: 8.090 kg (17.82 lb)
- Packaged Volume: 0.095 m3 (3.40 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330039700
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | SFA5114P | |
| CATERPILLAR | 4P0710 | |
| EXMAN | SFA5114P | |
| FSI | AF2014 | |
| GPC | FC2171 | |
| TIM | 4P0710 | |
| VMC | AF535114 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 3508B | - | ENGINE | - | - 3508B | - |
| CATERPILLAR 3512B | - | ENGINE | - | - 3512B | - |
| CATERPILLAR 3516B | - | ENGINE | - | CATERPILLAR 3516B | - |
| CATERPILLAR G3516 | - | ENGINE | - | - G3516 | - |
| CATERPILLAR PM3512 | - | GENERATOR SET | - | - PM3512 | - |
