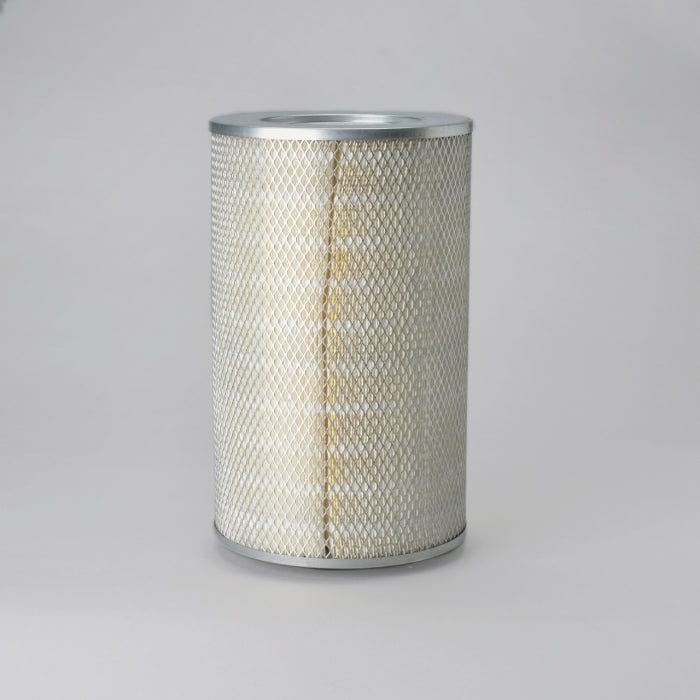

Air Filter, Primary Round - Donaldson P525943

Air Filter, Primary Round - Donaldson P525943

£38.46
£38.46
Sale Sold out
Shipping calculated at checkout.

Donaldson P525943

Air Filter, Primary Round
View full details

Specifications

Attributes

  • Outer Diameter: 251.7 mm (9.91 inch)
  • Inner Diameter: 153.7 mm (6.05 inch)
  • Length: 406.4 mm (16.00 inch)
  • Overall Length: 419.1 mm (16.50 inch)
  • Bolt Hole Diameter: 16.76 mm (0.66 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: CASE/CASE IH A171255
  • Type: Primary
  • Style: Round
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.266 m (10.63 inch)
  • Packaged Width: 0.266 m (10.63 inch)
  • Packaged Height: 0.433 m (17.32 inch)
  • Packaged Weight: 2.880 kg (6.35 lb)
  • Packaged Volume: 0.032 m3 (1.13 ft3)

Other Information

  • Country of Origin: Czech Republic
  • HTS Code: 8421310090
  • UPC Code: 742330036648

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO A1450C
AMERICAN PARTS 94619
BERGERAT MONNOYEUR E3553
BIG A 94619
CASE/CASE IH A171255
CATERPILLAR 3I1037
GPC FC2191
KRALINATOR LA1345
LOESING 20169
LOESING 020169
M.D.F. SARL MDA9881
MCCORMICK MCA171255
NELSON 70288A
NELSON 70288N
VAPORMATIC VPD7123
VMC AF525943
WALGAHN-MOTORENTECHN 00811757
WALGAHN-MOTORENTECHN 811757

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CASE/CASE IH 1288 - EXCAVATOR TRACKED - CUMMINS 6CT8.3 -
CASE/CASE IH 1288C - EXCAVATOR TRACKED - - 1288C -
CASE/CASE IH 1288LC - EXCAVATOR TRACKED - CUMMINS 6CT8.3 -
CASE/CASE IH 1288LLC - EXCAVATOR TRACKED - CUMMINS 6CT8.3 -
CASE/CASE IH 2155 - COTTON PICKER - - 2155 -
CASE/CASE IH 2555 - COTTON PICKER - - 2555 -
CASE/CASE IH 7110 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 7130 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 7140 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 7150 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 7210 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6C8.3 -
CASE/CASE IH 7220 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 7220 - TRACTOR 7000 MAGNUM SERIES, PRO - 7220 -
CASE/CASE IH 7230 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 7240 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CTA8.3 -
CASE/CASE IH 7250 - TRACTOR 7000 MAGNUM SERIES CUMMINS 6CTA8.3 -
CASE/CASE IH 8910 - TRACTOR 8000 SERIES CUMMINS 6CT8.3 -
CASE/CASE IH 8920 - TRACTOR - CUMMINS 6CT8.3 -
CASE/CASE IH 8940 - TRACTOR 8000 SERIES CUMMINS 6CTA8.3 -
CASE/CASE IH 8950 - TRACTOR 8000 SERIES CUMMINS 6CTA8.3 -
