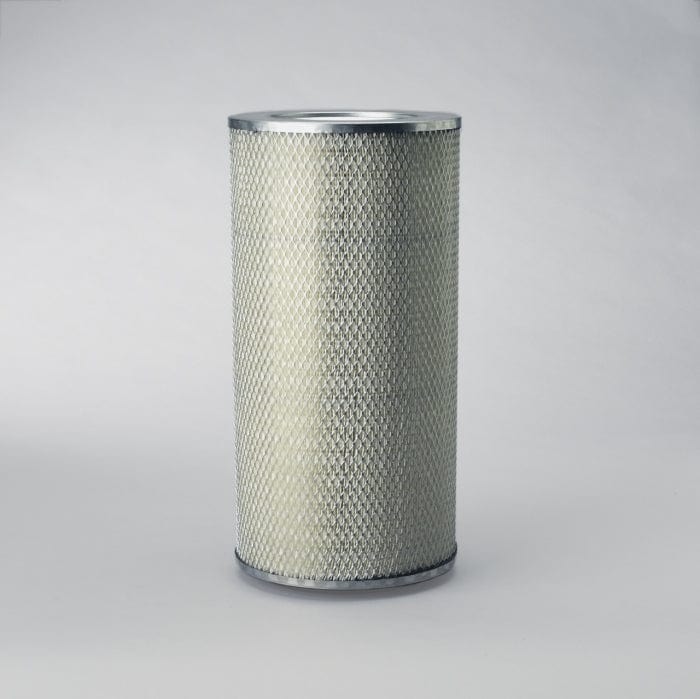

Air Filter, Primary Round - Donaldson P182070
Air Filter, Primary Round - Donaldson P182070
Regular price
£86.66
Regular price
Sale price
£86.66
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P182070
Air Filter, Primary Round| Outer Diameter | 9.14 inch (232.2 mm) |
| Inner Diameter | 5.78 inch (146.8 mm) |
| Length | 18.00 inch (457.2 mm) |
| Overall Length | 18.50 inch (469.9 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 232.2 mm (9.14 inch)
- Inner Diameter: 146.8 mm (5.78 inch)
- Length: 457.2 mm (18.00 inch)
- Overall Length: 469.9 mm (18.50 inch)
- Bolt Hole Diameter: 22.73 mm (0.89 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.255 m (10.20 inch)
- Packaged Width: 0.250 m (10.00 inch)
- Packaged Height: 0.485 m (19.40 inch)
- Packaged Weight: 2.806 kg (6.18 lb)
- Packaged Volume: 0.032 m3 (1.15 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330026984
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | IA3361 | |
| AMERICAN AUGERS | 8NG280221 | |
| AMERICAN MOTORS CORPORATION | SFA8600SET | |
| ATLAS COPCO | 2914603900 | |
| BEPCO GROUP LTD | 16129 | |
| BERGERAT MONNOYEUR | E2321 | |
| BLOUNT | 842351400 | |
| CASE/CASE IH | 83913766 | |
| CASE/CASE IH | XN386735 | |
| CASE/CASE IH | D8NN9618AA | |
| CASE/CASE IH | S238646 | |
| CATERPILLAR | 842351400 | |
| CATERPILLAR | 995801 | |
| CATERPILLAR | 8T8059 | |
| CATERPILLAR | 3I0821 | |
| CATERPILLAR | 3I0941 | |
| CATERPILLAR | 9Y6845 | |
| CATERPILLAR | 3I1454 | |
| CATERPILLAR | STS059 | |
| CENTURY II | 6446Z13 | |
| CHAMPION ROAD | 28120 | |
| DRESSER | 1249193H1 | |
| DYNAPAC | 499386 | |
| DYNAPAC | 4700499386 | |
| EUCLID | 2528680 | |
| EUCLID | M2528680 | |
| EXMAN | SFA8600SET | |
| EXXEL PTY LTD | 14440048 | |
| FIAT | 83913766 | |
| FIAT | XN386735 | |
| FIAT | D8NN9618AA | |
| FIAT | JS02P000013 | |
| FMC | KSH0438 | |
| FORD | 9576P182070 | |
| FREIGHTLINER | DNP181070 | |
| GLOBAL ASPHALT PRODUCTS | 35300375 | |
| GROVE | 9999406298 | |
| GROVE | 9304100187 | |
| HAVAM | HD8970 | |
| HINO | 178012480 | |
| HINO | 178012480B | |
| HINO | 178012260 | |
| HINO | 178012260B | |
| HINO | 178012480A | |
| HINO | 177203640B | |
| HITACHI | 4292975 | |
| HITACHI | 4145914 | |
| HITACHI | 4146999 | |
| HOIST LIFTTRUCK MANUFACTURING | M10351 | |
| INGERSOLL RAND | 59445163 | |
| INGERSOLL RAND | 35380773 | |
| INGERSOLL RAND | 35300375SUB | |
| INTERNATIONAL | 124913H1 | |
| JOHN DEERE | 842351400 | |
| JOHN DEERE | AT81018 | |
| KAWASAKI | 3098070060 | |
| KOBELCO | EZ11P00003S002 | |
| KOBELCO | FP11P00001S002 | |
| KOBELCO | JS11P00001S002 | |
| KOBELCO | JS02P000013 | |
| KOBELCO | KL3098070060 | |
| KOMATSU | 1249057H1 | |
| KOMATSU | 1249193H1 | |
| KOMATSU | 6001818600SE | |
| KOMATSU | 6001818271 | |
| KOMATSU | 6001818600 | |
| KOMATSU | 6001823220 | |
| KOMATSU | 6001822700P | |
| KOMATSU | 6001823200 | |
| KOMATSU | 6001823210 | |
| LBX COMPANY LLC | KSH0438 | |
| LOESING | 21780 | |
| LOESING | 21760 | |
| LOESING | 021780 | |
| MCCORMICK | MCS238646 | |
| MISFAT | 788900 | |
| MITSUBISHI | ME033483 | |
| NEW HOLLAND | 83913766 | |
| NEW HOLLAND | XN386735 | |
| NEW HOLLAND | D8NN9618AA | |
| NEW HOLLAND | XJS1 | |
| NUTECH | S1850 | |
| OLSSONS I ELLOS AB | FD3913766 | |
| PACCAR | Y06012306 | |
| RAYGO | 8T8059 | |
| REFILCO | AF6722 | |
| TAYLOR | 4044402 | |
| TAYLOR | 4044417 | |
| TIMBERJACK | 842351400 | |
| VMC | AF182070 | |
| VOEGELE | 35300375 | |
| WALGAHN-MOTORENTECHN | 00811079 | |
| WALGAHN-MOTORENTECHN | 811079 | |
| WESFIL | A911 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 40E | - | EXCAVATOR TRACKED | - | - 40E | - |
| CASE/CASE IH 6830T | - | POWER UNIT | - | - 6830T | - |
| CASE/CASE IH 6830TA | - | POWER UNIT | - | - 6830TA | - |
| HINO 16 SERIES | - | TRUCK | - | - 16 SERIES | - |
| HINO 17 SERIES | - | TRUCK | - | - 17 SERIES | - |
| HINO 19 SERIES | - | TRUCK | - | - 19 SERIES | - |
| HINO EM100 | - | ENGINE | - | - EM100 | - |
| HINO FD16 | - | TRUCK | - | HINO W06E | - |
| HINO FD17 | - | TRUCK | - | HINO H07CF | - |
| HINO FD17 | - | TRUCK | - | HINO H07C | - |
| HINO FE | - | TRUCK | - | HINO H07C | - |
| HINO FE16 | - | TRUCK | - | HINO W06E | - |
| HINO FE17 | - | TRUCK | - | HINO H07C | - |
| HINO FE17 | - | TRUCK | - | HINO H07CF | - |
| HINO FE19 | - | TRUCK | - | HINO H06CT | - |
| HINO FF | - | TRUCK | - | HINO H07C | - |
| HINO FF19 | - | TRUCK | - | HINO H06CT | - |
| HINO FF23 | - | TRUCK | - | HINO H06C-TH | - |
| HINO FFC1 | - | TRUCK | - | CUMMINS 6BT5.9 | - |
| HINO FG19 | - | TRUCK | - | HINO H06CT | - |
| HINO FG22 | - | TRUCK | - | HINO EM100E | - |
| HINO GC17 | - | TRUCK | - | HINO H07CF | - |
| HINO GC17 | - | TRUCK | - | HINO H07C | - |
| HINO GS221 | 1986 | TRUCK | - | HINO EM100 | - |
| HINO GS224 | 1987 | TRUCK | - | HINO EM100 | - |
| HINO GS224KA | - | TRUCK | - | HINO EM100 | - |
| HINO H06CT | - | ENGINE | - | - H06CT | - |
| HINO H07C | - | ENGINE | - | - H07C | - |
| HINO SF17 | - | TRUCK | - | HINO H07C | - |
| HINO SG SERIES | - | TRUCK | - | HINO EM100 | - |
| HINO SG19 | - | TRUCK | - | HINO H06CT | - |
| HINO SG22 | - | TRUCK | - | HINO EM100E | - |
| HINO SG22 | - | TRUCK | - | - SG22 | - |
| HINO SG23 | - | TRUCK | - | HINO H06C-TH | - |
| HINO SG23 | - | TRUCK | - | - SG23 | - |
| HINO W06E | - | ENGINE | - | - W06E | - |
| KATO HD1430R | - | EXCAVATOR | - | MITSUBISHI 6D16-TLC1A | - |
| KATO HD2045-3 | - | EXCAVATOR | - | MITSUBISHI 6D16-TLC1A | - |
| KAWASAKI 80 ZIII | - | LOADER WHEELED | - | CUMMINS 6CT8.3 | - |
| KOMATSU PC300-5 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D108-1 | - |
| KOMATSU PC300-6 | - | EXCAVATOR TRACKED | - | KOMATSU SAA6D108E-2 | - |
| KOMATSU PC300AV | - | EXCAVATOR TRACKED | - | KOMATSU SA6D108 | - |
| KOMATSU PC300LC-5 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D108-1 | - |
| KOMATSU PC300LC-6 | - | EXCAVATOR TRACKED | - | KOMATSU SAA6D108 | - |
| KOMATSU PC340LC-6K-J | - | EXCAVATOR TRACKED | - | KOMATSU SAA6D108E-2A-P8 | - |
| KOMATSU PC360-6 | - | EXCAVATOR | - | KOMATSU SAA6D108E-2 | - |
| KOMATSU PC360LC-5 | - | EXCAVATOR TRACKED | - | KOMATSU SAA6D108E | - |
| KOMATSU WA320-3MC | - | LOADER WHEELED | WA SERIES | KOMATSU SA6D114E-1 | - |
| KOMATSU WA420-1 | - | LOADER WHEELED | - | KOMATSU SA6D110-1W | - |
| MITSUBISHI FM315 | - | TRUCK | - | MITSUBISHI 6D14T | - |
| MITSUBISHI P-FK416 | - | TRUCK | - | MITSUBISHI 6D15T | - |
