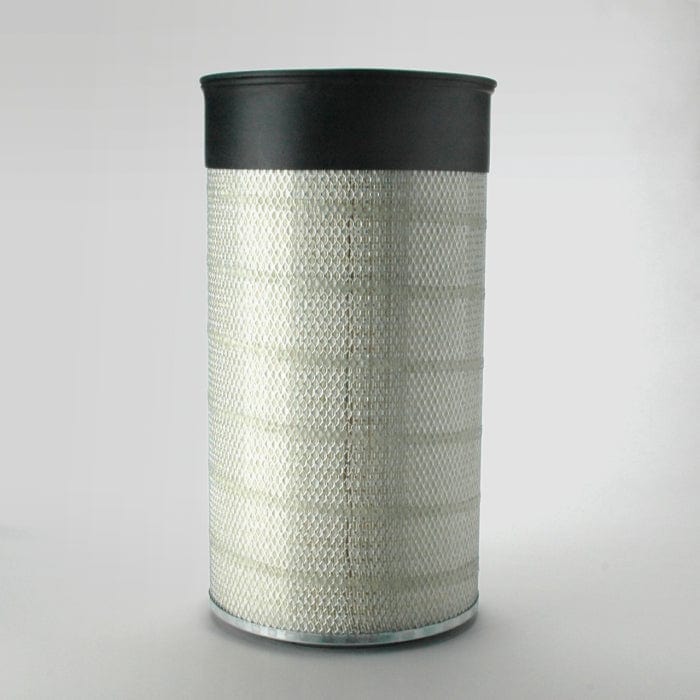

Air Filter, Primary Round - Donaldson P182049
Air Filter, Primary Round - Donaldson P182049
Regular price
£125.72
Regular price
Sale price
£125.72
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P182049
Air Filter, Primary Round| Outer Diameter | 12.74 inch (323.6 mm) |
| Inner Diameter | 8.38 inch (212.9 mm) |
| Length | 24.03 inch (610.4 mm) |
| Overall Length | 24.53 inch (623.1 mm) |
| Bolt Hole Diameter | 0.93 inch (23.62 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | FVG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 323.6 mm (12.74 inch)
- Inner Diameter: 212.9 mm (8.38 inch)
- Length: 610.4 mm (24.03 inch)
- Overall Length: 623.1 mm (24.53 inch)
- Bolt Hole Diameter: 23.62 mm (0.93 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: FVG
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.345 m (13.78 inch)
- Packaged Width: 0.345 m (13.78 inch)
- Packaged Height: 0.630 m (25.20 inch)
- Packaged Weight: 5.220 kg (11.51 lb)
- Packaged Volume: 0.078 m3 (2.77 ft3)
Other Information
- Country of Origin: United Kingdom
- HTS Code: 8421310090
- UPC Code: 742330026861
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP3514A | |
| AG CHEM EQUIPMENT | 609278 | |
| AGCO | AG609278 | |
| AGCO | 74062432 | |
| AMERICAN CRANE CORPORATION | 1060485 | |
| AMERICAN CRANE CORPORATION | 849114 | |
| AMERICAN MOTORS CORPORATION | SFA0891P | |
| AMERICAN MOTORS CORPORATION | AE28030 | |
| AMERICAN MOTORS CORPORATION | 11440500 | |
| AMTRAK | 2607503068 | |
| ARMAFILT | L3246320 | |
| ASTEC UNDERGROUND | 20000108 | |
| ASTEC UNDERGROUND | 20001033 | |
| ASTEC UNDERGROUND | 70P181049 | |
| ATLAS COPCO | 9724591063 | |
| ATLAS COPCO | 2914501200 | |
| BADGER | 0914620 | |
| BARKO HYDRAULICS | 53501213 | |
| BOMAG | 853521308 | |
| BOMBARDIER | 400008070 | |
| BOMBARDIER | 400023139 | |
| BRITISH RAIL | 1578105 | |
| CAMECO | 0061352455 | |
| CAMECO | 61352455 | |
| CARBOCOL | 729699 | |
| CASE/CASE IH | 3213778R91 | |
| CASE/CASE IH | 87404270 | |
| CASE/CASE IH | 9964207 | |
| CASE/CASE IH | 3H1075 | |
| CATERPILLAR | 3I0802 | |
| CATERPILLAR | 8T6288 | |
| CATERPILLAR | 901041 | |
| CATERPILLAR | 3I0928 | |
| CATERPILLAR | 9Y7812 | |
| CHARDONNET | 7218104900 | |
| CHICAGO PNEUMATIC | 2PS424 | |
| CHICAGO PNEUMATIC | 2PS4240 | |
| CHICAGO PNEUMATIC | 52PS4240 | |
| CHICAGO PNEUMATIC | PS424 | |
| CHICAGO PNEUMATIC | 003PS424 | |
| CHICAGO PNEUMATIC | 002PS424 | |
| CHICAGO PNEUMATIC | 000PS424 | |
| CHICAGO PNEUMATIC | 3PS424 | |
| CLARK | 961416 | |
| CMI | 4002792003 | |
| CMI | 427923 | |
| CMI | 004002792003 | |
| COLT | 124533 | |
| COMPACTION AMERICA | 853521308 | |
| COMPAIR | R1021019611 | |
| COMPAIR | 9826251350001 | |
| COMPAIR | CZ438121 | |
| COMPAIR | 438121 | |
| CUMMINS | 3013210 | |
| CUMMINS | 01402392 | |
| DEUTZ | 74062432 | |
| DRESSER | 156260 | |
| DRILTECH | 006307058 | |
| DRILTECH | 69008914 | |
| DRILTECH | 630758 | |
| EIMCO | 69008914 | |
| EUCLID | 12000204 | |
| EXMAN | 11440500 | |
| EXMAN | AE28030 | |
| EXMAN | SFA0891P | |
| FG WILSON | 901042 | |
| FIAT | 3H1075 | |
| FIAT | 9964207 | |
| FORD | 9576P181049 | |
| FORD | 9576P182049 | |
| FREIGHTLINER | DNP181049 | |
| FREIGHTLINER | DNP182049 | |
| FSA | FA3380 | |
| FURUKAWA | 040207071120 | |
| FURUKAWA | 3115546701 | |
| FURUKAWA | ZT288706213 | |
| GARDNER DENVER | AT485 | |
| GRIMMER SCHMIDT | 30093 | |
| GROVE | 9304100036 | |
| GROVE | P181049 | |
| GROVE | 9304100176 | |
| HAVAM | HD6685 | |
| HYSTER | 05730124 | |
| HYUNDAI | 11L601870 | |
| INGERSOLL RAND | 35714690 | |
| INGERSOLL RAND | 35723512 | |
| INGERSOLL RAND | 39322201 | |
| INGERSOLL RAND | 35123512 | |
| INGERSOLL RAND | 91780858 | |
| INGERSOLL RAND | 90494329 | |
| IVECO | ZDFP902011 | |
| IVECO | 97383402 | |
| JOHN BEAN | 3H1075 | |
| KOEHRING | 5730124 | |
| KOMATSU | 156260 | |
| LEROI | GD1157455 | |
| LETOURNEAU | 4226867 | |
| LEYLAND-DAF (LDV) | BFBU2389 | |
| LINK BELT | P9A0707 | |
| LOESING | 21752 | |
| LOESING | 20878 | |
| LOESING | 021752 | |
| MACK | 2191P182049 | |
| MCNEILUS | 5HS752 | |
| MERCEDES-BENZ | 6480940004 | |
| MI-JACK | 33160428 | |
| MORBARK | 29321354 | |
| MORBARK | 29321210 | |
| NEW HOLLAND | 3H1075 | |
| NEW HOLLAND | 9964207 | |
| NUTECH | S9033 | |
| ONAN | 1402392 | |
| ONAN | 01402392 | |
| ORENSTEIN & KOPPEL | 4600180 | |
| OSHKOSH | 5HS752 | |
| P & H | GH5842686 | |
| P & H | 1046Z266 | |
| PERKINS | OE45521 | |
| PIVOT POWER INC | P182049016140 | |
| POSTAS | HF1799 | |
| RAYGO | 8T6288 | |
| REFILCO | AF2546 | |
| REICHDRILL | PS424052 | |
| ROVER | BFBU2389 | |
| ROVER | FBU2389 | |
| RUSTON BUCYRUS | 62300688 | |
| SANDVIK | 69008907 | |
| SANDVIK | 006307058 | |
| SANDVIK | 6307058 | |
| SCANIA | 1846640 | |
| SCANIA | 1000105 | |
| SCHRAMM | 50009629 | |
| TAMROCK | 006307058 | |
| TAYLOR | 4044443 | |
| TEREX | 9059998 | |
| TEREX | 101087 | |
| TORO | 12706520 | |
| TORO | 12706540 | |
| TORO | 012706520 | |
| TORO | 012706540 | |
| TROJAN | 460018000 | |
| UNIPART | 015078105 | |
| UNIPART | 15078105 | |
| UNIPART | FBU2389 | |
| UNIPART | BFBU2389 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687780 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687512 | |
| VERMEER | 296263298 | |
| VMC | AF182049 | |
| VOLVO | 11713158 | |
| VOLVO | V1111990 | |
| VOLVO | 1111990 | |
| WALGAHN-MOTORENTECHN | 00811066 | |
| WALGAHN-MOTORENTECHN | 811066 | |
| WALGAHN-MOTORENTECHN | 00811147 | |
| WALGAHN-MOTORENTECHN | 811147 | |
| WARTSILA | L3246320 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO CM765 | - | DRILLING EQUIPMENT | - | CATERPILLAR C11 | - |
| BOMAG MPH100R | - | COMPACTOR | - | - MPH100R | - |
| CLARK 275B | - | LOADER WHEELED | - | - 275B | - |
| CLARK 275B | - | LOADER WHEELED | - | - 275B | - |
| HYUNDAI HL780-3 | - | LOADER WHEELED | HL SERIES | CUMMINS N14 | - |
| HYUNDAI HL780-3A | - | LOADER WHEELED | HL SERIES | CUMMINS QSM11 | - |
| HYUNDAI HL780-7A | - | LOADER WHEELED | HL SERIES | CUMMINS QSM11 | - |
| TEREX 3303B | - | DUMP TRUCK | - | CUMMINS M11C300 | - |
