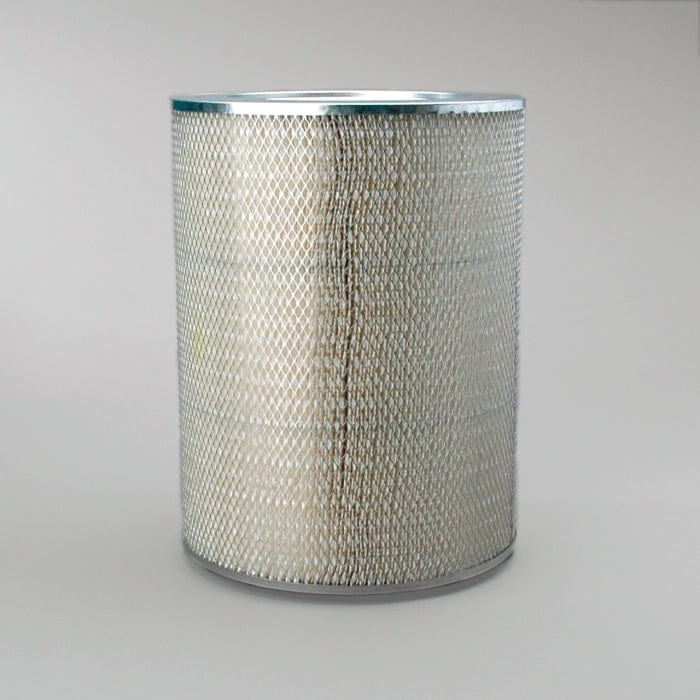

Air Filter, Primary Round - Donaldson P182039
Air Filter, Primary Round - Donaldson P182039
Regular price
£72.06
Regular price
Sale price
£72.06
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P182039
Air Filter, Primary Round| Notes | Long Life Version of P181039 |
| Outer Diameter | 13.84 inch (351.6 mm) |
| Inner Diameter | 9.47 inch (240.6 mm) |
| Length | 18.00 inch (457.2 mm) |
| Overall Length | 18.50 inch (469.9 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | STG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Notes: Long Life Version of P181039
- Outer Diameter: 351.6 mm (13.84 inch)
- Inner Diameter: 240.6 mm (9.47 inch)
- Length: 457.2 mm (18.00 inch)
- Overall Length: 469.9 mm (18.50 inch)
- Bolt Hole Diameter: 22.73 mm (0.89 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: STG
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.354 m (14.17 inch)
- Packaged Width: 0.354 m (14.17 inch)
- Packaged Height: 0.473 m (18.90 inch)
- Packaged Weight: 5.192 kg (11.45 lb)
- Packaged Volume: 0.062 m3 (2.20 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330026779
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP3028A | |
| AGCO | 71409552 | |
| AGCO | 72527840 | |
| ALSTHOM | 2X3310 | |
| AMERICAN MOTORS CORPORATION | SFA0851P | |
| AMERICAN MOTORS CORPORATION | AE27010 | |
| AMTRAK | 588006210 | |
| ASTEC UNDERGROUND | 3090541121 | |
| ASTEC UNDERGROUND | 3014052007 | |
| ASTRA | 45474 | |
| ATLAS | 352569 | |
| ATLAS | 2914400600 | |
| ATLAS COPCO | 2650616390 | |
| ATLAS COPCO | 5540108600 | |
| ATLAS COPCO | 5540417500 | |
| ATLAS WEYHAUSEN | 277418 | |
| BERGERAT MONNOYEUR | E2304 | |
| BRUSH TRACTION | 401476202 | |
| BUHLER VERSATILE | 86033526 | |
| CAMECO | 61329602 | |
| CAMECO | 0061404404 | |
| CAMECO | 61404404 | |
| CAMECO | 0061329602 | |
| CARBOCOL | AP536 | |
| CARBOCOL | 1299437 | |
| CASE/CASE IH | 45252 | |
| CASE/CASE IH | X0850538 | |
| CASE/CASE IH | M1950527 | |
| CASE/CASE IH | N1950527 | |
| CASE/CASE IH | 84217251 | |
| CASE/CASE IH | 700701211 | |
| CASE/CASE IH | 423218C1 | |
| CASE/CASE IH | 507221 | |
| CASE/CASE IH | S224637 | |
| CASE/CASE IH | 4003012R1 | |
| CASE/CASE IH | SFD45252 | |
| CASE/CASE IH | 1849116 | |
| CASE/CASE IH | E117207 | |
| CATERPILLAR | 3I0792 | |
| CATERPILLAR | 6N6071 | |
| CATERPILLAR | 8J5897 | |
| CATERPILLAR | 8L5897 | |
| CATERPILLAR | 774290 | |
| CATERPILLAR | 0774290 | |
| CATERPILLAR | 3I0920 | |
| CATERPILLAR | 1N8165 | |
| CETCO INCORPORATED | 1314431H91 | |
| CHICAGO PNEUMATIC | 68PS4670 | |
| CLARK | 966538 | |
| CLARK | 048811749 | |
| CLARK | 1514580P | |
| CLARK | M1564833 | |
| CLARK | 1564833 | |
| CLARK | E1514580 | |
| CMI | P181039 | |
| CMI | 4002720006 | |
| COMPACTION AMERICA | 05730117 | |
| COMPAIR | 4710040 | |
| COOP | AP109155 | |
| COOP | PMA109155 | |
| CUMMINS | 421899 | |
| CUMMINS | 3237962 | |
| DAEWOO | K1053750 | |
| DEMAG | 988637 | |
| DEUTZ | 1340122 | |
| DRESSER | 942626C1 | |
| DRESSER | VE7438 | |
| DRILTECH | 2004058 | |
| DRILTECH | 200458 | |
| DRILTECH | 04710040 | |
| DRILTECH | 002004058 | |
| EIMCO | 04710040 | |
| EUCLID | 4000055 | |
| EUCLID | 403216 | |
| EUCLID | 9038906 | |
| EUCLID | 9038900 | |
| EUCLID | 4881174 | |
| EUCLID | 6233146 | |
| EUCLID | 44811749 | |
| EUCLID | 4082221 | |
| EUCLID | 048811749 | |
| EUCLID | 9370902 | |
| EUCLID | 9256640 | |
| EUCLID | 9247127 | |
| EUCLID | 9249091 | |
| EUCLID | 9035992 | |
| EUCLID | 9035866 | |
| EUCLID | 9035988 | |
| EUCLID | 9037362 | |
| EUCLID | 9256640P | |
| EUCLID | E4881174 | |
| EUCLID | 4005102 | |
| EUCLID | E4082221 | |
| EUCLID | 4005102P | |
| EUCLID | 4000055P | |
| EUCLID | 9369053P | |
| EUCLID | 9370902P | |
| EVOBUS | A0040940004 | |
| EXMAN | SFA0851P | |
| EXMAN | AE27010 | |
| FAUN | 718325 | |
| FAUN | 746395 | |
| FIAT | 1849116 | |
| FIAT | 1902121 | |
| FIAT | 700701211 | |
| FIAT | SFD45252 | |
| FORD | 9576P182039 | |
| FORD | 9576P181039 | |
| FREIGHTLINER | DNP181039 | |
| FURUKAWA | 423218C1 | |
| GARDNER DENVER | 2116664 | |
| GENERAL ELECTRIC | 2X3310 | |
| GENERAL ELECTRIC | 41C690360P7 | |
| GUASCOR | 7650132 | |
| HANOMAG TRAKTOREN | 1097001M91 | |
| HAVAM | HD6815 | |
| HAY & FORAGE | 71409552 | |
| HITACHI | 2690237021 | |
| HITACHI | E4082221 | |
| HITACHI | EU4012356 | |
| INDUCONTROL | AR536 | |
| INGERSOLL RAND | 35121425 | |
| INGERSOLL RAND | 35121245 | |
| INGERSOLL RAND | 35288380P | |
| INGERSOLL RAND | 35102706 | |
| INGERSOLL RAND | 35107309 | |
| INGERSOLL RAND | 50439868P | |
| INGERSOLL RAND | 50616028P | |
| INGERSOLL RAND | W92709 | |
| INGERSOLL RAND | 35288349 | |
| INTERNATIONAL | 415027C91 | |
| INTERNATIONAL | 423218C1 | |
| INTERNATIONAL | 924626C1 | |
| INTERNATIONAL | 4003012R91 | |
| INTERNATIONAL | 400301R2 | |
| INTERNATIONAL | 4002356R91 | |
| JOY | 1046Z478 | |
| KOEHRING | 5730117 | |
| KOMATSU | VE7438 | |
| KOMATSU | 1314431H91 | |
| KOMATSU | VJ5139 | |
| KOMATSU | OOOVJ5139 | |
| KOMATSU | 5139 | |
| KOMDRESCO SA | 5139 | |
| LBX COMPANY LLC | KWH0029 | |
| LEROI | GD172995 | |
| LEROI | 439431 | |
| LEROI | GD2010507 | |
| LEROI | 469431 | |
| LEROI | GD141857301 | |
| LETOURNEAU | PB0293 | |
| LETOURNEAU | 4035541 | |
| LETOURNEAU | PB1525 | |
| LETOURNEAU | 403554100 | |
| LETOURNEAU | VJ5139 | |
| LETOURNEAU | 4133391 | |
| LETOURNEAU | VY8321 | |
| LETOURNEAU | VY7503 | |
| LETOURNEAU | VW9357 | |
| LETOURNEAU | VW4492 | |
| LETOURNEAU | VS1353 | |
| LETOURNEAU | VY9198 | |
| LIEBHERR | 7361355 | |
| LINK BELT | KWH0029 | |
| LOESING | 020008 | |
| LOESING | 20894 | |
| MACK | 2191P182039 | |
| MCCORMICK | N1950527 | |
| MERCEDES-BENZ | A00909488 | |
| MICHIGAN | 1564833 | |
| MTU | 182039016140 | |
| NELSON | 70072L | |
| NEW HOLLAND | 101071 | |
| NEW HOLLAND | SFD45252 | |
| NEW HOLLAND | 700701211 | |
| NEW HOLLAND | 84217251 | |
| NUTECH | N2062 | |
| NUTECH | S2062 | |
| OCUATRO | EP350 | |
| ORENSTEIN & KOPPEL | 8024622 | |
| ORENSTEIN & KOPPEL | 0718325 | |
| P & H | 4623 | |
| P & H | 1046Z478 | |
| P & H | GH172995 | |
| PERLINI | 102264P | |
| PERLINI | 11028111 | |
| POCLAIN | X0850538 | |
| POSTAS | HF1339 | |
| RAYGO | 0774290 | |
| REFILCO | AF2128 | |
| REFILCO | AF21280 | |
| RENAULT VI | 3564128 | |
| RENAULT VI | 3564085 | |
| RENAULT VI | 0003564128 | |
| RENAULT VI | 0003564085 | |
| ROBBINS | 18001095 | |
| ROMAN | R900 | |
| RUSTON BUCYRUS | 46163302 | |
| RUSTON BUCYRUS | PS467069 | |
| RUSTON BUCYRUS | 62003818 | |
| RYGO | 67000044 | |
| RYGO | 67000015 | |
| SANDVIK | 04710040 | |
| SANDVIK | SC4710040 | |
| SANDVIK | 4710040 | |
| SCHRAMM | 50005710 | |
| STEIGER | 45252S1 | |
| STEIGER | P181039 | |
| SULLAIR | 250039599 | |
| SUMITOMO | KWH0029 | |
| TAMROCK | 002004058 | |
| TAMROCK | 81824639 | |
| TAMROCK | 04710040 | |
| TEREX | 101072 | |
| TEREX | 9059511 | |
| TEREX | N1950527 | |
| TEREX | 9038900 | |
| TEREX | 8024622 | |
| TEREX | 9396292 | |
| TEREX | 9035992 | |
| TEREX | 0718325 | |
| TEREX | 9059561 | |
| TEREX | 15274335 | |
| TIM | 1N8165 | |
| TLD | E70211501 | |
| TRACKMOBILE | 1067235 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687756 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687476 | |
| VERMEER | 616071001 | |
| VERMEER | 152413001 | |
| VMC | AF182039 | |
| VME | VOE4881174 | |
| VME | 966538 | |
| VME | A966538 | |
| VME | 6233146 | |
| VME | 4881174 | |
| VME | 44811749 | |
| VME | 48811749 | |
| VME | 4012356 | |
| VME | 4076875 | |
| VOLVO | VOE4881174 | |
| VOLVO | 4881749 | |
| VOLVO | 79200549 | |
| VOLVO | 220055035 | |
| VOLVO | M1564833 | |
| VOLVO | 6233146 | |
| VOLVO | 4881174 | |
| VOLVO | 44811749 | |
| VOLVO | 62331467 | |
| WABCO | 4017640 | |
| WABCO | 4047601 | |
| WAGNER MINING EQUIPMENT | 5540108600 | |
| WAGNER MINING EQUIPMENT | 5540417500 | |
| WALGAHN-MOTORENTECHN | 00811056 | |
| WALGAHN-MOTORENTECHN | 811140 | |
| WALGAHN-MOTORENTECHN | 811056 | |
| WALGAHN-MOTORENTECHN | 00811140 | |
| WGB | SA325 | |
| WIRTGEN | 3186 | |
| XCMG | 800151997 | |
| XCMG | 800160525 | |
| XCMG | 800176885 | |
| XCMG | ZL0310040 | with no safety filter（P114931） |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 8425 | - | TRACTOR | 8000 SERIES | CUMMINS N14 | - |
| AGCO 8425 AGCOSTAR | - | TRACTOR | 8000 SERIES | CUMMINS N14 | - |
| ATLAS COPCO DM45 | - | DRILLING EQUIPMENT | - | CATERPILLAR C18 | - |
| CASE/CASE IH 220ALT | - | EXCAVATOR | - | - 220ALT | - |
| CASE/CASE IH 300ALT | - | EXCAVATOR | - | - 300ALT | - |
| CASE/CASE IH EC1000 | - | EXCAVATOR | - | DETROIT DIESEL 8V-71N | - |
| CASE/CASE IH HC300 | - | EXCAVATOR TRACKED | - | DETROIT DIESEL 8V-71N | - |
| DAEWOO DX700LC | - | EXCAVATOR TRACKED | - | ISUZU AH6WG1X | - |
| EUCLID R22 | - | HAUL TRUCK | - | DETROIT DIESEL 6-110 | - |
| EUCLID R24 | - | HAUL TRUCK | - | CUMMINS NH250 | - |
| HITACHI LX300-7A | - | LOADER WHEELED | - | ISUZU 6WG1 | - |
| HITACHI LX360E | - | LOADER WHEELED | LX SERIES | ISUZU 6WG1 | - |
| INGERSOLL RAND DM11 | - | COMPRESSOR | - | - DM11 | - |
| INGERSOLL RAND DM30 | - | DRILLING EQUIPMENT | - | - DM30 | - |
| INGERSOLL RAND DM50 | - | DRILLING EQUIPMENT | - | DETROIT DIESEL 12V-71N | - |
| INGERSOLL RAND DMM3 | - | DRILLING EQUIPMENT | - | - DMM3 | - |
| KAWASAKI KLD 110 ZII | - | LOADER WHEELED | - | CUMMINS KT1150 | - |
| KAWASAKI KLD 95ZII | - | LOADER WHEELED | - | NISSAN RD8T04 | - |
| KAWASAKI KLD 95ZII | - | LOADER WHEELED | - | CUMMINS NT855 | - |
| KENWORTH 548 | - | TRUCK | - | - 548 | - |
| KENWORTH 953 | - | TRUCK | - | - 953 | - |
| KENWORTH 993 | - | TRUCK | - | - 993 | - |
| KENWORTH ATX | - | TRUCK | - | - ATX | - |
| KENWORTH BRUTE | - | TRUCK | - | - BRUTE | - |
| KENWORTH C520 | - | TRUCK | - | - C520 | - |
| KENWORTH K184 | - | TRUCK | - | - K184 | - |
| KENWORTH W300 | - | TRUCK | - | - W300 | - |
| KOMATSU 222G | - | SCRAPER | - | DETROIT DIESEL 8V-71T | - |
| KOMATSU 229G | - | SCRAPER | - | DETROIT DIESEL 8V-71T | - |
| KOMATSU 252FT | - | SCRAPER | REAR ENGINE | - 252FT | - |
| KOMATSU PF545 | - | EXCAVATOR | - | CUMMINS NT855 | - |
| KOMATSU PF555 | - | EXCAVATOR | - | CUMMINS NT855 | - |
| TEREX 49LOTS24 | - | SCRAPER | - | - 49LOTS24 | - |
| TEREX THS15 | - | SCRAPER | - | - THS15 | - |
| XCMG XE900D | - | EXCAVATOR | - | CUMMINS QSX15 | - |
| XCMG XE950D | - | EXCAVATOR | - | CUMMINS QSX15 | - |
| XCMG XE950D | - | EXCAVATOR TRACKED | - | CUMMINS QSX15 | - |
