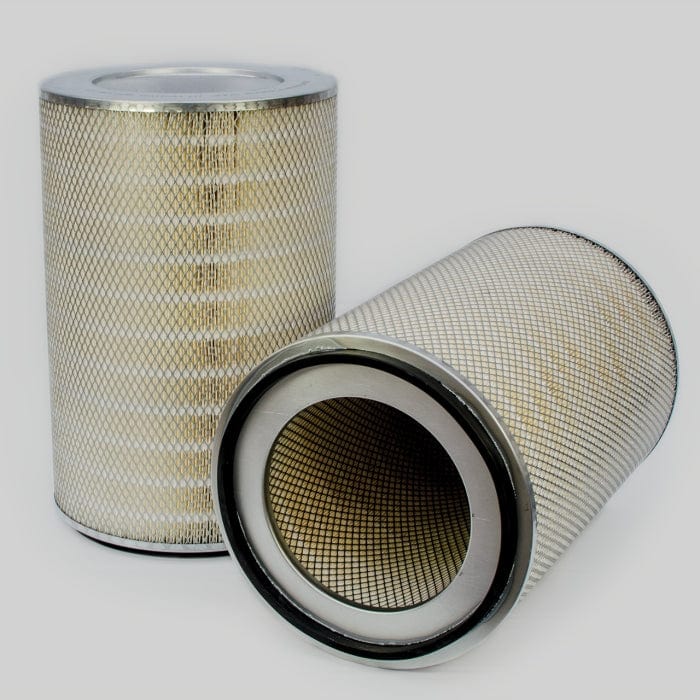

Air Filter, Primary Round - Donaldson P182002
Air Filter, Primary Round - Donaldson P182002
Regular price
£72.14
Regular price
Sale price
£72.14
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P182002
Air Filter, Primary Round| Outer Diameter | 12.09 inch (307.2 mm) |
| Inner Diameter | 7.72 inch (196.1 mm) |
| Length | 18.00 inch (457.2 mm) |
| Overall Length | 18.50 inch (469.9 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | FHG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 196.1 mm (7.72 inch)
- Length: 457.2 mm (18.00 inch)
- Overall Length: 469.9 mm (18.50 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: FHG
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.315 m (12.60 inch)
- Packaged Height: 0.482 m (19.29 inch)
- Packaged Weight: 4.249 kg (9.37 lb)
- Packaged Volume: 0.050 m3 (1.77 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330026496
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP847A | |
| AEC WHITLOCK | W00011812 | |
| AEC WHITLOCK | W00011812 | |
| AEC WHITLOCK | A0542997 | |
| AG CHEM EQUIPMENT | 27407 | |
| AGCO | AG027407 | |
| AGCO | 07721517 | |
| AGCO | 7721517 | |
| ALLIS-CHALMERS | 0197569P | |
| ALLIS-CHALMERS | 0198780P | |
| ALLIS-CHALMERS | 70659386 | |
| ALLIS-CHALMERS | 70659397 | |
| ALLIS-CHALMERS | 0659386P | |
| ALLIS-CHALMERS | 659386 | |
| ALLIS-CHALMERS | 197822 | |
| ALLIS-CHALMERS | 197569 | |
| ALLIS-CHALMERS | 198780 | |
| ALLIS-CHALMERS | 659378 | |
| ALLIS-CHALMERS | 6593875 | |
| AMERICAN CRANE CORPORATION | 832250 | |
| AMERICAN CRANE CORPORATION | 834639 | |
| AMERICAN MOTORS CORPORATION | SFA7033SET | |
| AMERICAN MOTORS CORPORATION | 491NNA | |
| AMERICAN MOTORS CORPORATION | AE16440 | |
| AMERICAN MOTORS CORPORATION | SFA1002P | |
| AMERICAN MOTORS CORPORATION | AE16070 | |
| AMERICAN MOTORS CORPORATION | AE22120 | |
| ARMAFILT | L3044700 | |
| ASSOCIATE AUTOMOTIVE | XBU1623 | |
| ASTEC UNDERGROUND | 3014051066 | |
| ATLAS | 2914500800 | |
| ATLAS | 352887 | |
| ATLAS COPCO | 9826095048 | |
| ATLAS COPCO | 1310032430 | |
| ATLAS COPCO | 5535345000 | |
| ATLAS COPCO | 2934998609 | |
| ATLAS COPCO | 353450 | |
| ATLAS WEYHAUSEN | 2654457 | |
| ATLAS WEYHAUSEN | 277707 | |
| ATLAS WEYHAUSEN | 276998 | |
| AUSTOFT | 180935 | |
| BADGER | 76041812 | |
| BAUDOUIN | STC67511002 | |
| BAUER | 10682417 | |
| BELL | 220947 | |
| BELL | 20947 | |
| BLOUNT | 30004243 | |
| BLOUNT | 31001517 | |
| BLOUNT | 532859 | |
| CAMECO | 0061324807 | |
| CAMECO | 1324807 | |
| CAMECO | 0061384978 | |
| CAMECO | 61324807 | |
| CAMECO | AT253843 | |
| CAMECO | 61384978 | |
| CARBOCOL | 12500 | |
| CASE/CASE IH | 441093C1 | |
| CASE/CASE IH | A0850528 | |
| CASE/CASE IH | 1849120 | |
| CASE/CASE IH | A238 | |
| CASE/CASE IH | D6250506 | |
| CASE/CASE IH | 2829S1 | |
| CASE/CASE IH | 1930761 | |
| CASE/CASE IH | M0850528 | |
| CASE/CASE IH | 707721517 | |
| CASE/CASE IH | 151849120 | |
| CATERPILLAR | 3I0892 | |
| CATERPILLAR | 3I0761 | |
| CATERPILLAR | 7C8302 | |
| CATERPILLAR | 3I0372 | |
| CATERPILLAR | 9034222 | |
| CATERPILLAR | 30257 | |
| CATERPILLAR | 3I1432 | |
| CATERPILLAR | 31001517 | |
| CATERPILLAR | OE45521 | |
| CATERPILLAR | 30004243 | |
| CATERPILLAR | 9Y6827 | |
| CATERPILLAR | 81536222 | |
| CATERPILLAR | 81800904 | |
| CENTURY II | 1046Z670 | |
| CHARDONNET | 7218103400 | |
| CHICAGO PNEUMATIC | 20PS2690 | |
| CHICAGO PNEUMATIC | 295PS269 | |
| CHICAGO PNEUMATIC | 295PS2690 | |
| CLARK | 1529585 | |
| CLARK | 061805694 | |
| CLARK | 61805694 | |
| CLARK | 1513874 | |
| CLARK | 3664919 | |
| CLARK | 946857 | |
| CLARK | 1529622 | |
| CLARK | 945867 | |
| COLT | 123353050 | |
| COMPAIR | 9826250060001 | |
| COMPAIR | 9826250260001 | |
| COMPAIR | 982625026 | |
| COMPAIR | 982625006 | |
| COMPAIR | 1078A69580 | |
| COMPAIR | 43778 | |
| COMPAIR | CZ43778 | |
| COOP | AP106632 | |
| COOP | AP106587 | |
| COOP | PMA106632 | |
| COOPERS | AZA153T | |
| COUGLAR INDUSTRIES | T303715M | |
| CUB CADET | 441093C1 | |
| CUMMINS | 3013206 | |
| CUMMINS | 204635 | |
| CUMMINS | 204645 | |
| CUMMINS | 204644 | |
| CUMMINS | 3000307 | |
| CUMMINS | AF0000472M | |
| D A PRODUCTS PTY LTD | XBU1623 | |
| DAEWOO | 47400004A | |
| DEMAG | 00528374069 | |
| DEMAG | 528374 | |
| DENYO | P117443 | |
| DEUTZ | 09947261 | |
| DEUTZ | 11806560005 | |
| DEUTZ | 07721517 | |
| DONSSON | DA2103 | |
| DOOSAN | 47400004 | |
| DORMAN | 12P5514 | |
| EIMCO | 920A200101 | |
| ENMTP CPG | 550891614 | |
| ENMTP CPG | 5508916 | |
| EUCLID | 11993584 | |
| EUCLID | 9034222 | |
| EUCLID | 9232186 | |
| EUCLID | 9232508 | |
| EUCLID | 6920340 | |
| EUCLID | 9038901 | |
| EUCLID | 4789522 | |
| EXMAN | AE16070 | |
| EXMAN | AE16440 | |
| EXMAN | 491NNA | |
| EXMAN | SFA1002P | |
| EXMAN | AE22120 | |
| EXMAN | SFA7033SET | |
| EXXEL PTY LTD | 14440006 | |
| FIAT | 104146 | |
| FIAT | 70659397 | |
| FIAT | 70662607 | |
| FIAT | 70659386 | |
| FIAT | 706593977 | |
| FIAT | 1849120 | |
| FIAT | 503251 | |
| FIAT | 30257 | |
| FIAT | 198780 | |
| FIAT | 07721517 | |
| FIAT | 70197822 | |
| FIAT | 70197569 | |
| FIAT | 70198780 | |
| FIAT | 77721517 | |
| FIAT | 707721517 | |
| FIAT | 70659387 | |
| FIELD QUEEN | 73430 | |
| FODEN | Y03583806 | |
| FORD | D0HZ9601H | |
| FORD | 9576P181002 | |
| FORD | 9576P182002 | |
| FREIGHTLINER | DNP182002 | |
| FREIGHTLINER | DNP181002 | |
| FSA | FA3360 | |
| FURUKAWA | 441093C1 | |
| FURUKAWA | 2420307008 | |
| GETMAN | 605415 | |
| GRADALL | 77384892 | |
| GREYFRIARS | 292A | |
| GROVE | 9304100003 | |
| GROVE | 9304100123 | |
| GROVE | P181002 | |
| HANOMAG TRAKTOREN | 3072254M1 | |
| HAVAM | HD6825 | |
| HINO | 178012550C | |
| HINO | 178012550A | |
| HINO | 178012550 | |
| HITACHI | 662607 | |
| HITACHI | 659387 | |
| HITACHI | 946857 | |
| INDUCONTROL | AR502 | |
| INGERSOLL RAND | 91634345 | |
| INGERSOLL RAND | 10682417 | |
| INGERSOLL RAND | 35109263 | |
| INGERSOLL RAND | 10682417BN08505 | |
| INGERSOLL RAND | 35351092 | |
| INGERSOLL RAND | 945867 | |
| INGERSOLL RAND | 1R3535109263 | |
| INGERSOLL RAND | 15295850 | |
| INGERSOLL RAND | 15296220 | |
| INTERNATIONAL | 441093C1 | |
| INTERNATIONAL | 924039R91 | |
| INTERNATIONAL | 3039971R1 | |
| IVECO | 503251 | |
| JOHN DEERE | AT253843 | |
| KHD | 9947261 | |
| KHD | 09947261 | |
| KNECHT | LX760 | |
| KOBELCO | 2446U212S3 | |
| KOBELCO | PF043006002 | |
| KOBELCO | PF04300603 | |
| KOBELCO | PF0430063 | |
| KOBELCO | 2446Z126D5 | |
| KOBELCO | 2446U177S3 | |
| KOEHRING | 9011243 | |
| KOMATSU | 6127S17310 | |
| KOMATSU | 3072254M | |
| KOMATSU | 6127S17320 | |
| KOMATSU | 00528374069 | |
| KOMATSU | 528374069 | |
| KOMATSU | 7127818311 | |
| LBX COMPANY LLC | 124974 | |
| LEROI | GD2010510 | |
| LEROI | GD141828301 | |
| LETOURNEAU | 4939 | |
| LETOURNEAU | VJ1880 | |
| LETOURNEAU | XVP4713 | |
| LETOURNEAU | VS0048 | |
| LETOURNEAU | PB0125 | |
| LETOURNEAU | VP4713 | |
| LETOURNEAU | VN4939 | |
| LETOURNEAU | VN1709 | |
| LETOURNEAU | VJ1709 | |
| LETOURNEAU | VY2820 | |
| LETOURNEAU | VY9166 | |
| LETOURNEAU | VY1709 | |
| LETOURNEAU | VS1384 | |
| LETOURNEAU | VS48 | |
| LEYLAND-DAF (LDV) | ABU8514 | |
| LEYLAND-DAF (LDV) | ABU4557 | |
| LIEBHERR | 550891614 | |
| LIEBHERR | 7364115 | |
| LOESING | 022003 | |
| LOESING | 20895 | |
| LOESING | 22003 | |
| MACK | 2191P182002 | |
| MANITOWOC | 9304100023 | |
| MARINE TRAVELIFT, INC. | 609889 | |
| MARINE TRAVELIFT, INC. | 609507 | |
| MERCEDES-BENZ | 0030941104 | |
| MERCEDES-BENZ | A0030941104 | |
| MERCEDES-BENZ | 30941104 | |
| MICHIGAN | 529585 | |
| MISFAT | 783400 | |
| MITSUBISHI | 3123011900 | |
| MITSUI DEUTSCHE CO | 22203090 | |
| MORBARK | 29321212 | |
| MWM | 11806560005 | |
| NACCO MATERIALS | 0889664 | |
| NACCO MATERIALS | 889664 | |
| NEOPART | DONP182002 | |
| NEOPLAN | DONP182002 | |
| NEOPLAN | DONXLP182002 | |
| NEW FLYER INDUSTRIES LTD | A0542997 | |
| NEW HOLLAND | 1930761 | |
| NEW HOLLAND | 70659387 | |
| NEW HOLLAND | 101161 | |
| NEW HOLLAND | 2829S1 | |
| NEW HOLLAND | 07721517 | |
| NEW HOLLAND | 026XLP182002 | |
| NEW HOLLAND | 707721517 | |
| NISSAN/UD TRUCKS | 1654699404 | |
| NISSAN/UD TRUCKS | 16546ND00J | |
| NISSAN/UD TRUCKS | 16546NB04JP | |
| NISSAN/UD TRUCKS | 16546CW45P | |
| NISSAN/UD TRUCKS | 1654697004 | |
| NUTECH | S1760 | |
| NUTECH | N1760 | |
| NUTECH | T1760 | |
| OCUATRO | EP310 | |
| ORENSTEIN & KOPPEL | 1448535 | |
| OSHKOSH | IDX83 | |
| OSHKOSH | 1DX83 | |
| OTTAWA TRUCK | 90002232 | |
| PACCAR | Y05836212 | |
| PERKINS | CV4182 | |
| PERKINS | OE45521 | |
| POCLAIN | A0850528 | |
| POSTAS | HF1329 | |
| QUINCY NORTHWEST | H1226 | |
| REFILCO | AF2422 | |
| REFILCO | AD2422 | |
| RENAULT VI | 0003564137 | |
| RENAULT VI | 5000819343 | |
| RENAULT VI | 3564137 | |
| REX | 1021006610 | |
| ROGERS MACHINERY | H1226 | |
| ROLLS ROYCE | CV9685 | |
| ROMAN | R903 | |
| ROMAN | 55508304018 | |
| ROMAN | 81083040059 | |
| ROVER | ABU7466 | |
| ROVER | ABU5768 | |
| ROVER | 37H2924 | |
| RYGO | 67000049 | |
| SAAB | 310816 | |
| SAKAI | 440636003 | |
| SAMCOR PRETORIA | PFA902 | |
| SAMCOR PRETORIA | SFA282 | |
| SANDVIK | 69008899 | |
| SANDVIK | 69040517 | |
| SANTAL | SA19290344P | |
| SHINKO ZOKI | 100280020 | |
| SHUTTLELIFT INC | 609507 | |
| STEIGER | 28029 | |
| SULLAIR | 049903 | |
| SULLAIR | 250030817 | |
| SULLAIR | 49903 | |
| SURGERIENNE | 45815763 | |
| TAMROCK | 6908899 | |
| TAMROCK | 69008899 | |
| TEREX | 9059502 | |
| TEREX | 9396394 | |
| TEREX | 9396294 | |
| TEREX | 9034222 | |
| TEREX | 9059552 | |
| TEREX | 9059556 | |
| TEREX | D6250506 | |
| TEREX | 834639 | |
| TEREX | 15274334 | |
| TEREX | 101038 | |
| TEREX | 1448595 | |
| TEREX | 101057A | |
| TEREX | 101056 | |
| TEREX | 8001178 | |
| TEREX | 9038901 | |
| TEREX | 901V1243 | |
| TFMC | T47811 | |
| TIM | 7C8302 | |
| TODD GT | 2242050 | |
| TOYOTA | 1628320100 | |
| TROJAN | 695303000 | |
| TRUCK CARE | 7302830 | |
| UNIPART | 37H2924 | |
| UNIPART | ABU7466 | |
| UNIPART | ABU5768 | |
| UNIT RIG EQUIPMENT | 903156 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687380 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687728 | |
| VAN HOOL | 631200870 | |
| VMC | AF182002 | |
| VME | VOE11993584 | |
| VME | 4789522 | |
| VME | 4785922 | |
| VME | 6920340 | |
| VME | 4015861 | |
| VOLVO | 700016 | |
| VOLVO | 47859228 | |
| VOLVO | 946857 | |
| VOLVO | 220055090 | |
| VOLVO | 11993584 | |
| VOLVO | 4789522 | |
| VOLVO | 200055090 | |
| VOLVO | 4785922 | |
| VOLVO | VOE11993584 | |
| WAGNER MINING EQUIPMENT | 353450 | |
| WALGAHN-MOTORENTECHN | 811136 | |
| WALGAHN-MOTORENTECHN | 811031 | |
| WALGAHN-MOTORENTECHN | 00811031 | |
| WALGAHN-MOTORENTECHN | 00811136 | |
| WARTSILA | L3044700 | |
| WGB | SA326 | |
| WHITE | 127075128 | |
| WHITE | 27101209 | |
| WHITE | 27075128 | |
| YALE | 6953030 |
