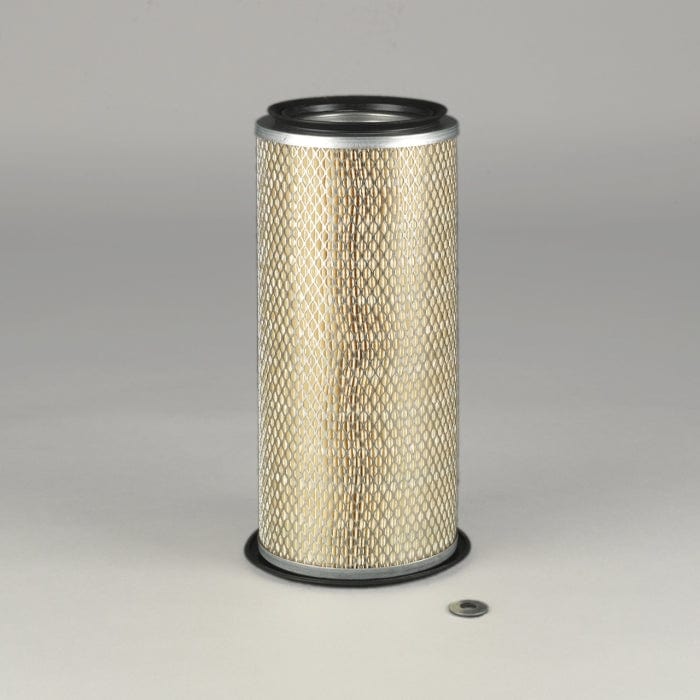

Air Filter, Primary Round - Donaldson P181204
Air Filter, Primary Round - Donaldson P181204
Regular price
£63.14
Regular price
Sale price
£63.14
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181204
Air Filter, Primary Round| Outer Diameter | 6.68 inch (169.67 mm) |
| Inner Diameter | 3.75 inch (95.25 mm) |
| Length | 15.31 inch (388.87 mm) |
| Overall Length | 15.31 inch (389 mm) |
| Bolt Hole Diameter | 0.43 inch (11 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 169.67 mm (6.68 inch)
- Inner Diameter: 95.25 mm (3.75 inch)
- Length: 388.87 mm (15.31 inch)
- Overall Length: 389 mm (15.31 inch)
- Bolt Hole Diameter: 11 mm (0.43 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.200 m (8.00 inch)
- Packaged Width: 0.205 m (8.20 inch)
- Packaged Height: 0.405 m (16.20 inch)
- Packaged Weight: 1.587 kg (3.50 lb)
- Packaged Volume: 0.017 m3 (0.62 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330026434
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A710C | |
| AMERICAN AUGERS | 8NG800091 | |
| AMERICAN MOTORS CORPORATION | SFA1204P | |
| AMERICAN PARTS | 1507 | |
| AMERICAN PARTS | 94530 | |
| ATLAS COPCO | CD0817610826 | |
| AVELING-BARFORD | ABP3001565 | |
| AVELING-BARFORD | 92742 | |
| BIG A | 94530 | |
| BIG A | 1507 | |
| CASE/CASE IH | 81866927 | |
| CATERPILLAR | 3I0887 | |
| CLEAN | MA547 | |
| COLT | 234581 | |
| CONTINENTAL | PCA1588 | |
| COOPERS | AZA105 | |
| CROSLAND | 9581 | |
| DELUXE | AF743 | |
| DELUXE | 743 | |
| DIAMOND | DX2518 | |
| DONSSON | DA2142 | |
| EXMAN | SFA1204P | |
| FIAAM | FLI6585 | |
| FIAT | 81866927 | |
| FODEN | Y05773204 | |
| FORD | D8NN9601AA | |
| FORD | 1866927 | |
| FORD | D1NN9601A | |
| FORD | D1NN9600A | |
| FORD | D9NN9601AA | |
| FORD | E9NN9601AA | |
| FORD | E9NN9601M | |
| FORD | 9576P181204 | |
| FORD | EONN9N627AA | |
| FORD | E0TZ9601D | |
| FORD | 1823934 | |
| FORD | EOTZ9601D | |
| FREIGHTLINER | DNP181204 | |
| GARDNER DENVER | 2116701 | |
| GPC | FC250 | |
| GREYFRIARS | 332A | |
| GUD | ADG582 | |
| GUD | ADG682 | |
| HAVAM | HD8240 | |
| INGERSOLL RAND | 92867357 | |
| KRALINATOR | LA698 | |
| LOCKHEED | LK3627 | |
| LOCKHEED | AP3627 | |
| LOESING | 20324 | |
| LOESING | 020324 | |
| MASSEY FERGUSON | 3621291M1 | |
| NELSON | 84752S | |
| NEW HOLLAND | E9NN9601AA | |
| NEW HOLLAND | 81866927 | |
| NUTECH | N2431 | |
| OLSSONS I ELLOS AB | 1616 | |
| QUAKER STATE | QSA1588 | |
| REFILCO | AF6530 | |
| TECNO COMP | TM029 | |
| UNITED ENGINE LIFE | V250DX216A | |
| UNITED ENGINE LIFE | 250D42 | |
| UNITED ENGINE LIFE | 250D42S | |
| VALMET | 4401113 | |
| VAPORMATIC | VPD7007 | |
| VMC | AF181204 | |
| VMC | AH181204 | |
| WALGAHN-MOTORENTECHN | 00811556 | |
| WALGAHN-MOTORENTECHN | 811556 | |
| YOUNG MACHINE COMPANY | 460280 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO 60KW | - | GENERATOR SET | - | - 60KW | - |
| FORD 2600 | - | TRACTOR | - | - 2600 | - |
| FORD 2610 | - | TRACTOR | - | - 2610 | - |
| FORD 335 | - | TRACTOR | - | - 335 | - |
| FORD 3610 | - | TRACTOR | - | FORD 175 | - |
| FORD 4610 | - | TRACTOR | - | FORD 4610 | - |
| FORD 540A | - | TRACTOR | - | - 540A | - |
| FORD 555B | - | BACKHOE LOADER | - | - 555B | - |
| FORD 55A | - | LOADER | - | - 55A | - |
| FORD 6410 | - | TRACTOR | - | FORD 256 | - |
| FORD 655 | 1975 | LOADER | - | FORD 655 | - |
| FORD 655A | - | BACKHOE LOADER | - | - 655A | - |
| FORD 655C | 1982 | BACKHOE LOADER | - | FORD 655C | - |
| FORD 6610 | - | TRACTOR | - | FORD 256 | - |
| FORD 6700 | - | TRACTOR | - | FORD 256 | - |
| FORD 6710 | - | TRACTOR | - | FORD 256 | - |
| FORD 7000 | 1965 | TRACTOR | - | FORD 7000 | - |
| FORD 7100 | - | TRACTOR | - | - 7100 | - |
| FORD 7200 | - | TRACTOR | - | - 7200 | - |
| FORD 750 | - | TRACTOR | - | FORD 256 | - |
| FORD 7500 | - | TRACTOR | - | - 7500 | - |
| FORD 755 | - | TRACTOR | - | - 755 | - |
| FORD 7600 | 1975 | TRACTOR | - | FORD 7600 | - |
| FORD 7610 | 1981 | TRACTOR | - | FORD ADE236T | - |
| FORD 7700 | - | COMBINE | - | FORD 7700 | - |
| FORD 7710 | - | TRACTOR | - | - 7710 | - |
| FORD 8210 | - | TRACTOR | - | - 8210 | - |
| FORD 8260 | - | TRACTOR | - | - 8260 | - |
| FORD 8400 | - | TRACTOR | - | - 8400 | - |
| FORD 8530 | - | TRACTOR | - | FORD 401D | - |
| FORD 8600 | - | TRACTOR | - | - 8600 | - |
| FORD 8700 | - | TRACTOR | - | FORD 401D | - |
| FORD 8830 | - | TRACTOR | - | FORD 401TI | - |
| FORD 9600 | - | TRACTOR | - | - 9600 | - |
| FORD BSD-444 | - | ENGINE | - | - BSD-444 | - |
| FORD BSD-444T | - | ENGINE | - | - BSD-444T | - |
| FORD BSD-666 | - | ENGINE | - | - BSD-666 | - |
| FORD TW-10 | - | TRACTOR | - | FORD 401 | - |
| FORD TW-5 | - | TRACTOR | - | FORD 401 | - |
| NEW HOLLAND 3010 | - | TRACTOR | - | - 3010 | - |
| NEW HOLLAND 555D | - | LOADER | - | - 555D | - |
| NEW HOLLAND 575D | - | LOADER | - | - 575D | - |
| NEW HOLLAND 655A | - | BACKHOE LOADER | - | FORD BSD442 | - |
| NEW HOLLAND 655D | - | LOADER | - | - 655D | - |
| NEW HOLLAND 675D | - | BACKHOE LOADER | - | - 675D | - |
| NEW HOLLAND 7010 | - | COMBINE | - | - 7010 | - |
| NEW HOLLAND 755 | - | BACKHOE LOADER | - | FORD ESD662 | - |
| NEW HOLLAND 7810S | - | TRACTOR | - | - 7810S | - |
| NEW HOLLAND 8010 | - | TRACTOR | - | - 8010 | - |
| NEW HOLLAND BW38 | - | BALER | - | - BW38 | - |
