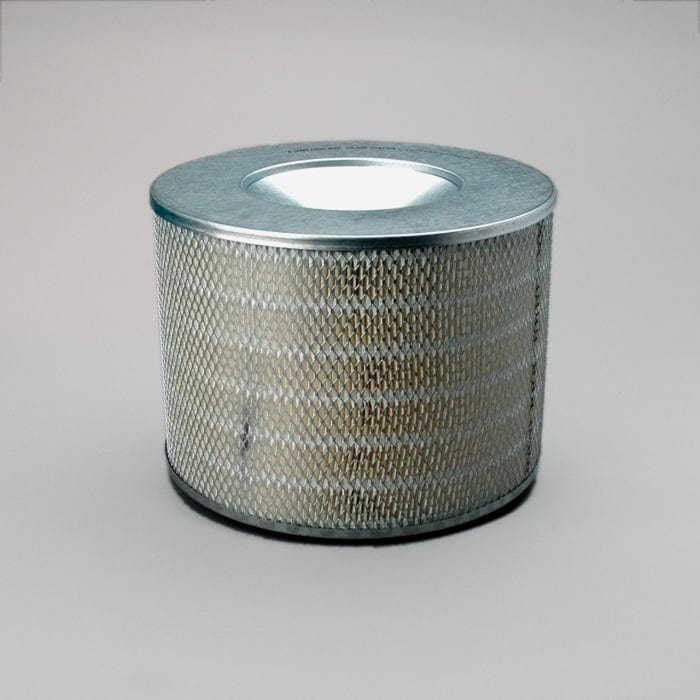

Air Filter, Primary Round - Donaldson P181189
Air Filter, Primary Round - Donaldson P181189
Regular price
£99.70
Regular price
Sale price
£99.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181189
Air Filter, Primary Round| Outer Diameter | 13.84 inch (351.5 mm) |
| Inner Diameter | 7.48 inch (190 mm) |
| Length | 10.00 inch (254 mm) |
| Overall Length | 10.50 inch (266.7 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Primary Application | FORD E2HZ9601B |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 351.5 mm (13.84 inch)
- Inner Diameter: 190 mm (7.48 inch)
- Length: 254 mm (10.00 inch)
Packaged Dimensions
- Packaged Length: 0.400 m (16.00 inch)
- Packaged Width: 0.400 m (16.00 inch)
- Packaged Height: 0.283 m (11.30 inch)
- Packaged Weight: 3.587 kg (7.90 lb)
- Packaged Volume: 0.048 m3 (1.70 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330026397
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A933C | |
| AMERICAN PARTS | 1593 | |
| AMERICAN PARTS | 94350 | |
| BIG A | 94350 | |
| CATERPILLAR | 3I0884 | |
| CATERPILLAR | 7C8317 | |
| CATERPILLAR | 7W7420 | |
| CATERPILLAR | 3I0953 | |
| DART | PPP181189 | |
| FORD | F4HT9600A | |
| FORD | 9576P181189 | |
| FORD | E2HZ9601B | |
| FORD | 9575P181189 | |
| FREIGHTLINER | DNP181189 | |
| GUARDIAN | G148727 | |
| KRALINATOR | LA1070 | |
| LOESING | 022061 | |
| LOESING | 22061 | |
| NELSON | 84948S | |
| NUTECH | N1728 | |
| PRO MATCH | 7C8317 | |
| REFILCO | AF6350 | |
| TAMROCK | A88697629 | |
| TIM | 7W7420 | |
| TIM | 7C8317 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687704 | |
| VMC | AF181189 | |
| VOLVO | 3131433 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3304 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3208 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3406 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3306 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3512 | - |
| FORD CL-9000 | - | TRUCK | - | CUMMINS L10 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3204 | - |
| FORD CL-9000 | - | TRUCK | - | CATERPILLAR 3160 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3512 | - |
| FORD CLT-9000 | - | TRUCK | - | CUMMINS L10 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3160 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3208 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3204 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3406 | - |
| FORD CLT-9000 | - | TRUCK | - | CATERPILLAR 3304 | - |
| FORD W-9000 | - | TRUCK | - | CUMMINS L10 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3512 | - |
| FORD WT-9000 | - | TRUCK | - | CUMMINS L10 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3160 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3204 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3208 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3306 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3406 | - |
| FORD WT-9000 | - | TRUCK | - | CATERPILLAR 3304 | - |
