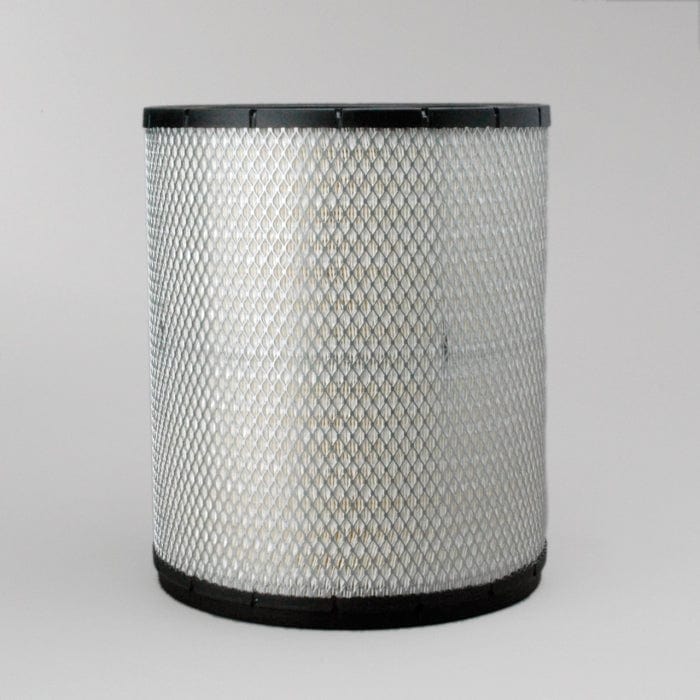

Air Filter, Primary Round - Donaldson P181118
Air Filter, Primary Round - Donaldson P181118
Regular price
£45.98
Regular price
Sale price
£45.98
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181118
Air Filter, Primary Round| Outer Diameter | 11.50 inch (292.1 mm) |
| Inner Diameter | 8.00 inch (203.2 mm) |
| Length | 13.00 inch (330.2 mm) |
| Overall Length | 13.50 inch (342.9 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Primary Application | CATERPILLAR 1P7716 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 292.1 mm (11.50 inch)
- Inner Diameter: 203.2 mm (8.00 inch)
- Length: 330.2 mm (13.00 inch)
- Overall Length: 342.9 mm (13.50 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: CATERPILLAR 1P7716
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.315 m (12.60 inch)
- Packaged Height: 0.354 m (14.17 inch)
- Packaged Weight: 2.958 kg (6.52 lb)
- Packaged Volume: 0.036 m3 (1.30 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330026076
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A537C | |
| AMERICAN MOTORS CORPORATION | AE27070 | |
| AMERICAN MOTORS CORPORATION | SFA7716P | |
| AMERICAN PARTS | 923 | |
| AMERICAN PARTS | 93980 | |
| ARMAFILT | L2903420 | |
| BIG A | 923 | |
| BIG A | 93980 | |
| CARBOCOL | 7W5495 | |
| CASE/CASE IH | 6N2732 | |
| CATERPILLAR | 2P1482 | |
| CATERPILLAR | 4N6274 | |
| CATERPILLAR | 6N2731 | |
| CATERPILLAR | 7N2320 | |
| CATERPILLAR | 3I0859 | |
| CATERPILLAR | 1B7716 | |
| CATERPILLAR | 8N5495 | |
| CATERPILLAR | 7W5495 | |
| CATERPILLAR | 7W7510 | |
| CATERPILLAR | 1P7716E | |
| CATERPILLAR | 1P7716 | |
| CATERPILLAR | 1P6450 | |
| CATERPILLAR | 4N6275 | |
| CHAMP | LAF7716 | |
| CHAMP | AF1875 | |
| CONTINENTAL | PCA598 | |
| COOPERS | AZA617 | |
| COOPERS | SD3205 | |
| CROSLAND | 9566 | |
| CYCLONE | PMA7716HD | |
| DELUXE | AF892 | |
| DELUXE | 892AIR | |
| DELUXE | 892 | |
| DIAMOND | DX716 | |
| DONSSON | DA2124 | |
| EIMCO | 9803081031 | |
| EIMCO | D2NP181118 | |
| EXMAN | AE27070 | |
| EXMAN | SFA7716P | |
| FIAAM | FL16428 | |
| FIAAM | FL16426 | |
| FIAAM | FL6426 | |
| FIAAM | FLI6428 | |
| FIL | HP474 | |
| FINN EQUIPMENT | FFA10945 | |
| FINN EQUIPMENT | FFA945 | |
| FODEN | Y05812211 | |
| FORD | 9576P181118 | |
| FREIGHTLINER | DNP181118 | |
| FSA | FA3448 | |
| GIESSE | AHI1061 | |
| GIF | GA411 | |
| GPC | FC589 | |
| GUARDIAN | G1P7716 | |
| GUD | ADG657 | |
| HAVAM | HD8418 | |
| HESCO | 1P7716 | |
| IACOVOU | IP7716 | |
| IMPERIAL | CV102835 | |
| INDUCONTROL | AR598 | |
| KRALINATOR | LA587 | |
| LOCKHEED | LK3689 | |
| LOESING | 024043 | |
| LOESING | 24043 | |
| MISFAT | 782500 | |
| MISFAT | 0782500 | |
| NELSON | 70414N | |
| NELSON WINSLOW | 1P7716 | |
| NUTECH | S1727 | |
| NUTECH | N1726 | |
| NUTECH | S9012 | |
| ORENSTEIN & KOPPEL | 101078 | |
| P.B.R. | AI3347 | |
| PURFLUX | A867 | |
| PURFLUX | A888 | |
| QUAKER STATE | QSA598 | |
| REFILCO | AF2980 | |
| SOPARIS | FCA3323 | |
| TECNO COMP | TM154 | |
| TEHO | IIM204 | |
| TEHO | 2204 | |
| TEREX | 101078 | |
| TIM | 1B7716 | |
| TODD GT | 2242241 | |
| TRU-AIR | T7716 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687640 | |
| VMC | AF181118 | |
| WALGAHN-MOTORENTECHN | 00811111 | |
| WALGAHN-MOTORENTECHN | 811111 | |
| WARTSILA | L2903420 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 16G | - | GRADER | 16 SERIES | CATERPILLAR 3406T | - |
| CATERPILLAR 245 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 578 | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3406B | - |
| CATERPILLAR 621B | - | SCRAPER | - | CATERPILLAR 3406 | - |
| CATERPILLAR 621E | - | SCRAPER | - | CATERPILLAR 3306 | - |
| CATERPILLAR 621E | - | SCRAPER | 600 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 621F | - | TRACTOR | - | CATERPILLAR 3406C | - |
| CATERPILLAR 621F | - | TRACTOR | - | CATERPILLAR 3406 | - |
| CATERPILLAR 621R | - | SCRAPER | - | - 621R | - |
| CATERPILLAR 621S | - | SCRAPER | - | - 621S | - |
| CATERPILLAR 623B | - | SCRAPER | - | - 623B | - |
| CATERPILLAR 627B | - | SCRAPER | - | - 627B | - |
| CATERPILLAR 627E | - | SCRAPER | - | CATERPILLAR 3406 | - |
| CATERPILLAR 627E PS | - | SCRAPER | - | CATERPILLAR 3406 | - |
| CATERPILLAR 824C | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 825C | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 826C | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 963 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 980B | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 980C | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 980F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR 983B | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR CHALLENGER 75B | - | TRACTOR | - | - CHALLENGER 75B | - |
| CATERPILLAR D250B | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D25C | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D25D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR D300B | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D300D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D30C | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D30D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR D350C | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D350D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D35C | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D35HP | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR D400 | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3406TA | - |
| CATERPILLAR D400D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR D40D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR D6D | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D8N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3406 | - |
| FIAT AD12 | - | TRACTOR TRACKED | - | - AD12 | - |
| FIAT AD12L | - | TRACTOR TRACKED | - | - AD12L | - |
| FIAT AD18 | - | TRACTOR TRACKED | - | - AD18 | - |
| FIAT BD12 | - | TRACTOR TRACKED | - | - BD12 | - |
| FIAT BD12L | - | TRACTOR TRACKED | - | - BD12L | - |
| FIAT BD17 | - | TRACTOR TRACKED | - | - BD17 | - |
| FIAT BD18 | - | TRACTOR TRACKED | - | - BD18 | - |
| FIAT FL12 | - | TRACTOR TRACKED | - | - FL12 | - |
| FIAT FL18 | - | TRACTOR TRACKED | - | - FL18 | - |
| FIATALLIS AD12 | - | DOZER TRACKED | - | - AD12 | - |
| FIATALLIS AD12L | - | DOZER TRACKED | - | - AD12L | - |
| FIATALLIS AD18 | - | DOZER TRACKED | - | - AD18 | - |
| FIATALLIS BD12 | - | DOZER TRACKED | - | - BD12 | - |
| FIATALLIS BD12L | - | DOZER TRACKED | - | - BD12L | - |
| FIATALLIS BD17 | - | DOZER TRACKED | - | - BD17 | - |
| FIATALLIS BD18 | - | DOZER TRACKED | - | - BD18 | - |
| FIATALLIS FL12 | - | DOZER TRACKED | - | - FL12 | - |
| FIATALLIS FL18 | - | DOZER TRACKED | - | - FL18 | - |
| SCHOPF F356 | - | TRACTOR | - | - F356 | - |
