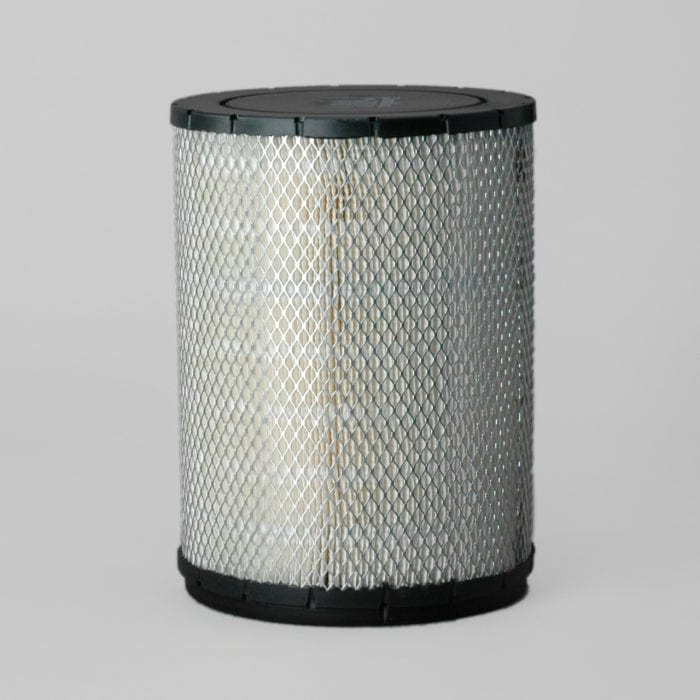

Air Filter, Primary Round - Donaldson P181103
Air Filter, Primary Round - Donaldson P181103
Regular price
£31.14
Regular price
Sale price
£31.14
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181103
Air Filter, Primary Round| Outer Diameter | 9.22 inch (234.1 mm) |
| Inner Diameter | 4.88 inch (124 mm) |
| Length | 12.00 inch (304.8 mm) |
| Overall Length | 12.50 inch (317.5 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 234.1 mm (9.22 inch)
- Inner Diameter: 124 mm (4.88 inch)
- Length: 304.8 mm (12.00 inch)
- Overall Length: 317.5 mm (12.50 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.246 m (9.84 inch)
- Packaged Width: 0.246 m (9.84 inch)
- Packaged Height: 0.325 m (12.99 inch)
- Packaged Weight: 2.113 kg (4.66 lb)
- Packaged Volume: 0.020 m3 (0.73 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330025970
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP3036A | |
| AC DELCO | PC335 | |
| ALCO | MD7076 | |
| ALCOA MARINE | CA1773 | |
| AMERICAN MOTORS CORPORATION | CA1773 | |
| AMERICAN MOTORS CORPORATION | SFA8047P | |
| AMERICAN MOTORS CORPORATION | 850A | |
| AMERICAN MOTORS CORPORATION | AE27240 | |
| AMERICAN PARTS | 294 | |
| AMERICAN PARTS | 93047 | |
| BIG A | 93047 | |
| BIG A | 294 | |
| BROWN DESIGN | 7W5389 | |
| CAMECO | 0060010328 | |
| CATERPILLAR | 3P0085 | |
| CATERPILLAR | 5M957 | |
| CATERPILLAR | 3I0849 | |
| CATERPILLAR | 5M0957 | |
| CATERPILLAR | 9M1884 | |
| CATERPILLAR | 7S2513 | |
| CATERPILLAR | 8N5389 | |
| CATERPILLAR | 4M8047 | |
| CATERPILLAR | 7C9756 | |
| CATERPILLAR | 5S9004 | |
| CATERPILLAR | 1W0217 | |
| CATERPILLAR | 2S3087 | |
| CATERPILLAR | 4M383 | |
| CATERPILLAR | 4M38L | |
| CATERPILLAR | 2S1289 | |
| CATERPILLAR | 4M0383 | |
| CATERPILLAR | 283087 | |
| CATERPILLAR | 8M8047 | |
| CATERPILLAR | 281289 | |
| CATERPILLAR | 1W7364 | |
| CATERPILLAR | 7C6376 | |
| CATERPILLAR | 7W5384 | |
| CATERPILLAR | 7W5389E | |
| CATERPILLAR | 7W5389 | |
| CATERPILLAR | 7C4428 | |
| CATERPILLAR | 2P3224 | |
| CATERPILLAR | 2P34 | |
| CATERPILLAR | 7E5375 | |
| CATERPILLAR | 7E5374 | |
| CHAMP | LAF47 | |
| CHAMP | AF47 | |
| CLARK | 621128 | |
| CLEAN | MA501 | |
| CONTINENTAL | PCA224 | |
| COOP | AP4M8047 | |
| COOP | PMA4M8047 | |
| COOPERS | L95423 | |
| COOPERS | AZA602 | |
| CROSLAND | 9553 | |
| CUMMINS | 253333 | |
| CYCLONE | PMA4M8047 | |
| DELUXE | 599AIR | |
| DELUXE | 599 | |
| DELUXE | AF599 | |
| DEUTZ | 3366456 | |
| DEUTZ | 1522242009 | |
| DEUTZ | 01522242009 | |
| DIAMOND | DX610 | |
| DONIT | 4930501 | |
| DONSSON | DA2047 | |
| EIMCO | 69030005 | |
| EXMAN | SFA8047P | |
| EXMAN | 850A | |
| EXMAN | AE27240 | |
| FIAAM | FL6194 | |
| FIAAM | FLI6194 | |
| FIAAM | FL16194 | |
| FIL | HP411 | |
| FILT | A2221 | |
| FORD | 9576P181103 | |
| FREIGHTLINER | DNP181103 | |
| FSA | FA3306 | |
| GIESSE | AHI1045 | |
| GIF | GA481 | |
| GOULD | AP4M8047 | |
| GPC | FC273 | |
| GREYFRIARS | 1253A | |
| GUARDIAN | G4M8047 | |
| GUD | ADG546 | |
| GUD | L95423 | |
| HAVAM | HD8403 | |
| HESCO | 4M8047 | |
| INDUCONTROL | AR224 | |
| INTRUPA | 83373 | |
| KHD | 01522242009 | |
| KHD | 1522242009 | |
| KHD | 3366456 | |
| KIRKALDIE | KA122 | |
| KNECHT | LX116 | |
| KNECHT | AG141 | |
| KRALINATOR | LA76 | |
| LAUTRETTE | EL3065 | |
| LOCKHEED | LK3036 | |
| LOCKHEED | AP3036A | |
| LOCKHEED | AP3036 | |
| LOESING | 024024 | |
| LOESING | 24024 | |
| M.D.F. SARL | MDA7400 | |
| MISFAT | 782400 | |
| MISFAT | 0782400 | |
| MITSUBISHI | 4574070510 | |
| MITSUBISHI | 7W5389C | |
| NACCO MATERIALS | 3027061 | |
| NACCO MATERIALS | P181103 | |
| NELSON | 70261N | |
| NELSON WINSLOW | WM912A | |
| NUTECH | S1132 | |
| NUTECH | N1131 | |
| ORENSTEIN & KOPPEL | 1449408 | |
| ORENSTEIN & KOPPEL | 101015 | |
| P.B.R. | AI3208 | |
| PERRY | PA599 | |
| POSTAS | HF1164 | |
| PURFLUX | A922 | |
| QUAKER STATE | QSA224 | |
| REFILCO | AF2047 | |
| ROMAN | R8047 | |
| SAVARA | 92702617 | |
| SAVARA | SA026 | |
| SAVARA | 92040111 | |
| SAVARA | 92040117 | |
| SAVARA | 923026 | |
| SAVARA | 92302611 | |
| SAVARA | 92302617 | |
| SOPARIS | FDA3116 | |
| STAY READY | SRPAM912 | |
| STAY READY | SRPA912 | |
| TECHNOCAR | A922 | |
| TECHNOCAR | A532 | |
| TECNO COMP | TM100 | |
| TEHO | IIM202 | |
| TEHO | 2202 | |
| TEREX | 101015 | |
| TIM | 4M0383 | |
| TIM | 8M8047 | |
| TIM | 7W5384 | |
| TRU-AIR | TA7364 | |
| TRU-AIR | T8047 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687612 | |
| UNITED ENGINE LIFE | U4M383 | |
| VMC | AF181103 | |
| WALGAHN-MOTORENTECHN | 00811100 | |
| WALGAHN-MOTORENTECHN | 811100 | |
| WGB | SA128 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 120G | - | GRADER | 120 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 12G | - | GRADER | 12 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 130G | - | GRADER | 130 SERIES | CATERPILLAR 3304T | - |
| CATERPILLAR 215 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3402 | - |
| CATERPILLAR 215B | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 3304B | - | ENGINE | - | - 3304B | - |
| CATERPILLAR 508 | - | SKIDDER | - | CATERPILLAR 3204 | - |
| CATERPILLAR 508 | - | SKIDDER | - | CATERPILLAR 3204T | - |
| CATERPILLAR 518 | - | SKIDDER | - | CATERPILLAR 3304 | - |
| CATERPILLAR 518 II | - | SKIDDER | - | - 518 II | - |
| CATERPILLAR 518C | - | FORESTRY EQUIPMENT | - | - 518C | - |
| CATERPILLAR 916 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 920 | - | LOADER WHEELED | 62K3390-11413 | - 920 | - |
| CATERPILLAR 920 | - | LOADER WHEELED | 62K11414 | - 920 | - |
| CATERPILLAR 920 | - | LOADER WHEELED | 62K1-3389 | - 920 | - |
| CATERPILLAR 920 | - | LOADER WHEELED | 75J1 | - 920 | - |
| CATERPILLAR 920 | - | LOADER WHEELED | 62K3394-62K3394 | - 920 | - |
| CATERPILLAR 926 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204T | - |
| CATERPILLAR 926E | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 DIT | - |
| CATERPILLAR 926F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 930 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 930R | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 943 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR AP1000 | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1050 | - | PAVER | AP SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CB434 | - | COMPACTOR | CB SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR CP533 | - | COMPACTOR | CP SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR CP563 | - | COMPACTOR | CP SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR CS563 | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CS573 | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CS583 | - | COMPACTOR | CS SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR D4E | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D4H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D4H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR D4H III | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D4H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR DW10 | - | SCRAPER | - | - DW10 | - |
| CATERPILLAR FB508 | - | FORESTRY EQUIPMENT | - | - FB508 | - |
| CATERPILLAR FB518 | - | FORESTRY EQUIPMENT | - | - FB518 | - |
| CATERPILLAR G916 | - | LOADER WHEELED | G SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT28 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT28B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR V1100 | - | FORKLIFT | - | - V1100 | - |
| CATERPILLAR V1100CTH | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V160B | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V200B | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V225B | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V250B | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V330B | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V550 | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V620 | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V700 | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V800 | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V900 | - | FORKLIFT | - | - V900 | - |
| CATERPILLAR V900CH | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V925 | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| CATERPILLAR V925LH | - | FORKLIFT | - | CATERPILLAR 3208 | - |
| DEUTZ-FAHR DL120 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F6L514F | - |
| DEUTZ-FAHR DL50 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L812 | - |
| DEUTZ-FAHR DL500 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L812 | - |
| DEUTZ-FAHR DL75 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L514F | - |
| DEUTZ-FAHR DL750 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L514F | - |
| DEUTZ-FAHR DR100 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F6L514F | - |
| DEUTZ-FAHR DR120 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F6L514F | - |
| DEUTZ-FAHR DR1250 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F6L514F | - |
| DEUTZ-FAHR DR50 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L812 | - |
| DEUTZ-FAHR DR500 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L812 | - |
| DEUTZ-FAHR DR75 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L514F | - |
| DEUTZ-FAHR DR750 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F4L514F | - |
| DEUTZ-FAHR DRM120 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F6L514F | - |
| DEUTZ-FAHR DRM1250 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ F6L514F | - |
