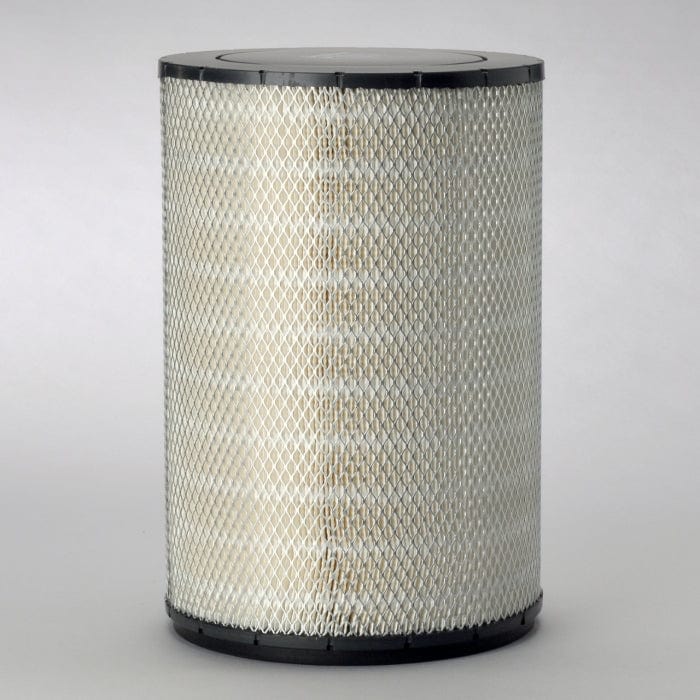

Air Filter, Primary Round - Donaldson P181102
Air Filter, Primary Round - Donaldson P181102
Regular price
£54.46
Regular price
Sale price
£54.46
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181102
Air Filter, Primary Round| Outer Diameter | 11.09 inch (281.7 mm) |
| Inner Diameter | 6.60 inch (167.6 mm) |
| Length | 16.06 inch (407.9 mm) |
| Overall Length | 16.56 inch (420.6 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 281.7 mm (11.09 inch)
- Inner Diameter: 167.6 mm (6.60 inch)
- Length: 407.9 mm (16.06 inch)
- Overall Length: 420.6 mm (16.56 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.315 m (12.60 inch)
- Packaged Height: 0.433 m (17.32 inch)
- Packaged Weight: 3.326 kg (7.33 lb)
- Packaged Volume: 0.045 m3 (1.59 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330025963
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A208C | |
| ALCO | MD352 | |
| AMERICAN MOTORS CORPORATION | AE27200 | |
| AMERICAN MOTORS CORPORATION | 870NA | |
| AMERICAN MOTORS CORPORATION | SFA1102P | |
| AMERICAN PARTS | 305 | |
| AMERICAN PARTS | 93045 | |
| BIG A | 93045 | |
| BIG A | 305 | |
| CAMECO | 60010832 | |
| CATERPILLAR | 9M4798 | |
| CATERPILLAR | 7M9045 | |
| CATERPILLAR | 1S2373 | |
| CATERPILLAR | 151479 | |
| CATERPILLAR | 1S1479 | |
| CATERPILLAR | 8N9458 | |
| CATERPILLAR | 7M4862 | |
| CATERPILLAR | 7S1224 | |
| CATERPILLAR | 7S1778 | |
| CATERPILLAR | 182373 | |
| CATERPILLAR | 3I0848 | |
| CATERPILLAR | 8N6884 | |
| CATERPILLAR | 3S2298 | |
| CATERPILLAR | 8N5911 | |
| CATERPILLAR | 3S1812 | |
| CATERPILLAR | 3S2289 | |
| CATERPILLAR | 8N5316 | |
| CATERPILLAR | 1W3894 | |
| CATERPILLAR | 7W5316 | |
| CATERPILLAR | 9M5511 | |
| CHAMP | LAF45 | |
| CLEAN | MA506 | |
| CONTINENTAL | PCA233 | |
| COOP | AP7M9045 | |
| COOP | PMA7M9045 | |
| COOPERS | L95424 | |
| COOPERS | AZA612 | |
| CROSLAND | 9652 | |
| CUMMINS | 253290 | |
| CYCLONE | PMA7M9045 | |
| DELUXE | 497AIR | |
| DELUXE | 497 | |
| DELUXE | AF497 | |
| EXMAN | AE27200 | |
| EXMAN | 870NA | |
| EXMAN | SFA1102P | |
| FIAAM | FL16202 | |
| FIAAM | FL6202 | |
| FIAAM | FLI6202 | |
| FIL | HP436 | |
| FILT | A2233 | |
| FORD | 9576P181102 | |
| FREIGHTLINER | DNP181102 | |
| FSA | FA3304 | |
| GOULD | AP7M9045 | |
| GPC | FC275 | |
| GUARDIAN | G7M9045 | |
| GUD | L95424 | |
| GUD | ADG651 | |
| HAVAM | HD8402 | |
| IACOVOU | 8N5316 | |
| INDUCONTROL | AR233 | |
| KRALINATOR | LA84 | |
| LOCKHEED | LK3687 | |
| LOESING | 024023 | |
| LOESING | 24023 | |
| MISFAT | 782800 | |
| MISFAT | 0782800 | |
| NELSON | 70258N | |
| NELSON WINSLOW | 4M9045 | |
| NELSON WINSLOW | 7M9045 | |
| NUTECH | T1556 | |
| NUTECH | S1556 | |
| NUTECH | N1555 | |
| NUTECH | N1556 | |
| ORENSTEIN & KOPPEL | 101009 | |
| ORENSTEIN & KOPPEL | 1457879 | |
| P.B.R. | AI3216 | |
| PERRY | PA497 | |
| POSTAS | HF1205 | |
| QUAKER STATE | QSA233 | |
| REFILCO | AF2045 | |
| ROMAN | R9045 | |
| SAVARA | 92303211 | |
| SAVARA | 92303217 | |
| SOPARIS | FDA3111 | |
| STAY READY | SRPAM1116 | |
| STAY READY | SRPA1116 | |
| TECHNOCAR | A538 | |
| TECNO COMP | TM062 | |
| TEHO | IIM203 | |
| TEHO | 2203 | |
| TEREX | 101009 | |
| TRU-AIR | T9045 | |
| TRU-AIR | TA7374 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687608 | |
| UNITED ENGINE LIFE | U7M9045 | |
| VIRGIS | CH12208 | |
| VIRGIS | CH12210 | |
| VMC | AF181102 | |
| WALGAHN-MOTORENTECHN | 00811099 | |
| WALGAHN-MOTORENTECHN | 811099 | |
| WGB | SA133 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 225D | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3208 | - |
| CATERPILLAR 231D | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3208 | - |
| CATERPILLAR 231DLC | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3208 | - |
| CATERPILLAR 235 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 235B | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 235D | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 613C | - | SCRAPER | - | CATERPILLAR 3208 | - |
| CATERPILLAR 613C II | - | SCRAPER | - | CATERPILLAR 3116 | - |
| CATERPILLAR 615C | - | SCRAPER | - | CATERPILLAR 3306 | - |
| CATERPILLAR 627B | - | SCRAPER | - | - 627B | - |
| CATERPILLAR 627E | - | SCRAPER | - | CATERPILLAR 3406 | - |
| CATERPILLAR 627E PS | - | SCRAPER | - | CATERPILLAR 3406 | - |
| CATERPILLAR 627F | - | SCRAPER | - | - 627F | - |
| CATERPILLAR 630B | - | SCRAPER | - | - 630B | - |
| CATERPILLAR 631B | - | SCRAPER | - | - 631B | - |
| CATERPILLAR 632 | - | TRACTOR | - | - 632 | - |
| CATERPILLAR 637D | - | SCRAPER | 600 SERIES | CATERPILLAR 3306, 3408 | - |
| CATERPILLAR 641B | - | SCRAPER | - | - 641B | - |
| CATERPILLAR 650B | - | SCRAPER | - | - 650B | - |
| CATERPILLAR 651B | - | SCRAPER | - | - 651B | - |
| CATERPILLAR 657B | - | SCRAPER | - | CATERPILLAR D343 | - |
| CATERPILLAR 65B | - | TRACTOR | - | CATERPILLAR 3306 | - |
| CATERPILLAR 660B | - | SCRAPER | - | - 660B | - |
| CATERPILLAR 666B | - | SCRAPER | - | - 666B | - |
| CATERPILLAR CHALLENGER 65 | - | TRACTOR | - | - CHALLENGER 65 | - |
| CATERPILLAR CHALLENGER 65B | - | TRACTOR | - | CATERPILLAR 3306TA | - |
| CATERPILLAR D20D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR D250D | - | DUMP TRUCK ARTICULATED | D SERIES | CATERPILLAR 3116 | - |
