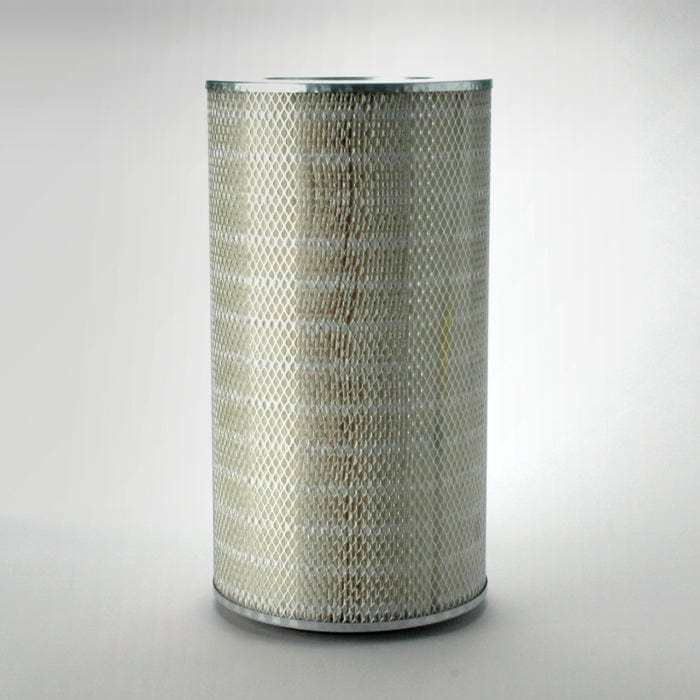

Air Filter, Primary Round - Donaldson P181082
Air Filter, Primary Round - Donaldson P181082
Regular price
£62.70
Regular price
Sale price
£62.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181082
Air Filter, Primary Round| Outer Diameter | 10.86 inch (275.9 mm) |
| Inner Diameter | 6.50 inch (165.1 mm) |
| Length | 20.00 inch (508 mm) |
| Overall Length | 20.50 inch (520.7 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | FTG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 275.9 mm (10.86 inch)
- Inner Diameter: 165.1 mm (6.50 inch)
- Length: 508 mm (20.00 inch)
- Overall Length: 520.7 mm (20.50 inch)
- Bolt Hole Diameter: 22.73 mm (0.89 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: FTG
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.315 m (12.60 inch)
- Packaged Height: 0.532 m (21.26 inch)
- Packaged Weight: 2.900 kg (6.39 lb)
- Packaged Volume: 0.055 m3 (1.95 ft3)
Other Information
- Country of Origin: United Kingdom
- HTS Code: 8421310090
- UPC Code: 742330025802
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A943C | |
| AIRMAN-HOKUETSU | 3214306200 | |
| AIRMAN-HOKUETSU | 3214308200 | |
| AIRMAN-HOKUETSU | 321430820 | |
| ALCOA MARINE | IA394 | |
| AMERICAN MOTORS CORPORATION | IA394 | |
| AMERICAN PARTS | 1579 | |
| AMERICAN PARTS | 93216 | |
| ASAHI | IA394 | |
| ASAHI | A394V | |
| ASAHI | A394A | |
| ASTEC UNDERGROUND | 306245286 | |
| BADGER | LG78798 | |
| BADGER | 78798 | |
| BERGERAT MONNOYEUR | E2326 | |
| BIG A | 93216 | |
| BIG A | 1579 | |
| BLOUNT | 8612041 | |
| BLOUNT | 811999600 | |
| CASE/CASE IH | 150783A1 | |
| CATERPILLAR | 811999600 | |
| CATERPILLAR | 3I0832 | |
| CATERPILLAR | 7Y1323H | |
| CATERPILLAR | 7Y1323 | |
| CHAMPION ROAD | 37398 | |
| CLARK | M1991852 | |
| CLEVELAND | 37398 | |
| COOPERS | AEM2038 | |
| DONGFENG | 110900135 | Also Order P138722 Safety Filter |
| FREIGHTLINER | DNP181082 | |
| GIF | GA861 | |
| GPC | FC974 | |
| GUARDIAN | G124045 | |
| HAVAM | HD8563 | |
| HIGHPOWEREQUIPMENT | AF975M | |
| HINO | 178012150 | |
| HINO | 178010015A | |
| HITACHI | 71473480 | |
| HITACHI | CPH0413 | |
| HITACHI | AT280665 | |
| HITACHI | 4391205 | |
| HITACHI | 1991852 | |
| HYUNDAI | 11L12003 | |
| INGERSOLL RAND | 35384619 | |
| ISUZU | 1142151841 | |
| ISUZU | 1142151840 | |
| ISUZU | 1142150580 | |
| ISUZU | 1142151020 | |
| ISUZU | 1142150580 | |
| ISUZU | 114215P580 | |
| ISUZU | 1142151020 | |
| ISUZU | 14215058 | |
| JCB | JSH0022 | |
| JCB | KTH0284 | |
| JOHN DEERE | AT280665 | |
| JOHN DEERE | 4391205 | |
| KAWASAKI | 3098170510 | |
| KAWASAKI | 3098170510 | |
| KAWASAKI | ZZYYP181082 | |
| KOMATSU | 42101A1720 | |
| KRALINATOR | LA843 | |
| LIEBHERR | 550916214 | |
| LINK BELT | KTH0284 | |
| LINK BELT | 3H2229 | |
| LOESING | 21697 | |
| LOESING | 021697 | |
| MACK | 25043732 | |
| MACK | 57MD47 | |
| MITSUBISHI | 2446U250S3 | |
| MITSUBISHI | 4722039800 | |
| MITSUBISHI | ME058741 | |
| MITSUBISHI | 4722042900 | |
| MITSUBISHI | 4722039802 | |
| MITSUBISHI | 4722039802 | |
| MORBARK | 2921105 | |
| MORBARK | 29321105 | |
| NELSON | 84703S | |
| NEW HOLLAND | 84223225 | |
| NISSAN/UD TRUCKS | 1654696064 | |
| NISSAN/UD TRUCKS | 1654696064 | |
| NISSAN/UD TRUCKS | 1654696064LND | |
| REFILCO | AF2216 | |
| SAMSUNG | 16546A0010 | |
| SDMO | 330560524 | |
| SUMITOMO | KTH0284 | |
| SUMITOMO | KTH0284 | |
| SUMITOMO | KHT0284 | |
| SUMITOMO | JSH0022 | |
| TADANO | 34780927510 | |
| TADANO | 34780927510 | |
| TADANO | 34780547510 | |
| TATA | CE30002 | |
| TIM | 7Y1323 | |
| UNION CITY BODY | A751 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687584 | |
| VMC | AF181082 | |
| VOLVO | M1991852 | |
| VOLVO | 37398 | |
| VOLVO | 821006330 | |
| WALGAHN-MOTORENTECHN | 811088 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 9033 | - | EXCAVATOR TRACKED | 9000 SERIES | MITSUBISHI 6D24-TE1 | - |
| CASE/CASE IH 9040 | - | EXCAVATOR | - | - 9040 | - |
| CASE/CASE IH 9040B | - | EXCAVATOR TRACKED | 9000 SERIES | - 9040B | - |
| CASE/CASE IH 9060 | - | EXCAVATOR TRACKED | 9000 SERIES | - 9060 | - |
| CASE/CASE IH 9060B | - | EXCAVATOR TRACKED | 9000 SERIES | - 9060B | - |
| CATERPILLAR 330 | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330CFP | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3304B | - |
| CATERPILLAR 330L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 330LN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3306TA | - |
| CHAMPION ROAD 740 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 740A | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 750 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 750A | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 780 | - | GRADER | - | CUMMINS LT10 | - |
| CHAMPION ROAD 780A | - | GRADER | - | CUMMINS LT10 | - |
| CLARK 125C | - | LOADER WHEELED | 100 SERIES | - 125C | - |
| DONGFENG CWB536HMZ | - | TRUCK | - | NISSAN RG8 | - |
| HITACHI EX300-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1 | - |
| HITACHI EX300-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI EX330-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI EX350H-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1 | - |
| HITACHI EX370-5 | - | EXCAVATOR TRACKED | - | ISUZU 6SD1T | - |
| HITACHI SCX2500 | - | CRANE TRACKED | - | MITSUBISHI 6D24T | - |
| HYUNDAI HL35 | - | LOADER WHEELED | HL SERIES | CUMMINS LTA10 | - |
| HYUNDAI HL760-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSB5.9 | - |
| HYUNDAI HL760-7A | - | LOADER WHEELED | HL SERIES | CUMMINS QSB6.7 | - |
| HYUNDAI R450LC-3 | - | EXCAVATOR TRACKED | ROBEX | CUMMINS M11 | - |
| ISUZU CXK | - | TRUCK | - | ISUZU 8PC1.10 | - |
| ISUZU CXW | - | TRUCK | - | ISUZU 8PC110 | - |
| ISUZU CXZ | - | TRUCK | - | ISUZU 8PC1.10 | - |
| ISUZU CXZ 15.0 | - | TRUCK | - | ISUZU 10PD1 | - |
| ISUZU CXZ 15.0 | - | TRUCK | - | ISUZU 10PC1 | - |
| ISUZU SLR400 | - | TRUCK | - | ISUZU 10PB1 | - |
| JCB JS300 | - | EXCAVATOR | - | - JS300 | - |
| JCB JS330 | - | EXCAVATOR | - | ISUZU 6SDIT | - |
| JCB JS450 | - | EXCAVATOR | - | - JS450 | - |
| JOHN DEERE 608L | - | FELLER BUNCHER | - | - 608L | - |
| JOHN DEERE 744E | - | LOADER WHEELED | - | JOHN DEERE 6101AT | - |
| JOHN DEERE 753G | - | FELLER BUNCHER | 700 SERIES | CUMMINS 6CTA8.3 | - |
| JOHN DEERE 753GL | - | FELLER BUNCHER | 700 SERIES | CUMMINS 6CTA8.3 | - |
| JOHN DEERE 850 | - | FELLER BUNCHER | - | JOHN DEERE 6081 | - |
| JOHN DEERE 853G | - | FELLER BUNCHER | - | JOHN DEERE 6081 | - |
| JOHN DEERE 853G | - | FELLER BUNCHER | - | JOHN DEERE 6081 | - |
| JOHN DEERE 853G | - | FELLER BUNCHER | - | - 853G | - |
| JOHN DEERE 953G | - | FELLER BUNCHER | - | - 953G | - |
| KAWASAKI 90 ZIII | - | LOADER WHEELED | - | - 90 ZIII | - |
| KOBELCO LK850-2 | - | LOADER WHEELED | - | - LK850-2 | - |
| KOMATSU WA450-3L | - | LOADER WHEELED | WA SERIES | - WA450-3L | - |
| LINK BELT 4300Q | - | EXCAVATOR TRACKED | - | - 4300Q | - |
| LINK BELT LS4300CII | - | EXCAVATOR TRACKED | - | - LS4300CII | - |
| MACK MR690P | - | TRUCK | - | MACK ASET AMI | - |
| MACK TERRAPRO | 2007 - 2012/2013 - | TRUCK | - | MACK MP7 | - |
| MITSUBISHI MG530 | - | GRADER | - | - MG530 | - |
| NISSAN CKB533 | - | TRUCK | - | NISSAN RG8 | - |
