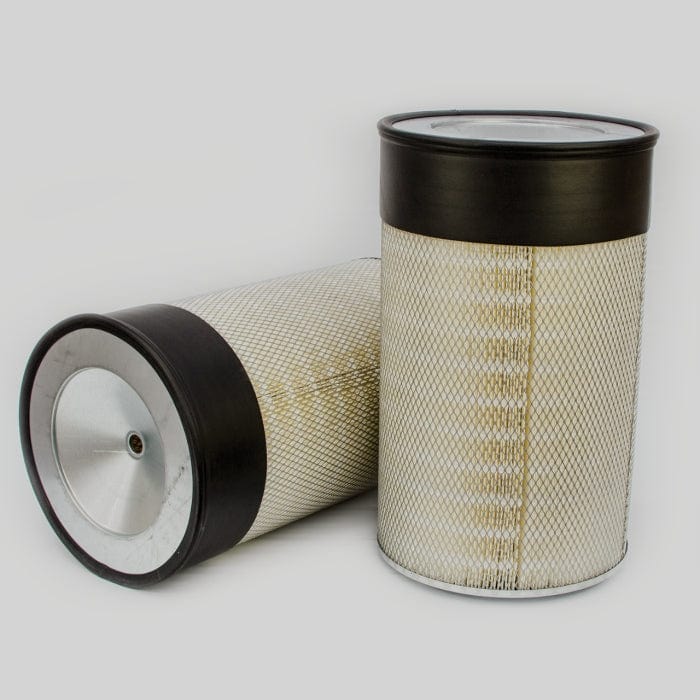

Air Filter, Primary Round - Donaldson P181043
Air Filter, Primary Round - Donaldson P181043
Regular price
£119.86
Regular price
Sale price
£119.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181043
Air Filter, Primary Round| Outer Diameter | 12.09 inch (307.2 mm) |
| Inner Diameter | 7.72 inch (196.1 mm) |
| Length | 20.00 inch (508 mm) |
| Overall Length | 20.50 inch (520.7 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | FVG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 196.1 mm (7.72 inch)
- Length: 508 mm (20.00 inch)
- Overall Length: 520.7 mm (20.50 inch)
- Bolt Hole Diameter: 22.73 mm (0.89 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: FVG
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.333 m (13.30 inch)
- Packaged Width: 0.328 m (13.10 inch)
- Packaged Height: 0.583 m (23.30 inch)
- Packaged Weight: 4.165 kg (9.18 lb)
- Packaged Volume: 0.066 m3 (2.35 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-03
- HTS Code: 8421310090
- UPC Code: 742330025444
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1125C | |
| AMERICAN PARTS | 93493 | |
| AMERICAN PARTS | 1196 | |
| AMERICAN PARTS | 1487 | |
| ASTEC UNDERGROUND | 20000109 | |
| BARBER-GREENE | 20X97 | |
| BIG A | 1487 | |
| BIG A | 94756 | |
| BIG A | 93493 | |
| BIG A | 1196 | |
| BMW | 20X97 | |
| BOMAG | 05730121 | |
| BOMAG | 5730121 | |
| CARBOCOL | 9052907 | |
| CASE/CASE IH | 590000C2 | |
| CASE/CASE IH | 590000C1 | |
| CATERPILLAR | 9Y6837 | |
| CATERPILLAR | 3I0796 | |
| CATERPILLAR | 3I0958 | |
| CEDARAPIDS | 459300016504 | |
| CMI | P1020953030 | |
| CONTINENTAL | PCA2541 | |
| COOPERS | AEM2052 | |
| DRESSER | 590000C1 | |
| EATON | 6960003 | |
| EUCLID | 9013550 | |
| FAMEL | FR1027 | |
| FIL | HP741 | |
| FMC | 3H1095 | |
| FREIGHTLINER | DNP181043 | |
| FURUKAWA | 590000C1 | |
| GPC | FC651 | |
| GUARDIAN | G270336 | |
| GUARDIAN | G124861 | |
| HAVAM | HD7649 | |
| HAVAM | HD8905 | |
| INGERSOLL RAND | 35355395 | |
| INTERNATIONAL | 590000C2 | |
| INTERNATIONAL | 590000C1 | |
| JOHN CLARK INC. | 391081142 | |
| JOHN DEERE | DQ43482 | |
| JOY | 360628329 | |
| KNECHT | LX29 | |
| KOEHRING | 05730121 | |
| KRALINATOR | LA855 | |
| LINK BELT | 3H1095 | |
| LOESING | 021669 | |
| LOESING | 21669 | |
| MORBARK | 29321372 | |
| NELSON | 70091N | |
| NELSON | 124861 | |
| NELSON WINSLOW | 124861 | |
| NUTECH | N1788 | |
| NUTECH | S1788 | |
| OSHKOSH | 1DX178 | |
| PREVOST CAR | 19502418 | |
| REFILCO | AF2493 | |
| REXNORD | 1020953030 | |
| SULLAIR | P124861 | |
| TEREX | 9052907 | |
| TEREX | 1020953030 | |
| TEREX | 9059565 | |
| TEREX | 9059515 | |
| TEREX | 09059565 | |
| TROJAN | 6960003 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687492 | |
| UNITED ENGINE LIFE | 250D35 | |
| UNITED ENGINE LIFE | 250D35S | |
| UNITED ENGINE LIFE | 250D35B | |
| VMC | AF181043 | |
| VMC | AH181043 | |
| WALGAHN-MOTORENTECHN | 811060 | |
| YALE | 6960003 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| INGERSOLL RAND CM695D | - | DRILLING EQUIPMENT | - | - CM695D | - |
| INGERSOLL RAND ECM490 | - | DRILLING EQUIPMENT | - | - ECM490 | - |
| INGERSOLL RAND ECM680 | - | DRILLING EQUIPMENT | - | CUMMINS 6CT8.3 | - |
| INGERSOLL RAND ECM690 | - | DRILLING EQUIPMENT | - | CATERPILLAR 3306 | - |
| INGERSOLL RAND XHP650WCAT | - | COMPRESSOR | - | CATERPILLAR 3306TA | - |
| INGERSOLL RAND XP1000WCAT | - | COMPRESSOR | - | CATERPILLAR 3306TA | - |
| JOY D275QP | - | COMPRESSOR | - | JOHN DEERE 4276T | - |
| SULLAIR 750D | - | COMPRESSOR | - | DETROIT DIESEL - | - |
| TEREX 72-31 | - | LOADER | - | - 72-31 | - |
