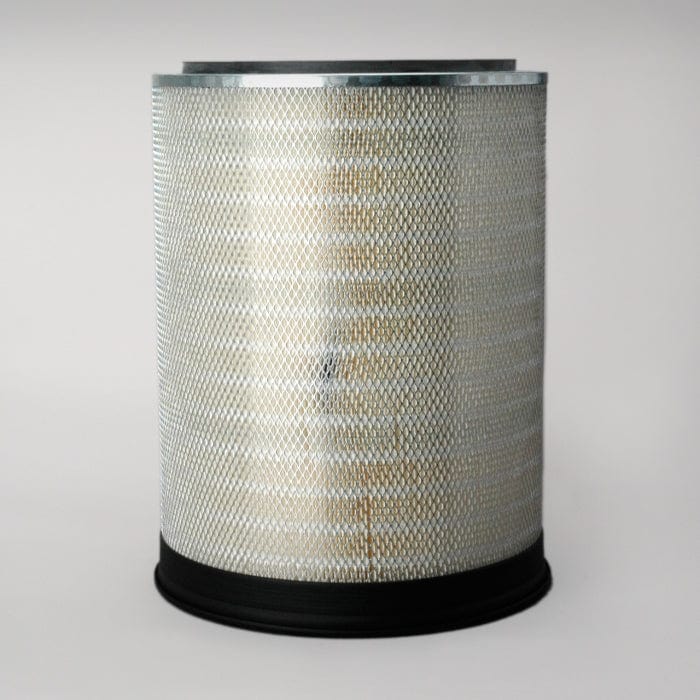

Air Filter, Primary Round - Donaldson P181040
Air Filter, Primary Round - Donaldson P181040
Regular price
£172.12
Regular price
Sale price
£172.12
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181040
Air Filter, Primary Round| Outer Diameter | 17.58 inch (446.5 mm) |
| Inner Diameter | 12.22 inch (310.3 mm) |
| Length | 23.06 inch (585.7 mm) |
| Overall Length | 23.56 inch (598.4 mm) |
| Bolt Hole Diameter | 0.89 inch (22.73 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | SRG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 446.5 mm (17.58 inch)
- Inner Diameter: 310.3 mm (12.22 inch)
- Length: 585.7 mm (23.06 inch)
- Overall Length: 598.4 mm (23.56 inch)
- Bolt Hole Diameter: 22.73 mm (0.89 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: SRG
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.473 m (18.90 inch)
- Packaged Width: 0.473 m (18.90 inch)
- Packaged Height: 0.601 m (24.02 inch)
- Packaged Weight: 8.500 kg (18.74 lb)
- Packaged Volume: 0.139 m3 (4.96 ft3)
Other Information
- Country of Origin: United Kingdom
- HTS Code: 8421310090
- UPC Code: 742330025413
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | AP3520A | |
| AC DELCO | A901C | |
| AMERICAN PARTS | 1150 | |
| AMERICAN PARTS | 93238 | |
| ASTEC UNDERGROUND | 21000263 | |
| BERGERAT MONNOYEUR | E2305 | |
| BIG A | 1150 | |
| BIG A | 93238 | |
| CARBOCOL | PA2453 | |
| CASE/CASE IH | F1050507 | |
| CASE/CASE IH | 150507 | |
| CASE/CASE IH | F150507 | |
| CASE/CASE IH | F1010507 | |
| CASE/CASE IH | P1050507 | |
| CASE/CASE IH | E1250566 | |
| CASE/CASE IH | E1010507 | |
| CASE/CASE IH | 1050507 | |
| CATERPILLAR | 1W3637 | |
| CATERPILLAR | CV21183 | |
| CATERPILLAR | 3I0793 | |
| CHARDONNET | 7218104000 | |
| COMPAIR | 9826250710001 | |
| CONTINENTAL | PCA1570 | |
| COOPERS | AEM2022 | |
| COOPERS | AZA514 | |
| CYCLONE | PMA117782 | |
| DART | SMP181040 | |
| DART | 401PPP117782 | |
| DELUXE | 684AIR | |
| DELUXE | 684 | |
| DELUXE | AF684 | |
| DRILTECH | 00103661 | |
| DRILTECH | 001036 | |
| EUCLID | 4022651 | |
| EUCLID | 9038350 | |
| EUCLID | 9059562 | |
| FAUN | 0746713 | |
| FAUN | 746713 | |
| GUARDIAN | G117782 | |
| GUASCOR | 7650214 | |
| HAVAM | HD6820 | |
| INDUCONTROL | AR1570 | |
| INGERSOLL RAND | 35356153 | |
| KENWORTH | 3040653 | |
| KENWORTH | 3040654 | |
| KENWORTH | 401PPP117782 | |
| KENWORTH | 3040616 | |
| KENWORTH | 3040644 | |
| KENWORTH | 3040615 | |
| KENWORTH | 3040648 | |
| KNECHT | AG155 | |
| KOMATSU | 5810212120 | |
| KRALINATOR | LA574 | |
| LETOURNEAU | VA0010 | |
| LETOURNEAU | PB2101 | |
| LETOURNEAU | PB1569 | |
| LETOURNEAU | PB1400 | |
| LIEBHERR | 130110 | |
| LIEBHERR | 13011E1 | |
| LINDENBERG-ANLAGEN | MDONP182040 | |
| LOCKHEED | LK3520 | |
| LOCKHEED | AP3520 | |
| LOCKHEED | AP3520A | |
| LOESING | 20897 | |
| LOESING | 22007 | |
| LOESING | 020897 | |
| MCCORMICK | P1050507 | |
| MCCORMICK | F1050507 | |
| MCCORMICK | F150507 | |
| MCCORMICK | 1050507 | |
| MTU | 8690940013 | |
| NELSON | 70125N | |
| NELSON | 117782 | |
| NELSON WINSLOW | 117782 | |
| NEW HOLLAND | F1050507 | |
| NUTECH | N2787 | |
| NUTECH | S2787 | |
| ORENSTEIN & KOPPEL | 101094 | |
| ORENSTEIN & KOPPEL | 8406371 | |
| ORENSTEIN & KOPPEL | B406371 | |
| PERKINS | CV21183 | |
| POSTAS | HF1410 | |
| REFILCO | AF2238 | |
| SDMO | 330570136 | |
| TEREX | F1010507 | |
| TEREX | F1050507 | |
| TEREX | 9038350 | |
| TEREX | 9059562 | |
| TEREX | 09059562 | |
| TEREX | 9059512 | |
| TIM | 1W3637 | |
| UNIT RIG EQUIPMENT | 901619 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687480 | |
| UNITED ENGINE LIFE | U17782 | |
| VMC | AF181040 | |
| WABCO | VJ0075 | |
| WABCO | VJ5175 | |
| WABCO | 7001329 | |
| WABCO | PB1569 | |
| WABCO | PB2101 | |
| WABCO | PB1400 | |
| WALGAHN-MOTORENTECHN | 811141 | |
| WALGAHN-MOTORENTECHN | 811057 | |
| WIRTGEN | 95383 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 1000CA | - | EXCAVATOR | - | DEUTZ BF12L413F | - |
| CASE/CASE IH 300CK | - | EXCAVATOR | - | DEUTZ F12L413 | - |
| CASE/CASE IH 300CL | - | EXCAVATOR TRACKED | - | DEUTZ F12L413 | - |
| CASE/CASE IH 350CK | - | EXCAVATOR | - | DEUTZ F12L413 | - |
| CASE/CASE IH B SERIES | - | EXCAVATOR | - | DEUTZ F12L413 | - |
| CATERPILLAR 3524B | - | ENGINE | - | - 3524B | - |
| EUCLID R100 | - | HAUL TRUCK | - | DETROIT DIESEL 12V-149 | - |
| EUCLID R100 | - | HAUL TRUCK | - | - R100 | - |
| KOMATSU 830E | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| KOMATSU HD1200M-1 | - | HAUL TRUCK | - | CUMMINS KTA2300 | - |
| KOMATSU HD1600M-1 | - | DUMP TRUCK | - | CUMMINS KTA3067 | - |
| LIEBHERR R984B | - | EXCAVATOR TRACKED | R SERIES | CUMMINS KTTA19 | - |
| LIEBHERR R984C | - | EXCAVATOR TRACKED | R SERIES | CUMMINS QSK19 | - |
| POCLAIN 1000 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ BF12L413 | - |
| POCLAIN 1000EC | - | CONSTRUCTION EQUIPMENT | - | DEUTZ BF12L413 | - |
| POCLAIN 300 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ BF12L413 | - |
| POCLAIN 610 | - | CONSTRUCTION EQUIPMENT | - | DEUTZ BF12L413 | - |
| TEREX 33-09 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-71 | - |
| TEREX 33-09AA | - | HAUL TRUCK | - | - 33-09AA | - |
| WIRTGEN W 2200 | 2010 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C27 ATAAC | - |
| WIRTGEN WR 2400 | 2005 | ROAD STABILIZER | WR SERIES | MERCEDES-BENZ OM 502 LA AG3 | - |
| ZETTELMEYER 1000 | - | CONSTRUCTION EQUIPMENT | - | - 1000 | - |
