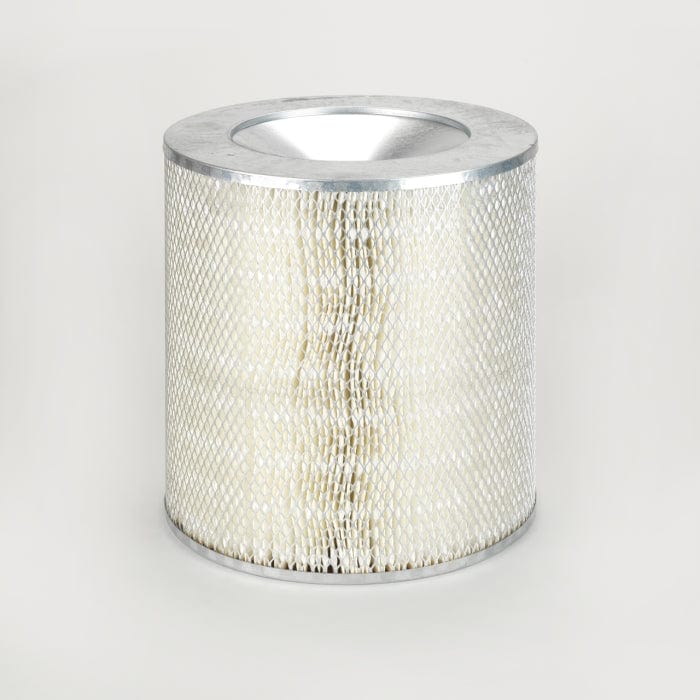

Air Filter, Primary Round - Donaldson P181037
Air Filter, Primary Round - Donaldson P181037
Regular price
£72.74
Regular price
Sale price
£72.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181037
Air Filter, Primary Round| Outer Diameter | 12.09 inch (307.2 mm) |
| Inner Diameter | 7.72 inch (196.1 mm) |
| Length | 13.00 inch (330.2 mm) |
| Bolt Hole Diameter | 0.53 inch (13.5 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | SBG |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 196.1 mm (7.72 inch)
- Length: 330.2 mm (13.00 inch)
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.313 m (12.50 inch)
- Packaged Height: 0.360 m (14.40 inch)
- Packaged Weight: 3.028 kg (6.67 lb)
- Packaged Volume: 0.037 m3 (1.31 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-03
- HTS Code: 8421310090
- UPC Code: 742330025383
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A292C | |
| AC DELCO | A292CL | |
| AEC WHITLOCK | 11082 | |
| AGCO | 74055092 | |
| ALLIS-CHALMERS | 405092 | |
| ALLIS-CHALMERS | 04055092 | |
| ALLIS-CHALMERS | 40590922 | |
| ALLIS-CHALMERS | 4059092 | |
| ALLIS-CHALMERS | 40008751 | |
| ALLIS-CHALMERS | 43864853 | |
| ALLIS-CHALMERS | 4386485 | |
| ALLIS-CHALMERS | 40550926 | |
| ALLIS-CHALMERS | 4055092 | |
| AMERICAN PARTS | 93760 | |
| AMERICAN PARTS | 993 | |
| AMERICAN PARTS | 311 | |
| AMERICAN PARTS | 1087 | |
| AUTOCAR | 888603 | |
| BIG A | 93760 | |
| BIG A | 993 | |
| BIG A | 1087 | |
| BIG A | 311 | |
| CASE/CASE IH | 326287C91 | |
| CASE/CASE IH | 2R0326 | |
| CASE/CASE IH | J1127 | |
| CATERPILLAR | 9Y7809 | |
| CATERPILLAR | 5B345 | |
| CATERPILLAR | 5B0345 | |
| CATERPILLAR | 4S7792 | |
| CATERPILLAR | OJ1127 | |
| CATERPILLAR | 1Z2280 | |
| CATERPILLAR | 2R335 | |
| CATERPILLAR | 2R0326 | |
| CATERPILLAR | 2R0335 | |
| CATERPILLAR | 3I0790 | |
| CHAMP | AF760A | |
| CHICAGO PNEUMATIC | 155PS2644 | |
| CHICAGO PNEUMATIC | P2034 | |
| CHICAGO PNEUMATIC | P203467 | |
| CHICAGO PNEUMATIC | P203455 | |
| CHICAGO PNEUMATIC | P2222 | |
| CHICAGO PNEUMATIC | 18PS2644 | |
| CHICAGO PNEUMATIC | 52541211 | |
| CHICAGO PNEUMATIC | 55P2054 | |
| CHICAGO PNEUMATIC | 55P2034 | |
| CHICAGO PNEUMATIC | 55PS2054 | |
| CHICAGO PNEUMATIC | 6PS2649 | |
| CHICAGO PNEUMATIC | 000P2222 | |
| CLAAS | 3564006 | |
| CLAAS | 3564133 | |
| CLARK | 1550810 | |
| CLARK | 1566715 | |
| CLARK | 1572408 | |
| CLARK,J.L. | 1572408 | |
| COOPERS | AEM2158 | |
| CROSLAND | 823 | |
| CUMMINS | 151608 | |
| CUMMINS | 150785 | |
| CUMMINS | 153616 | |
| CUMMINS | 896120 | |
| CUMMINS | 299347 | |
| CYCLONE | PMA101760 | |
| DART | 304284 | |
| DART | 304281 | |
| DART | 304347 | |
| DART | SMP181037 | |
| DAVEY COMPRESSOR | 61427 | |
| DELUXE | 547AIR | |
| DELUXE | AFK547 | |
| DELUXE | AF547 | |
| DELUXE | K547AIR | |
| DELUXE | K547 | |
| DEUTZ | 74055092 | |
| DIAMOND REO | 3547H2 | |
| DIAMOND REO | 3563H2 | |
| DIAMOND REO | 3457H2 | |
| DIAMOND T | 3457H2 | |
| DIAMOND T | 3563H2 | |
| DRESSER | 326287C91 | |
| DRESSER | 879407C91 | |
| EATON | 2950181 | |
| EATON | 2046330 | |
| EATON | 6950181 | |
| EATON | 2058373 | |
| EUCLID | 9030713 | |
| EUCLID | 9223648 | |
| EUCLID | 9031713 | |
| EUCLID | 9031714 | |
| EUCLID | 9038904 | |
| FIAT | 4386485 | |
| FIAT | 40008751 | |
| FIAT | 74055092 | |
| FIAT | 4055092 | |
| FIAT | 74059092 | |
| FIAT | 74386485 | |
| FIAT | 4059092 | |
| FILT | A2345 | |
| FURUKAWA | 879407C91 | |
| FURUKAWA | 326287C91 | |
| FWD | 10175538 | |
| FWD | 10175568 | |
| FWD | 1015538 | |
| GARDNER DENVER | 5B363 | |
| GARDNER DENVER | P101760 | |
| GARDNER DENVER | 5B345 | |
| GOULD | AP101760 | |
| GPC | FC288 | |
| GRIMMER SCHMIDT | 912916A | |
| GUARDIAN | G117810 | |
| HAVAM | HD8895 | |
| HAVAM | HD6896 | |
| HITACHI | 74055092 | |
| HITACHI | 4055092 | |
| HITACHI | 74059092 | |
| HOUGH | 326287C91 | |
| HOUGH | 879407C91 | |
| HURRICANE COMPRESSOR | 30140 | |
| HYSTER | 179954 | |
| INTERNATIONAL | 636805C91 | |
| INTERNATIONAL | 765212C91 | |
| INTERNATIONAL | 326287C91 | |
| INTERNATIONAL | 879407C91 | |
| IVECO | 3564006 | |
| IVECO | 3564133 | |
| KENWORTH | 9139701 | |
| KENWORTH | 304385 | |
| KENWORTH | 304347 | |
| KENWORTH | 304284 | |
| KENWORTH | 304281 | |
| KENWORTH | 461718 | |
| KENWORTH | 462045 | |
| KENWORTH | 462033 | |
| KENWORTH | 461396 | |
| KRALINATOR | LA115 | |
| LEROI | 43476 | |
| LETOURNEAU | JG3136 | |
| LETOURNEAU | CL1626 | |
| LETOURNEAU | CL1625 | |
| MACK | 2MD19328 | |
| MACK | 2MD419P1 | |
| MACK | 2MD419 | |
| MACK | 2MD419P2 | |
| MACK | 2191P101760 | |
| MACK | 2191P1760 | |
| MACK | 2191P181037 | |
| MASSEY FERGUSON | 1093100M91 | |
| MICHIGAN | 1564645 | |
| NELSON | 70139N | |
| NELSON | 101760 | |
| NELSON WINSLOW | 101760 | |
| ORENSTEIN & KOPPEL | 101017 | |
| OSHKOSH | 10068G93 | |
| OSHKOSH | 10068G3 | |
| OSHKOSH | 1DX54 | |
| P & H | 46Z148 | |
| P & H | 1046Z172 | |
| PACCAR | 304385 | |
| PACCAR | 304284 | |
| PACCAR | 462033 | |
| PERLINI | G010004176 | |
| PERLINI | 10004176 | |
| PERLINI | 010004176 | |
| PERRY | PAK547 | |
| PERRY | PA547 | |
| PETTIBONE | A2318049 | |
| PETTIBONE | LA9812 | |
| PRO MATCH | 9Y7809 | |
| QUAKER STATE | QSA274 | |
| REFILCO | AF2760 | |
| RENAULT VI | 3564006 | |
| RENAULT VI | 3564133 | |
| REXNORD | 102950413 | |
| SAVARA | 92294511 | |
| SAVARA | 92294517 | |
| SICARD | 461396 | |
| SICARD | 304284 | |
| SICARD | 461718 | |
| SICARD | 462045 | |
| SICARD | 462033 | |
| SICARD | 9139701 | |
| STAY READY | SRPA101760 | |
| SULLAIR | 46427 | |
| SULLAIR | 44808 | |
| SULLAIR | 046427 | |
| TEREX | 09059559 | |
| TEREX | 9059559 | |
| TEREX | 9038904 | |
| TEREX | 102950413 | |
| TEREX | 09038904 | |
| TEREX | 9031713 | |
| TIM | 4S7792 | |
| TIM | 6L2610 | |
| TIM | 2R0326 | |
| TIM | 2R0335 | |
| TIM | 1Z2280 | |
| TIM | 5B0345 | |
| TROJAN | 695018100 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687468 | |
| UNITED ENGINE LIFE | U01760 | |
| VOLVO | 220055088 | |
| WABCO | C11625 | |
| WABCO | CL1625 | |
| WABCO | CL1626 | |
| WABCO | VS2598 | |
| WABCO | JG3136 | |
| WABCO | KC4512 | |
| WALGAHN-MOTORENTECHN | 811054 | |
| WAUKESHA | 01067104 | |
| WAUKESHA | 0167104 | |
| WAUKESHA | 270661 | |
| WAUKESHA | 167104 | |
| WAUKESHA | 167103 | |
| WGB | SA247 | |
| WGB | SA248 | |
| WGB | SA116 | |
| WHITE | 3547H2 | |
| WHITE | 3563H2 | |
| WHITE | 3463H2 | |
| WHITE | 3457H2 | |
| WHITE | 49039440 | |
| WHITE | H005339 | |
| WHITE | 737853 | |
| WHITE | 737852 | |
| WHITE | A005339 | |
| WHITE | 888903 | |
| WHITE | 888603 | |
| WHITE | 6DAC0330 | |
| WORTHINGTON | ELM38 | |
| WORTHINGTON | CLE369 | |
| WORTHINGTON | CLE360 | |
| YALE | 360429R91 | |
| YALE | 6950181 | |
| YALE | 2950181 | |
| YALE | 2046330 | |
| YALE | 2058373 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| GARDNER DENVER SP600DB | - | COMPRESSOR | - | - SP600DB | - |
| MACK RM6866RS | - | TRUCK | - | - RM6866RS | - |
