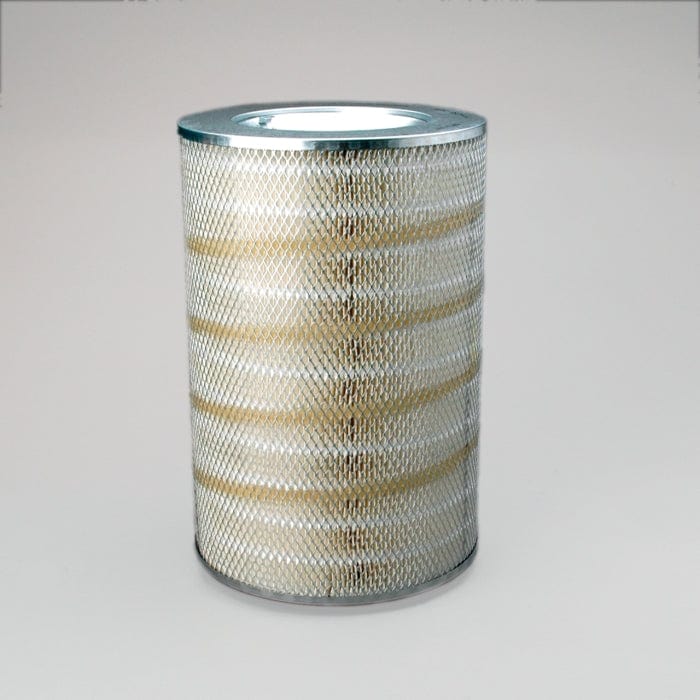

Air Filter, Primary Round - Donaldson P181015
Air Filter, Primary Round - Donaldson P181015
Regular price
£84.26
Regular price
Sale price
£84.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P181015
Air Filter, Primary Round| Outer Diameter | 12.09 inch (307.2 mm) |
| Inner Diameter | 7.72 inch (196.2 mm) |
| Length | 18.00 inch (457.2 mm) |
| Overall Length | 18.50 inch (469.9 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Family | EBB |
| Primary Application | CASE/CASE IH 476743C1 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 196.2 mm (7.72 inch)
- Length: 457.2 mm (18.00 inch)
- Overall Length: 469.9 mm (18.50 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Family: EBB
- Primary Application: CASE/CASE IH 476743C1
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.315 m (12.60 inch)
- Packaged Width: 0.310 m (12.40 inch)
- Packaged Height: 0.485 m (19.40 inch)
- Packaged Weight: 3.841 kg (8.46 lb)
- Packaged Volume: 0.049 m3 (1.75 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330025215
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A784C | |
| AMERICAN MOTORS CORPORATION | SFA1015P | |
| AMERICAN PARTS | 93491 | |
| AMERICAN PARTS | 1377 | |
| AV TECHNOLOGY | 800282 | |
| BIG A | 1377 | |
| BIG A | 93491 | |
| CASE/CASE IH | 476743C1 | |
| CASE/CASE IH | 1674320C2 | |
| CATERPILLAR | 3I0773 | |
| CATERPILLAR | 7C8324 | |
| CHICAGO PNEUMATIC | 25PS269 | |
| CONTINENTAL | PCA1599 | |
| DART | PPP181015 | |
| DART | SMP181015 | |
| DONSSON | DA2270 | |
| DRESSER | 470186C91 | |
| EXMAN | SFA1015P | |
| FORD | 9576P181015 | |
| FREIGHTLINER | DNP181015 | |
| FURUKAWA | 470186C91 | |
| GILLIG | 8223618000 | |
| GUARDIAN | G129544 | |
| HOBART | 181238 | |
| HURRICANE COMPRESSOR | 6239401 | |
| INDUCONTROL | AR1599 | |
| INTERNATIONAL | 478743C1 | |
| INTERNATIONAL | 476743C1 | |
| INTERNATIONAL | 476473C1 | |
| INTERNATIONAL | 470186C91 | |
| INTERNATIONAL | 1674320C1 | |
| INTERNATIONAL | 1674320C2 | |
| INTERNATIONAL | 470186C91H | |
| IRKARUS | NPN06282 | |
| IRKARUS | 436021530700 | |
| KRALINATOR | LA881 | |
| MACK | 2191P181015 | |
| NABI BUS | 436021530700 | |
| NABI BUS | 5011590 | |
| NELSON | 84709S | |
| NELSON | 70143N | |
| NELSON | 129544 | |
| NELSON WINSLOW | 129544 | |
| NEOPART | DONP181015 | |
| NUTECH | N1752 | |
| NUTECH | S1752 | |
| PREVOST CAR | 19500490 | |
| PRO MATCH | 7C8324 | |
| REFILCO | AF2491 | |
| STEWART & STEVENSON | 44381 | |
| STEWART & STEVENSON | 196160 | |
| TIM | 7C8324 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687424 | |
| UNITED ENGINE LIFE | 250CX470 | |
| UNIVERSAL COACH PARTS | 87088900151 | |
| VMC | AF181015 | |
| VOLVO | 3131431 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| INTERNATIONAL 8100 SERIES | - | TRUCK | - | CATERPILLAR 3176 | - |
