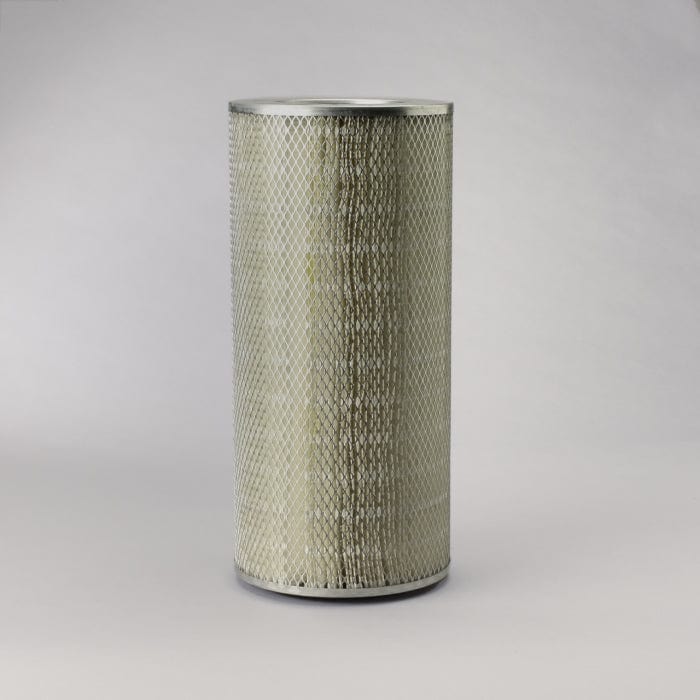

Air Filter, Primary Round - Donaldson P145756
Air Filter, Primary Round - Donaldson P145756
Regular price
£59.32
Regular price
Sale price
£59.32
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P145756
Air Filter, Primary Round| Outer Diameter | 9.09 inch (230.89 mm) |
| Inner Diameter | 5.23 inch (132.84 mm) |
| Length | 19.38 inch (492.25 mm) |
| Overall Length | 19.76 inch (501.9 mm) |
| Bolt Hole Diameter | 0.39 inch (9.93 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Primary Application | JOHN DEERE AR80652 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 230.89 mm (9.09 inch)
- Inner Diameter: 132.84 mm (5.23 inch)
- Length: 492.25 mm (19.38 inch)
- Overall Length: 501.9 mm (19.76 inch)
- Bolt Hole Diameter: 9.93 mm (0.39 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: JOHN DEERE AR80652
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.245 m (9.80 inch)
- Packaged Width: 0.248 m (9.90 inch)
- Packaged Height: 0.520 m (20.80 inch)
- Packaged Weight: 2.688 kg (5.92 lb)
- Packaged Volume: 0.033 m3 (1.17 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330012864
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A847C | |
| AGROTEKK | AR80652 | |
| AMERICAN PARTS | 93382 | |
| AMERICAN PARTS | 1307 | |
| ARMAFILT | L1314110 | |
| BIG A | 1307 | |
| BIG A | 93382 | |
| CATERPILLAR | 3I0379 | |
| COOPERS | AEM2060 | |
| DELUXE | 619AIR | |
| DELUXE | 618AIR | |
| FORD | 9576P145756 | |
| FREIGHTLINER | DNP145756 | |
| GPC | FC2163 | |
| GUARDIAN | G145755 | |
| GUARDIAN | G145756 | |
| GUD | ADG783 | |
| HESCO | AR80652 | |
| HITACHI | AR80652 | |
| JOHN DEERE | AR80652 | |
| JOHN DEERE | AR76766 | |
| KRALINATOR | LA945 | |
| LOESING | 022039 | |
| LOESING | 22039 | |
| NELSON | 70308N | |
| NELSON | 84736S | |
| NEW HOLLAND | 279613 | |
| NUTECH | S1962 | |
| OLSSONS I ELLOS AB | AR80652 | |
| ORENSTEIN & KOPPEL | 1467370 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 911817 | |
| UNITED ENGINE LIFE | 250D39 | |
| UNITED ENGINE LIFE | 250D39S | |
| VAPORMATIC | VPD7102 | |
| VMC | AF145756 | |
| WALGAHN-MOTORENTECHN | 810843 | |
| WALGAHN-MOTORENTECHN | 00810843 | |
| WARTSILA | L1314110 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HITACHI LX150-2 | - | LOADER WHEELED | - | JOHN DEERE 6081 | - |
| HITACHI LX150-2 | - | LOADER WHEELED | - | JOHN DEERE 6076 | - |
| HITACHI LX150E-2 | - | LOADER WHEELED | - | JOHN DEERE 6081 | - |
| JOHN DEERE 4555 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6076T | - |
| JOHN DEERE 4555 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6076A | - |
| JOHN DEERE 4640 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6466A | - |
| JOHN DEERE 4650 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6466A | - |
| JOHN DEERE 4755 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6076T | - |
| JOHN DEERE 4755 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6076A | - |
| JOHN DEERE 4840 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6466A | - |
| JOHN DEERE 4850 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6466A | - |
| JOHN DEERE 4955 | - | TRACTOR | 4000 SERIES | JOHN DEERE 6076A | - |
| JOHN DEERE 560D | - | SKIDDER | - | - 560D | - |
| JOHN DEERE 560D | - | SKIDDER | - | JOHN DEERE 6081 | - |
| JOHN DEERE 644G | - | LOADER WHEELED | 600 SERIES | - 644G | - |
| JOHN DEERE 644G | - | LOADER WHEELED | - | JOHN DEERE 6076 | - |
| JOHN DEERE 644G | - | LOADER WHEELED | - | JOHN DEERE 6076A | - |
| JOHN DEERE 748G | - | LOADER | - | JOHN DEERE 6076 | - |
| JOHN DEERE 748G II | - | LOADER | - | JOHN DEERE 6081 | - |
| JOHN DEERE 748G II | - | SKIDDER | - | JOHN DEERE 6081T | - |
| JOHN DEERE 748G III | - | SKIDDER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 748G III | - | SKIDDER | 700 SERIES | - 748G III | - |
| JOHN DEERE 7722 | - | COMBINE | - | JOHN DEERE 6466A | - |
| JOHN DEERE 850C | - | DOZER TRACKED | - | JOHN DEERE 6081T | - |
| JOHN DEERE 8820 | - | COMBINE | - | JOHN DEERE 6466A | - |
| JOHN DEERE 9400 | - | COMBINE | 9000 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 9500 | - | COMBINE | 9000 SERIES | JOHN DEERE 6076H | - |
| JOHN DEERE 9500W | - | COMBINE | - | - 9500W | - |
| JOHN DEERE 9600 | - | COMBINE | - | - 9600 | - |
| JOHN DEERE 9600 | - | COMBINE | 9000 SERIES | JOHN DEERE 6076H | - |
| JOHN DEERE 9940 | - | COTTON PICKER | - | JOHN DEERE 6466T | - |
| JOHN DEERE 9950 | - | COTTON PICKER | - | JOHN DEERE DTA466 | - |
