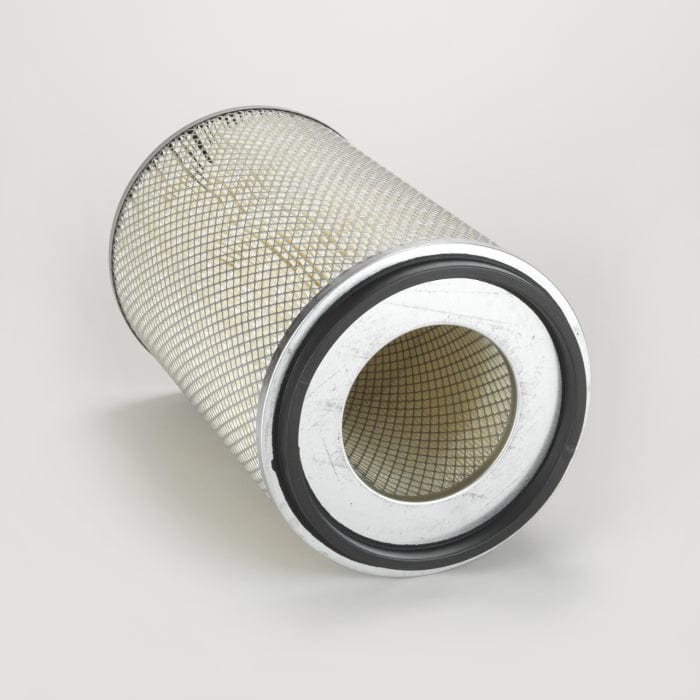

Air Filter, Primary Round - Donaldson P145704
Air Filter, Primary Round - Donaldson P145704
Regular price
£42.86
Regular price
Sale price
£42.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P145704
Air Filter, Primary Round| Outer Diameter | 9.22 inch (234.1 mm) |
| Inner Diameter | 4.84 inch (123 mm) |
| Length | 15.00 inch (381 mm) |
| Overall Length | 15.50 inch (393.7 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 234.1 mm (9.22 inch)
- Inner Diameter: 123 mm (4.84 inch)
- Length: 381 mm (15.00 inch)
- Overall Length: 393.7 mm (15.50 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.250 m (10.00 inch)
- Packaged Width: 0.245 m (9.80 inch)
- Packaged Height: 0.413 m (16.50 inch)
- Packaged Weight: 2.581 kg (5.69 lb)
- Packaged Volume: 0.026 m3 (0.94 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421310090
- UPC Code: 742330012833
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1123C | |
| ALCOA MARINE | KA1631 | |
| AMERICAN MOTORS CORPORATION | SFA5704P | |
| AMERICAN MOTORS CORPORATION | AE22110 | |
| AMERICAN MOTORS CORPORATION | KA1631 | |
| AMERICAN PARTS | 93398 | |
| ASAHI | KA1620 | |
| ASAHI | KA1652 | |
| ASAHI | KA1580 | |
| ATLAS | 2914500200 | |
| ATLAS | 2900534500 | |
| BIG A | 93398 | |
| CATERPILLAR | 9Y6831 | |
| CATERPILLAR | 3I0376 | |
| CATERPILLAR | 3I1433 | |
| CONTINENTAL | PCA570 | |
| COOPERS | AEM2580 | |
| CUMMINS | 425360 | |
| CUMMINS | AR90516 | |
| DIAMOND | DX3852 | |
| DRESSER | 6001813300 | |
| EXMAN | SFA5704P | |
| EXMAN | AE22110 | |
| FAMEL | FR1419 | |
| GPC | FC344 | |
| GUARDIAN | G817210 | |
| KOMATSU | 6691807211 | |
| KOMATSU | 6691807211P | |
| KOMATSU | 6691807212 | |
| KOMATSU | 6691807210 | |
| KOMATSU | 6691807210P | |
| KOMATSU | 6691807212P | |
| KOMATSU | 6001812310 | |
| KOMATSU | 6001813300 | |
| KOMATSU | 6001813300 | |
| KOMATSU | 6691817210 | |
| KOMATSU | 6691817212P | |
| KOMATSU | 14401B5610 | |
| KOMATSU | 1440165610 | |
| KRALINATOR | LA489 | |
| MISFAT | 787500 | |
| MISFAT | 0787500 | |
| NELSON | 70241N | |
| NELSON | 84960S | |
| NELSON | 145704 | |
| NELSON WINSLOW | 145704 | |
| NUTECH | N1550 | |
| ORENSTEIN & KOPPEL | 101148 | |
| P.B.R. | AI3285 | |
| POSTAS | HF1442 | |
| PRO MATCH | 9Y6831 | |
| ROMAN | R3004 | |
| TEREX | 101148 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686944 | |
| VMC | AF145704 | |
| WALGAHN-MOTORENTECHN | 810840 | |
| WALGAHN-MOTORENTECHN | 00810840 | |
| WGB | SA369 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| KOMATSU D55S | - | DOZER TRACKED | - | - D55S | - |
| KOMATSU D55S-3 | - | DOZER TRACKED | - | - D55S-3 | - |
| KOMATSU D60 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D60P-3 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D60S-3 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D65A | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D65E-6 | - | DOZER TRACKED | - | - D65E-6 | - |
| KOMATSU D65P | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D65P-6 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D65PL-6 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D68E-1 | - | DOZER TRACKED | - | KOMATSU 6D125 | - |
| KOMATSU D75S | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D75S-2 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D75S-2 | - | DOZER TRACKED | - | CUMMINS NH220C | - |
| KOMATSU D75S-2 | - | DOZER TRACKED | - | CUMMINS NH220C1 | - |
| KOMATSU D85A-12 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU D85A-12 | - | DOZER TRACKED | - | CUMMINS NH-220-CI-2L | - |
| KOMATSU D85E-12 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU DA85A-12 | - | DOZER TRACKED | - | CUMMINS NH220 | - |
| KOMATSU GD40-2 | - | GRADER | - | - GD40-2 | - |
| KOMATSU GD40-2 | - | GRADER | - | CUMMINS NH220 | - |
| KOMATSU GD705R-1 | - | GRADER | - | CUMMINS NH220C1-2AA | - |
| KOMATSU GD705R-2 | - | GRADER | - | CUMMINS NH220 | - |
| KOMATSU LW250L-1H | - | CRANE | - | KOMATSU S6D125-1N | - |
| KOMATSU NH220C-1 | - | ENGINE | - | - NH220C-1 | - |
| KOMATSU PC400LC-6 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D125E-2 | - |
| KOMATSU PC450-6 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D125E-2 | - |
| KOMATSU PC450LC-6 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D125E-2 | - |
