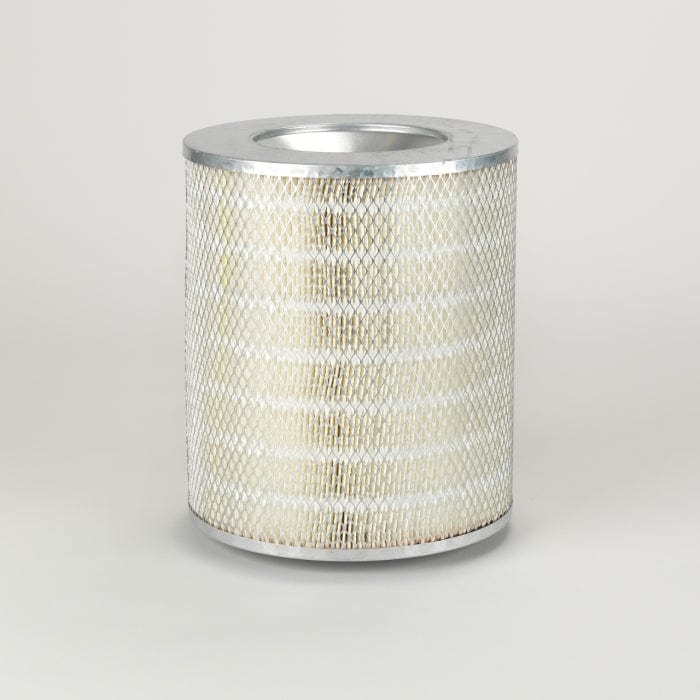

Air Filter, Primary Round - Donaldson P131348
Air Filter, Primary Round - Donaldson P131348
Regular price
£55.88
Regular price
Sale price
£55.88
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P131348
Air Filter, Primary Round| Outer Diameter | 10.41 inch (264.3 mm) |
| Inner Diameter | 6.04 inch (153.3 mm) |
| Length | 12.00 inch (304.7 mm) |
| Overall Length | 12.50 inch (317.4 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 264.3 mm (10.41 inch)
- Inner Diameter: 153.3 mm (6.04 inch)
- Length: 304.7 mm (12.00 inch)
- Overall Length: 317.4 mm (12.50 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.285 m (11.40 inch)
- Packaged Width: 0.283 m (11.30 inch)
- Packaged Height: 0.338 m (13.50 inch)
- Packaged Weight: 2.613 kg (5.76 lb)
- Packaged Volume: 0.028 m3 (1.01 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-03
- HTS Code: 8421310090
- UPC Code: 742330011607
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A596C | |
| AC DELCO | A1576C | |
| AMERICAN MOTORS CORPORATION | AE22050 | |
| AMERICAN MOTORS CORPORATION | SFA0215P | |
| AMERICAN PARTS | 93682 | |
| AMERICAN PARTS | 1173 | |
| AMERICAN PARTS | 94505 | |
| AMERICAN PARTS | 1598 | |
| ASAHI | KA1707 | |
| BIG A | 94505 | |
| BIG A | 1598 | |
| BIG A | 1173 | |
| BIG A | 93682 | |
| CASE/CASE IH | A147020 | |
| CASE/CASE IH | 627934C1 | |
| CASE/CASE IH | A47145 | |
| CATERPILLAR | 3I0260 | |
| CATERPILLAR | 3I0324 | |
| CHARDONNET | 7213134800 | |
| CONTINENTAL | PCA1541 | |
| COOPERS | AEM2034 | |
| CYCLONE | PMA120215 | |
| DRESSER | 627934C1 | |
| DRESSER | 629329C91 | |
| EXMAN | SFA0215P | |
| EXMAN | AE22050 | |
| FODEN | Y05876504 | |
| FORD | 9576P131348 | |
| FURUKAWA | 629329C91 | |
| GPC | FC342 | |
| GREYFRIARS | 1317A | |
| GUARDIAN | G120215 | |
| INTERNATIONAL | 674433C92 | |
| INTERNATIONAL | 1101441C91 | |
| INTERNATIONAL | 629329C91 | |
| INTERNATIONAL | 627934C1 | |
| KOMATSU | 443851056931 | |
| KOMATSU | 627934C1 | |
| KOMATSU | 3816279341 | |
| KOMATSU | 38510256931 | |
| KOMATSU | 0443851056931 | |
| KOMATSU | 3919763251 | |
| KOMDRESCO SA | 38510256931 | |
| KRALINATOR | LA1136 | |
| KRALINATOR | LA660 | |
| LOESING | 21057 | |
| LOESING | 021057 | |
| NELSON | 131348 | |
| NELSON | 70383N | |
| NELSON | 70804N | |
| NELSON WINSLOW | 131348 | |
| NISSAN/UD TRUCKS | 38510256931 | |
| NUTECH | S1322 | |
| ORENSTEIN & KOPPEL | 101184 | |
| P.B.R. | AI3260 | |
| PERRY | PAK999 | |
| QUAKER STATE | QSA1541 | |
| REFILCO | AF2682 | |
| TEREX | 101184 | |
| VMC | AF131348 | |
| WALGAHN-MOTORENTECHN | 00810747 | |
| WALGAHN-MOTORENTECHN | 810747 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 2390 | - | TRACTOR | 2000 SERIES | CASE/CASE IH 504BDT | - |
| KOMATSU 175C | - | LOADER TRACKED | - | CASE/CASE IH DT466 | - |
| KOMATSU 250E | - | SCRAPER | - | KOMATSU D505T | - |
| KOMATSU 530 | - | LOADER WHEELED | - | CASE/CASE IH DT414 | - |
| KOMATSU 530 | - | LOADER WHEELED | - | CASE/CASE IH DT466C | - |
| KOMATSU 530 | - | LOADER WHEELED | - | KOMATSU D505T | - |
| KOMATSU 530 | - | LOADER WHEELED | - | KOMATSU S6D105 | - |
| KOMATSU 530 | - | LOADER WHEELED | - | KOMATSU S6D105 | - |
| KOMATSU 530 | - | LOADER WHEELED | - | - 530 | - |
| KOMATSU 530C | - | LOADER WHEELED | - | KOMATSU D505T | - |
| KOMATSU E200 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT414 | - |
| KOMATSU E200 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT466 | - |
| KOMATSU E412 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT466 | - |
| KOMATSU JH65CN | - | LOADER WHEELED | - | - JH65CN | - |
| KOMATSU L175E | - | LOADER | - | - L175E | - |
| KOMATSU PC200 | - | LOADER TRACKED | - | KOMATSU D505T | - |
| KOMATSU PF530 | - | EXCAVATOR | - | KOMATSU S56D105 | - |
| KOMATSU TD12B | - | TRACTOR TRACKED | - | KOMATSU D505N | - |
| KOMATSU TD15B | - | DOZER TRACKED | - | CASE/CASE IH DT466 | - |
| KOMATSU TD15B | - | DOZER TRACKED | - | CASE/CASE IH DT407 | - |
| KOMATSU TD15C | - | TRACTOR TRACKED | - | - TD15C | - |
| KOMATSU TD15E | - | TRACTOR TRACKED | - | KOMATSU D505T | - |
| KOMATSU TD15E LT | - | TRACTOR TRACKED | STANDARD | - TD15E LT | - |
| KOMATSU W90-2 | - | LOADER WHEELED | - | KOMATSU S6D105-1 | - |
| KOMATSU W90-3 | - | LOADER WHEELED | - | KOMATSU S6D105-1 | - |
| KOMATSU WA90-2 | - | LOADER WHEELED | - | KOMATSU S6D105-1 | - |
| KOMATSU WA90-3 | - | LOADER WHEELED | - | KOMATSU S6D105-1 | - |
