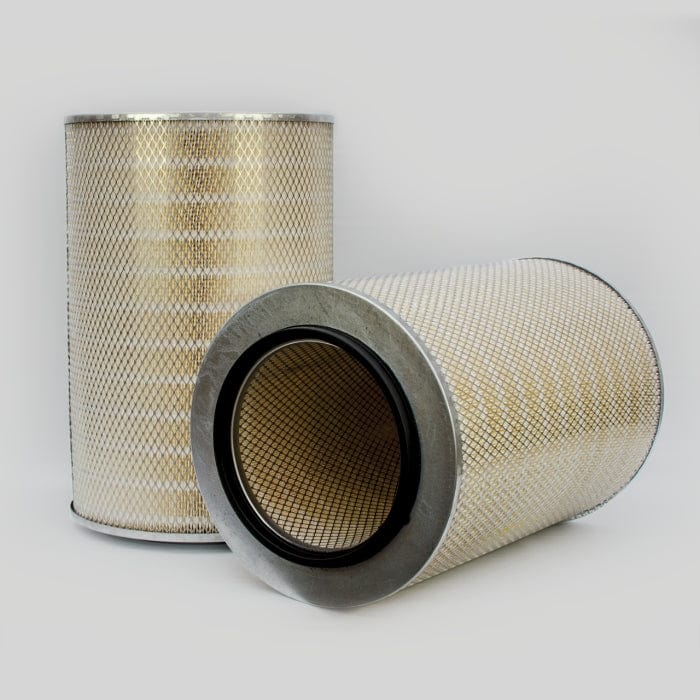

Air Filter, Primary Round - Donaldson P131343
Air Filter, Primary Round - Donaldson P131343
Regular price
£56.86
Regular price
Sale price
£56.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P131343
Air Filter, Primary RoundShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 307.2 mm (12.09 inch)
- Inner Diameter: 196 mm (7.72 inch)
- Length: 457.2 mm (18.00 inch)
- Overall Length: 469.9 mm (18.50 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: CASE/CASE IH 680587C2
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.305 m (12.20 inch)
- Packaged Width: 0.315 m (12.60 inch)
- Packaged Height: 0.482 m (19.29 inch)
- Packaged Weight: 4.224 kg (9.31 lb)
- Packaged Volume: 0.048 m3 (1.72 ft3)
Other Information
- Country of Origin: Czech Republic
- HTS Code: 8421310090
- UPC Code: 742330011591
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 1430 | |
| AMERICAN PARTS | 93637 | |
| BERGERAT MONNOYEUR | E2179 | |
| BIG A | 93637 | |
| BIG A | 1430 | |
| CASE/CASE IH | 680587C2 | |
| CASE/CASE IH | 906017SI | |
| CASE/CASE IH | 906017S1 | |
| CATERPILLAR | 3I0259 | |
| CUB CADET | 88998700 | |
| CYCLONE | PMA122424 | |
| DRESSER | 680587C1 | |
| DRESSER | 680587C2 | |
| DRESSTA | 867010100C2 | |
| ENMTP CPG | 7402024 | |
| FURUKAWA | 680587C2 | |
| GUARDIAN | G123059 | |
| GUARDIAN | G122424 | |
| HAVAM | HD8140 | |
| INTERNATIONAL | 686725C91 | |
| INTERNATIONAL | 681654C92 | |
| INTERNATIONAL | 681654C91 | |
| INTERNATIONAL | 88998700 | |
| INTERNATIONAL | 680587C2 | |
| INTERNATIONAL | 680587C1 | |
| INTERNATIONAL | 681654C01 | |
| KOEHRING | 21000026 | |
| KOEHRING | 21001054 | |
| KOMATSU | 680587C | |
| KOMATSU | 680587C1 | |
| KOMATSU | 680587C2 | |
| KOMDRESCO SA | 680587C | |
| KRALINATOR | LA719 | |
| KRALINATOR | LA719F | |
| KRALINATOR | LA784F | |
| LIEBHERR | 7402024 | |
| LOESING | 21054 | |
| LOESING | 021054 | |
| NELSON | 131343 | |
| NELSON | 70069N | |
| NELSON | 70560A | |
| NELSON WINSLOW | 131343 | |
| NUTECH | S1794 | |
| NUTECH | T1761 | |
| NUTECH | N1761 | |
| QUAKER STATE | QSA1575 | |
| REFILCO | AF2637 | |
| STEIGER | 906017S1 | |
| STEIGER | 906017T1 | |
| UNION 76 | 613 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686820 | |
| VMC | AF131343 | |
| WALGAHN-MOTORENTECHN | 00810745 | |
| WALGAHN-MOTORENTECHN | 810745 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH BEARCAT | - | TRACTOR | - | - BEARCAT | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT817C | - |
| KOMATSU 560 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DVT800 | - |
| KOMATSU 560B | - | LOADER WHEELED | - | CUMMINS KT19 | - |
| KOMATSU 570 | - | EARTH MOVING EQUIPMENT | - | - 570 | - |
| KOMATSU 570 | - | EARTH MOVING EQUIPMENT | - | CUMMINS VTA28 | - |
| KOMATSU 970 | - | DOZER TRACKED | - | CUMMINS VTA28 | - |
| KOMATSU GD555 | - | GRADER | - | CUMMINS NTA855 | - |
| KOMATSU TD25G | - | DOZER TRACKED | - | CUMMINS KT1150 | - |
| KOMATSU TD25G | - | DOZER TRACKED | - | CUMMINS KT19 | - |
| KOMATSU WA500-3 | - | LOADER WHEELED | - | CUMMINS M11 | - |
