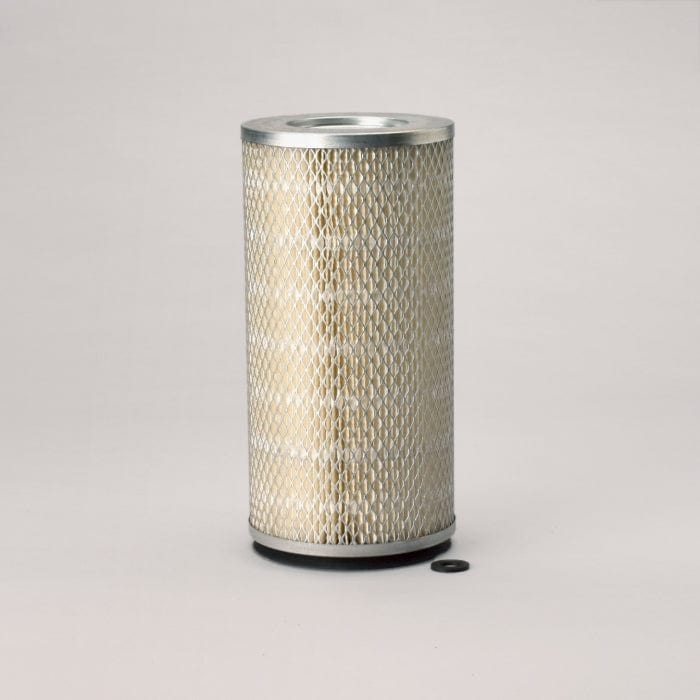

Air Filter, Primary Round - Donaldson P130766
Air Filter, Primary Round - Donaldson P130766
Regular price
£33.56
Regular price
Sale price
£33.56
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P130766
Air Filter, Primary Round| Outer Diameter | 6.09 inch (154.8 mm) |
| Inner Diameter | 3.48 inch (88.4 mm) |
| Length | 12.00 inch (304.8 mm) |
| Overall Length | 12.44 inch (315.9 mm) |
| Bolt Hole Diameter | 0.66 inch (16.76 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Primary Application | JOHN DEERE AR46481 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 154.8 mm (6.09 inch)
- Inner Diameter: 88.4 mm (3.48 inch)
- Length: 304.8 mm (12.00 inch)
- Overall Length: 315.9 mm (12.44 inch)
- Bolt Hole Diameter: 16.76 mm (0.66 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Primary Application: JOHN DEERE AR46481
- Type: Primary
- Style: Round
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.177 m (7.09 inch)
- Packaged Width: 0.177 m (7.09 inch)
- Packaged Height: 0.325 m (12.99 inch)
- Packaged Weight: 1.078 kg (2.38 lb)
- Packaged Volume: 0.011 m3 (0.38 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-04
- HTS Code: 8421310090
- UPC Code: 742330011348
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A576C | |
| AC DELCO | PC136 | |
| ALLIS-CHALMERS | 79008154 | |
| AMERICAN PARTS | 93926 | |
| AMERICAN PARTS | 902 | |
| BIG A | 902 | |
| BIG A | 93926 | |
| CATERPILLAR | 3I0233 | |
| CATERPILLAR | 9Y6820 | |
| COOP | AP106032 | |
| COOP | PMA106032 | |
| CROSLAND | 924 | |
| CYCLONE | PMA106032 | |
| DAEDONG | E710011081 | |
| DELUXE | 796AIR | |
| DELUXE | 796 | |
| DELUXE | AF796 | |
| EATON | 9003128 | |
| FIAT | 9985779 | |
| FIAT | 9885779 | |
| FORD | 9576P130766 | |
| FREIGHTLINER | DNP130766 | |
| GOULD | AP106032 | |
| GREYFRIARS | 1218A | |
| GRIMMER SCHMIDT | 12426191 | |
| GUARDIAN | G130766 | |
| HAVAM | HD7945 | |
| HESTAIR DENNIS | 6081921 | |
| HITACHI | 4484533 | |
| HITACHI | 4138076 | |
| HITACHI | L4138076 | |
| HURRICANE COMPRESSOR | 12426191 | |
| INDUCONTROL | AR258 | |
| INTRUPA | 83317 | |
| ISUZU | 5142151830 | |
| IVECO | 9985779 | |
| JOHN DEERE | AT65088 | |
| JOHN DEERE | AR46481 | |
| KRALINATOR | LA392 | |
| LINK BELT | KNH0150 | |
| LOESING | 21037 | |
| LOESING | 021037 | |
| MASSEY FERGUSON | 1030541M91 | |
| MASSEY FERGUSON | 1030542M91 | |
| NELSON | 84618S | |
| NKK | 4M1010 | |
| NUTECH | S9002 | |
| P.B.R. | AI3246 | |
| PERRY | PA796 | |
| POSTAS | HF1097 | |
| PRO MATCH | 9Y6820 | |
| SYSTEMS MATERIAL HANDLING | YT150022200 | |
| TRU-AIR | TA7405 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 686808 | |
| UNITED ENGINE LIFE | 250C151 | |
| UNITED ENGINE LIFE | U06032 | |
| VAPORMATIC | VPD7183 | |
| VMC | AF130766 | |
| WALGAHN-MOTORENTECHN | 810724 | |
| WALGAHN-MOTORENTECHN | 00810724 | |
| YALE | 150022200 | |
| YALE | 9003128 | |
| YALE | 900312807 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DAEDONG DK65 | - | TRACTOR | - | - DK65 | - |
| HITACHI EX100 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100-2 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100-3 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI EX100M | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI EX100WD | - | EXCAVATOR WHEELED | - | ISUZU 6BB1 | - |
| HITACHI EX120 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1T | - |
| HITACHI UH0357 | - | EXCAVATOR TRACKED | - | ISUZU 4BB1 | - |
| HITACHI UH04 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04-2 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04-5 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04-7 | - | EXCAVATOR COMPACT | - | ISUZU 4BD1 | - |
| HITACHI UH04-7 | - | EXCAVATOR COMPACT | - | ISUZU 6BD1 | - |
| HITACHI UH04-7 | - | EXCAVATOR COMPACT | - | ISUZU 4BD1T | - |
| HITACHI UH045-7 | - | EXCAVATOR TRACKED | - | ISUZU 6BD1 | - |
| HITACHI UH045-7 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04M | - | EXCAVATOR COMPACT | - | ISUZU 6BB1 | - |
| HITACHI UH04M-2 | - | EXCAVATOR COMPACT | - | ISUZU 6BB1 | - |
| HITACHI UH04M-5 | - | EXCAVATOR COMPACT | - | ISUZU 6BB1 | - |
| HITACHI UH04M-7 | - | EXCAVATOR COMPACT | - | ISUZU 6BD1 | - |
| HITACHI UH04S | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04S-2 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04S-5 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04SS | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04SS-2 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH04SS-5 | - | EXCAVATOR TRACKED | - | ISUZU 6BD1 | - |
| HITACHI UH053 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI UH053 | - | EXCAVATOR TRACKED | - | - UH053 | - |
| HITACHI UH055-7 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH063 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH07-3 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI WH073D | - | EXCAVATOR WHEELED | - | ISUZU 6BD1 | - |
| INGERSOLL RAND P185WJD | - | COMPRESSOR | - | JOHN DEERE 4239DL | - |
| JOHN DEERE 2520 | - | TRACTOR | 2000 SERIES | JOHN DEERE 4276D | - |
| JOHN DEERE 300D | - | BACKHOE LOADER | - | JOHN DEERE 4039D | - |
| JOHN DEERE 300D | - | BACKHOE LOADER | - | JOHN DEERE 4239D | - |
| JOHN DEERE 3020 | - | TRACTOR | 3000 SERIES | JOHN DEERE 4270D | - |
| JOHN DEERE 310C | - | BACKHOE LOADER | - | JOHN DEERE 4039T | - |
| JOHN DEERE 310C | - | BACKHOE LOADER | - | JOHN DEERE 4239DL | - |
| JOHN DEERE 310C | - | BACKHOE LOADER | - | JOHN DEERE 4239TL | - |
| JOHN DEERE 310C | - | BACKHOE LOADER | - | JOHN DEERE 3179D | - |
| JOHN DEERE 310C | - | BACKHOE LOADER | - | JOHN DEERE 4039D | - |
| JOHN DEERE 310C | - | BACKHOE LOADER | - | JOHN DEERE 4239D | - |
| JOHN DEERE 310D | - | BACKHOE LOADER | - | JOHN DEERE 3179D | - |
| JOHN DEERE 310D | - | BACKHOE LOADER | - | JOHN DEERE 4039D | - |
| JOHN DEERE 310D | - | BACKHOE LOADER | - | JOHN DEERE 4239D | - |
| JOHN DEERE 315C | - | BACKHOE LOADER | - | JOHN DEERE 4039D | - |
| JOHN DEERE 315C | - | BACKHOE LOADER | - | JOHN DEERE 4039D | - |
| JOHN DEERE 315C | - | BACKHOE LOADER | 300 SERIES | JOHN DEERE 4039D | - |
| JOHN DEERE 315CH | - | BACKHOE LOADER | 300 SERIES | - 315CH | - |
| JOHN DEERE 315CH | - | BACKHOE LOADER | - | - 315CH | - |
| JOHN DEERE 315D | - | BACKHOE LOADER | - | JOHN DEERE 4239D | - |
| JOHN DEERE 315D | - | BACKHOE LOADER | - | JOHN DEERE 4039D | - |
| JOHN DEERE 3830 | - | WINDROWER | 3000 SERIES | JOHN DEERE 4039T | - |
| JOHN DEERE 410B | - | BACKHOE LOADER | - | JOHN DEERE 4219D | - |
| JOHN DEERE 410C | - | BACKHOE LOADER | - | JOHN DEERE 4276D | - |
| JOHN DEERE 410D | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 410D | - | BACKHOE LOADER | 400 SERIES | JOHN DEERE 4045T | - |
| JOHN DEERE 410D | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 415 | - | BACKHOE LOADER | - | - 415 | - |
| JOHN DEERE 415B | - | BACKHOE LOADER | - | - 415B | - |
| JOHN DEERE 500 | - | BACKHOE LOADER | - | JOHN DEERE - | - |
| JOHN DEERE 500A | - | BACKHOE LOADER | - | - 500A | - |
| JOHN DEERE 500B | - | BACKHOE LOADER | - | - 500B | - |
| JOHN DEERE 500C | - | BACKHOE LOADER | - | - 500C | - |
| JOHN DEERE 510B | - | BACKHOE LOADER | - | JOHN DEERE 4276D | - |
| JOHN DEERE 510D | - | BACKHOE LOADER | - | JOHN DEERE 4045T | - |
| JOHN DEERE 515B | - | BACKHOE LOADER | - | - 515B | - |
| RAYGO SK40 | - | DRILLING EQUIPMENT | - | CATERPILLAR 3406 | - |
| SUMITOMO 2600F | - | EXCAVATOR | - | MITSUBISHI 4D31T | - |
| SUMITOMO 260F | - | EXCAVATOR | - | MITSUBISHI 4D31T | - |
| SUMITOMO 2650F | - | EXCAVATOR | - | MITSUBISHI 4D31T | - |
| SUMITOMO 45U | - | EXCAVATOR | - | MITSUBISHI 4D31C | - |
