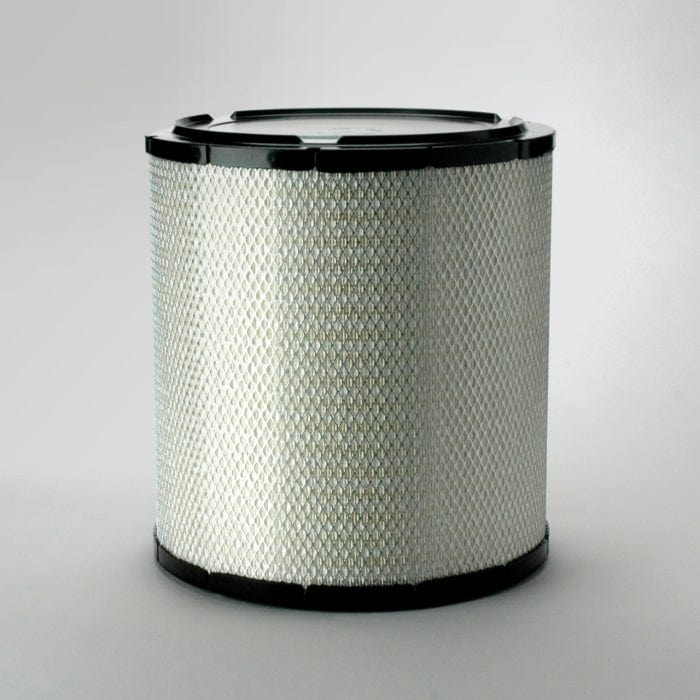

Air Filter, Primary Radialseal - Donaldson P538007

Air Filter, Primary Radialseal - Donaldson P538007

£84.18
£84.18
Sale Sold out
Shipping calculated at checkout.

Donaldson P538007

Air Filter, Primary Radialseal
Outer Diameter 14.28 inch (362.8 mm)
Inner Diameter 8.98 inch (228.1 mm)
Length 15.03 inch (381.8 mm)
Efficiency 99.9
Efficiency Test Std ISO 5011
Primary Application CATERPILLAR 1236855
Type Primary
Style Radialseal
Brand RadialSeal™
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 362.8 mm (14.28 inch)
  • Inner Diameter: 228.1 mm (8.98 inch)
  • Length: 381.8 mm (15.03 inch)
  • Efficiency: 99.9
  • Efficiency Test Std: ISO 5011
  • Primary Application: CATERPILLAR 1236855
  • Type: Primary
  • Style: Radialseal
  • Brand: RadialSeal™
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.373 m (14.90 inch)
  • Packaged Width: 0.373 m (14.90 inch)
  • Packaged Height: 0.415 m (16.60 inch)
  • Packaged Weight: 4.231 kg (9.32 lb)
  • Packaged Volume: 0.060 m3 (2.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-03
  • HTS Code: 8421310090
  • UPC Code: 742330081709

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 94470
CATERPILLAR 1236855
CATERPILLAR 1327169
GPC FC2174
KRALINATOR LA1768
LOESING 20787
LOESING 020787
UNITED CENTRAL INDUSTRIAL SUPP 332668
VMC AF538007

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 776D - DUMP TRUCK 700 SERIES CATERPILLAR 3508TAE -
CATERPILLAR 777 - DUMP TRUCK 700 SERIES CATERPILLAR D348 -
CATERPILLAR 777D - DUMP TRUCK 700 SERIES CATERPILLAR 3508TAE -
CATERPILLAR 777F - DUMP TRUCK 700 SERIES CATERPILLAR C32TA ACERT -
CATERPILLAR 854G - DOZER WHEELED 800 SERIES CATERPILLAR 3508TA -
