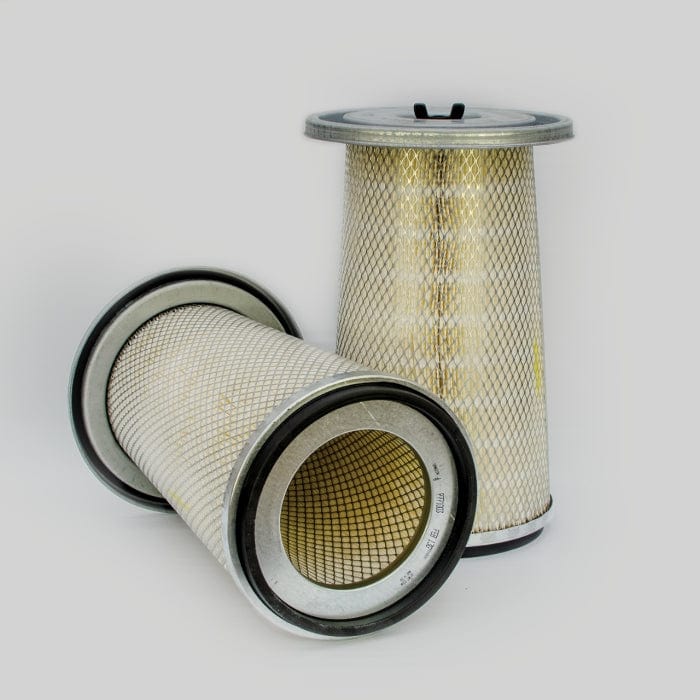

Air Filter, Primary Konepac - Donaldson P771003
Air Filter, Primary Konepac - Donaldson P771003
Regular price
£84.20
Regular price
Sale price
£84.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P771003
Air Filter, Primary Konepac| Outer Diameter | 8.67 inch (220.1 mm) |
| Inner Diameter | 5.20 inch (132.2 mm) |
| Length | 15.00 inch (381 mm) |
| Minor OD | 7.06 inch (179.3 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Cone |
| Brand | Konepac™ |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 220.1 mm (8.67 inch)
- Inner Diameter: 132.2 mm (5.20 inch)
- Length: 381 mm (15.00 inch)
- Minor OD: 179.3 mm (7.06 inch)
- Efficiency: 99.9
- Efficiency Test Std: ISO 5011
- Type: Primary
- Style: Cone
- Brand: Konepac™
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.263 m (10.50 inch)
- Packaged Width: 0.268 m (10.70 inch)
- Packaged Height: 0.443 m (17.70 inch)
- Packaged Weight: 2.531 kg (5.58 lb)
- Packaged Volume: 0.032 m3 (1.15 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-03
- HTS Code: 8421310090
- UPC Code: 742330047330
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | A1165C | |
| AMERICAN PARTS | 94609 | |
| AMERICAN PARTS | 94608 | |
| BIG A | 94609 | |
| BIG A | 94608 | |
| CATERPILLAR | 3I1422 | |
| CATERPILLAR | 3I2026 | |
| CHRYSLER | T0546789 | |
| FORD | 9576P775100 | |
| FORD | 9576P771003 | |
| FREIGHTLINER | DNP771003 | |
| GUARDIAN | G138427 | |
| KRALINATOR | LA1186 | |
| MACK | 2191P775100 | |
| MACK | 81SD44 | |
| MACK | 2191P138427 | |
| NELSON | 87329N | |
| NELSON | 84329N | |
| PACCAR | P775100USEP771003 | |
| REFILCO | AF6608 | |
| RENAULT VI | 5010039162 | |
| RENAULT VI | 5000546789 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 689072 | |
| VMC | AF771003 | |
| WALGAHN-MOTORENTECHN | 00811513 | |
| WALGAHN-MOTORENTECHN | 811513 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MACK CM400 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK CM400 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK CS200 | 1985 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK CS200 | 1985 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK CS250 | 1985 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK CS300 | 1986 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK CS300 | 1990 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
| MACK MS200 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
| MACK MS200 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK MS250 | 1984 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK MS250 | 1988 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
| MACK MS300 | 1984 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.12 | - |
| MACK MS300 | 1984 | TRUCK | MID-LINER | RENAULT VI MIDR 06.20.30 | - |
| MACK MS300 | 1991 | TRUCK | MID-LINER | RENAULT VI MIDR 06.02.26 | - |
